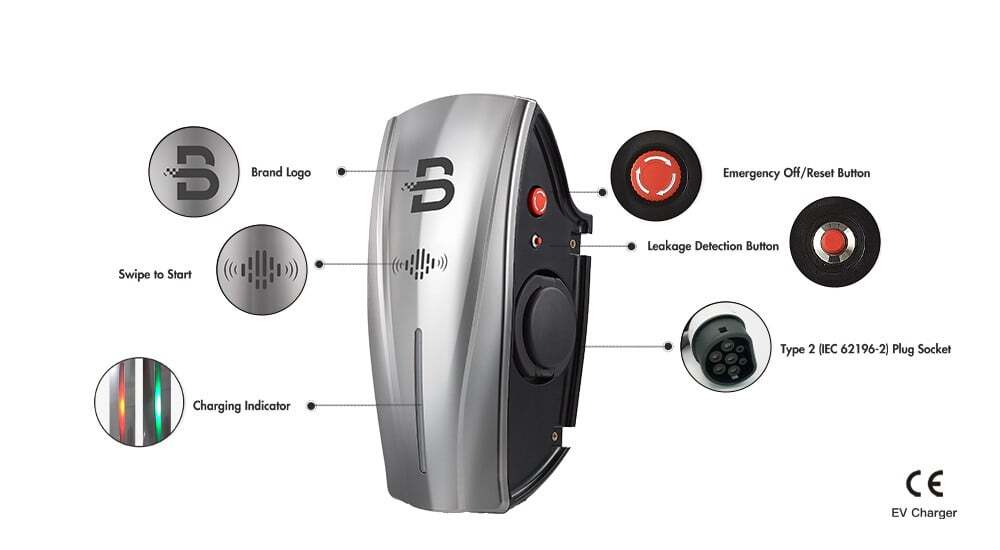

22kW Smart EV Charger with DLB Function 3-Phase Home Charging Station with Socket

BENY Electric Smart EV Charger with Type 2 (IEC 62196-2) Plug Socket 3-Phase 32Amp 22kW IP65 Electric Vehicle Wallbox Charger CE Certified

Highlights :

  • Dynamic load balancing
  • OCPP (optional)
  • Type 2 (IEC 62196-2) plug socket without cable
  • Full protection
  • RFID card to charge automatically
  • Smart APP (optional)
  • 5 years warranty
  • rohs
  • CE-Certified icon
  • ocpp 1 6 icon
  • BENY DLB
  • BENY Electric DLB box 1

Dynamic Load Balancing Function

For safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.

  • BENY Electric EV CHARGER FOR RESIDENTIAL USE

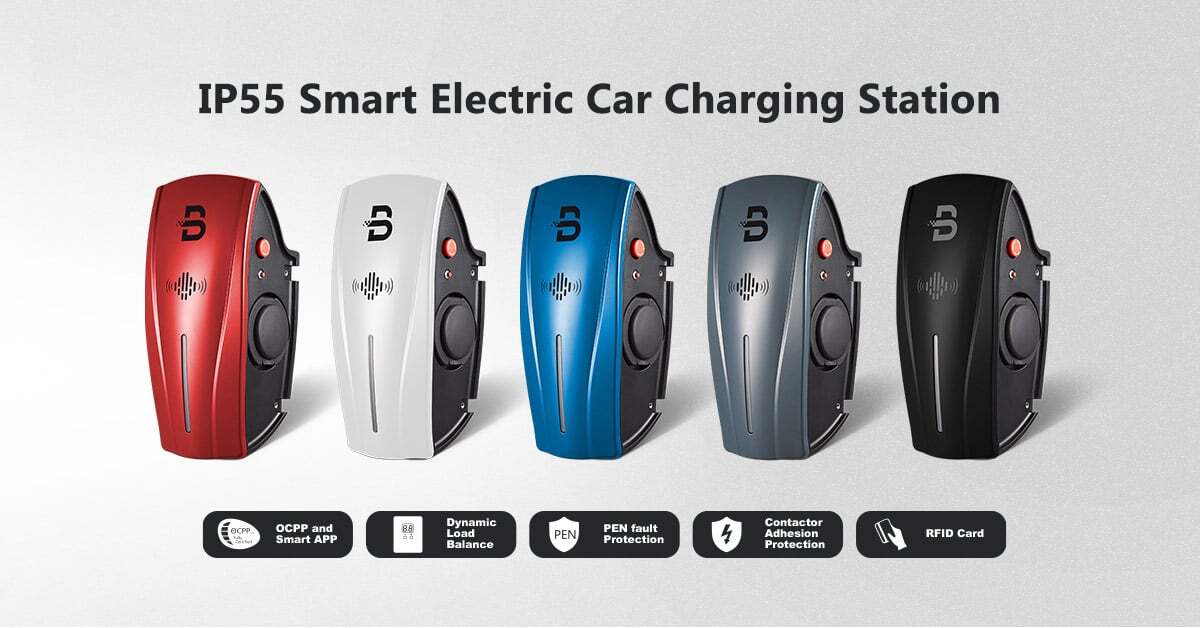

A MODE 3 (IEC61851-1) FAST EV CHARGER FOR RESIDENTIAL USE

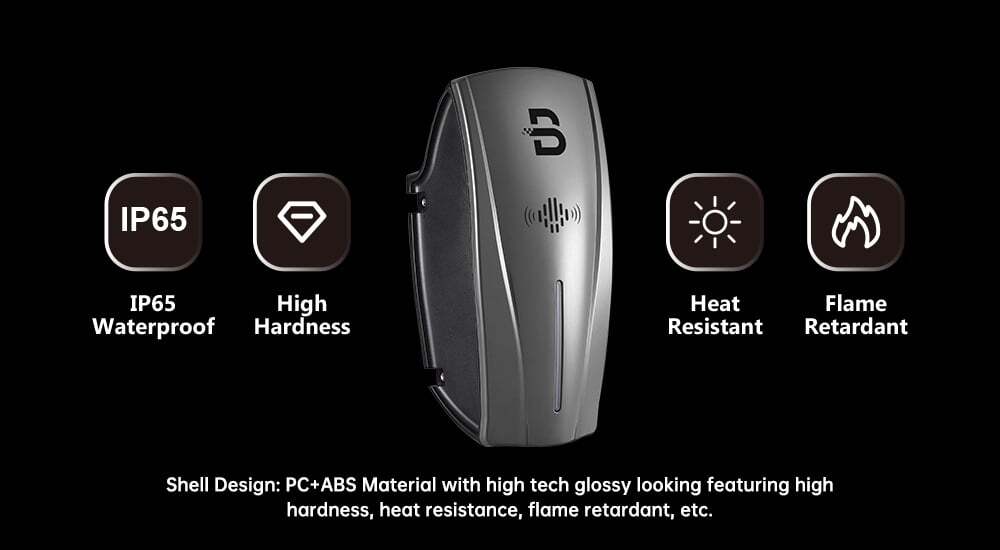

The smart EV charger has an IP55 patented design case for outdoor and indoor use.



The type 2 plug socket makes highly flexible and compatible with all electric vehicles.



The EV charger output can be adjusted from 16 amps (11kW) all the way up to 32 amps (22kW)

  • EV charger APP

SMART APP FOR OPTION

Real-time monitoring



Scheduled charging



Multiple function settings

FEATURES/ADVANTAGES

  • ev charger zjbeny bcp

RFID card to charge automatically



Type 2 (IEC 62196-2) plug socket without cable



  • Built-in Type B RCD for leakage protection
  • Over Temperature Sensor
  • Clip-on Grid Current Sensor
  • LED ring status indication
  • With emergency stop switch

SPECIFICATION

Electrical
Charging capacity 1.3kW – 7.4kW / 11kW – 22kW
Charge mode Mode 3 (IEC 61851-1)
Output power Selectable 1-phase or 3-phase, 230-400V

16 A to 32 A, 50-60 Hz

Connector options Fixed cable type 2 plug or type 2 Socket
Fixed cable length 6m (18 ft)
Cable Entry Rear or bottom
Protection and certification
Ground fault detection Patent Design 0.3mA AC
Build-in RCD Type B RCD
Enclosure ratings IP55
Housing fire ratings V0
Operating temperature -25 – +55
Compliance IEC61851-1, IEC61851-21-2,

IEC61000-4

CE EMC EU/2014

CE Low Voltage EU/2014/35

Certificate CE
Connectivity
Authorization Auto-start standard / RFID card option
Status indication LED ring
Charging protocol OCPP 1.6J option
WLAN communication Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing Polycarbonate
Dimension W169 x H380 x D151 mm
Weight With 6m Cable: 6.2KG

With Socket: 3.5KG

Mounting Wall or Pole
