Demystifying EV Charging: Level 2 vs Level 3 Charging Explained

Electric vehicles (EVs) are reshaping our travel, but when it comes to the levels of EV charging, things can get a tad confusing. Let’s unravel this, shall we?

What are the different EV charging levels?

Level 1 EV Charging

Level 1 charging is the slowest, using a standard wall outlet. Picture charging your phone – it’s convenient but not the quickest way. It’s great for overnight charging or if you’re not in a hurry. A full charge can take 24 hours or more, depending on your EV’s smaller batteries or larger capacity.

Level 2 EV Charging

Level 2 steps up the game. It’s like swapping out a garden hose for a firehose – more power, faster charging. Using a 240V source (like your clothes dryer outlet), it can deliver about 12 to 80 miles of range per hour of charging. It’s a popular choice in public spaces, office buildings, and for home installation if you’re an EV driver who’s always on the go.

Level 3 EV Charging

Now, Level 3, or DC Fast Charging, is where things get exciting. This is the quickest way to juice up your EV. DC fast chargers use direct current (DC) instead of alternating current (AC) and are the fast charger type, charging much faster than Level 2. Think of a pit stop in a race – in just 20 minutes, you can get 60 to 80 miles of range. However, not all EVs can handle this power, so compatibility is key.

Related Post: Level 3 Charger 101: All You Need to Know

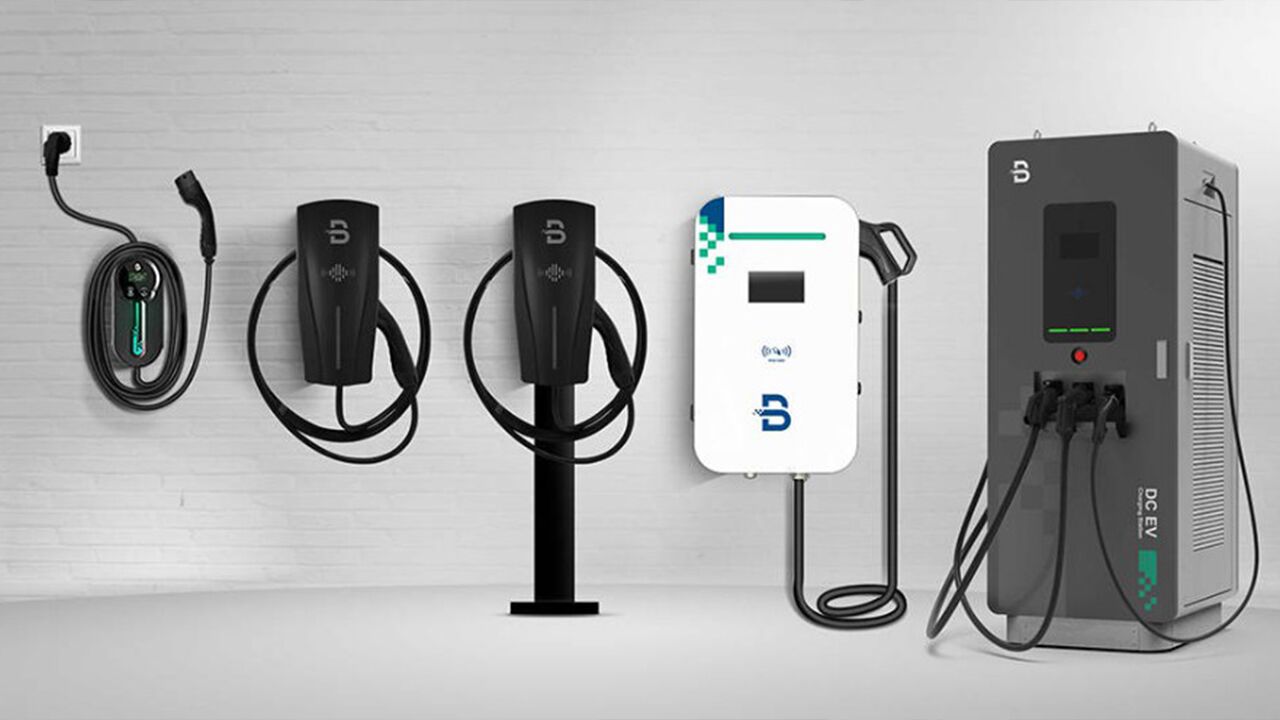

A Detailed Comparison: Level 1 vs Level 2 vs Level 3 Charging

Power Requirements

An in-depth examination of the electrical demands for EV charging reveals considerable variances across the different levels. Level 1 charging, operating within a modest range of 1.4 to 1.9 kW, epitomizes a low-intensity power utilization. This level, predominantly drawing from a standard 120-volt AC outlet, prevalent in North American households, is optimized for minimal grid impact. While it offers widespread accessibility, its efficacy in rapid charging scenarios is somewhat limited, positioning it as a viable solution for extended charging periods, typically overnight.

Contrastingly, Level 2 charging represents a substantial escalation in power usage, spanning from 3.3 kW to 19.2 kW. This enhancement not only facilitates accelerated charging capabilities but also preserves an equilibrium between efficiency and energy expenditure. Predominantly operating on a 240-volt AC supply, akin to that used by substantial domestic appliances such as clothes dryers, Level 2 charging stations are adept for more frequent usage scenarios. They serve as an optimal intermediary for both residential and communal charging infrastructures, proffering a harmonious blend of expedited charging proficiency and judicious energy consumption, without imposing excessive demands on local power grids.

Level 3 charging, alternatively known as DC Fast Charging, involves sophisticated electric vehicle supply equipment and enters the realm with an imposing range of 50 kW to a formidable 350 kW. This substantial escalation in power transcends the more moderate outputs of Levels 1 and 2, delivering a rapid influx of energy capable of elevating an EV’s battery charge from a depleted state to 80% within a strikingly brief duration. Such a robust power influx necessitates advanced charging apparatus and a sturdy electrical framework, typically found in specialized EV charging stations. The elevated kW ratings of Level 3 chargers not only signify remarkably swift charging intervals but also introduce a heightened demand on the electrical grid. This necessitates meticulous strategic planning and implementation, particularly in public venues and bespoke charging sites, to ensure an efficient and sustainable integration into the existing electrical infrastructure.

Speed of Charging

The velocity at which electric vehicles (EVs) are recharged exhibits a pronounced disparity across the spectrum of available charging levels, profoundly influencing the duration required for drivers to resume their journeys. Level 1 charging operates in a decidedly unhurried manner, typically infusing the EV’s battery with a range extension of approximately 2 to 5 miles per hour of charge. This sedate pace is amenable to scenarios where time constraints are minimal, rendering it an apt choice for nocturnal recharging or for motorists with modest daily travel distances. However, its leisurely nature renders it suboptimal for scenarios necessitating rapid energy replenishment or for users with more substantial vehicular usage demands on a daily basis.

Transitioning to Level 2 charging, we observe a marked escalation in charging expediency, rendering it a more pragmatic option for a broader swath of EV users. The charge rates here fluctuate between 12 and 80 miles of range per hour, catering to an extensive array of charging scenarios. For a prototypical EV equipped with a 60 kWh battery, the attainment of a full charge via a Level 2 charger may span a timeframe ranging from 4 to 10 hours, contingent upon the specific attributes of both the charging station and the vehicle in question. This level of charging is particularly conducive to nocturnal charging at residential locations, as well as protracted parking durations at commercial establishments or workplaces, striking a harmonious equilibrium between charging speed and general accessibility. This confluence of attributes has bolstered its adoption in both private and communal charging environments.

Level 3 charging, or DC Fast Charging, represents the zenith of charging speed within the current technological landscape. Capable of endowing an EV with an impressive range of 60 to 80 miles in a mere 20-minute interval, this level has revolutionized charging dynamics for long-distance EV travel and time-sensitive charging circumstances. Achieved through a formidable power output ranging from 50 kW to an astounding 350 kW, this rapid charging capability, however, necessitates consideration of the potential ramifications on battery longevity and overall efficiency, particularly with sustained usage at these elevated intensities. Furthermore, the compatibility of EVs with the upper echelons of Level 3 charging varies, necessitating a thorough understanding of one’s vehicle specifications when contemplating this charging option. Notwithstanding these factors, for motorists in urgent need of swift battery replenishment, Level 3 charging stations stand as a paragon of efficiency and convenience in the realm of EV charging infrastructure.

Compatibility with EV Types

The congruence of electric vehicles (EVs) with diverse charging tiers is predominantly contingent on the intrinsic charging technology of the vehicle and the specific charging protocol it adheres to. Contemporary EVs are largely congruent with Level 1 and Level 2 charging systems, employing the ubiquitous J1772 connector prevalent in the North American region. This widespread adoption renders these charging levels eminently accessible to a substantial proportion of EV users.

Conversely, Level 3 charging, also known as DC Fast Charging, ushers in a heightened level of complexity regarding vehicular compatibility. This echelon of charging infrastructure, encompassing Tesla Superchargers, CHAdeMO, and the Combined Charging System (CCS), is engineered to cater to distinct vehicle categories and models. For instance, Tesla Superchargers are specifically designed for integration with Tesla models, although the provision of adapters extends compatibility to other EV variants. CHAdeMO connectors, predominantly utilized by Japanese manufacturers like Nissan and Mitsubishi, signify a specific charging standard. Concurrently, the CCS standard is witnessing an ascending trajectory of adoption amongst European and American automotive manufacturers, distinguished by its dual-plug configuration that facilitates both AC and DC charging modalities.

For EV proprietors or potential purchasers, a salient consideration is the imperative to comprehend the nuanced charging capacities and prerequisites of their respective vehicles. It is noteworthy that not all EVs are equipped to harness the expedited charging capabilities proffered by Level 3 systems. Furthermore, the charging velocity and efficiency may exhibit substantial variance, contingent on the vehicle’s charging rate receptivity and the underlying battery architecture. As such, a thorough verification of the vehicle’s specifications and its congruence with varying charger types is indispensable prior to reliance on a specific charging infrastructure. This informed approach is vital for EV owners to fully leverage the spectrum of available charging alternatives, thereby enabling astute planning for their vehicular excursions, particularly in the context of utilizing public charging networks.

Application Scenarios

The deployment contexts for each echelon of electric vehicle (EV) charging solutions manifest a spectrum as varied as the charging systems themselves, each intricately tailored to align with the distinct lifestyles and requisites of EV operators. Level 1 charging, harmonious with conventional domestic power outlets, is optimally suited for residential usage, particularly advantageous for EV proprietors who can allocate extended durations for vehicle charging, typically spanning overnight periods. This level equally serves as an efficacious solution in workplace environments, where vehicles may remain parked for protracted intervals, thus facilitating a gradual, consistent energy replenishment throughout the workday.

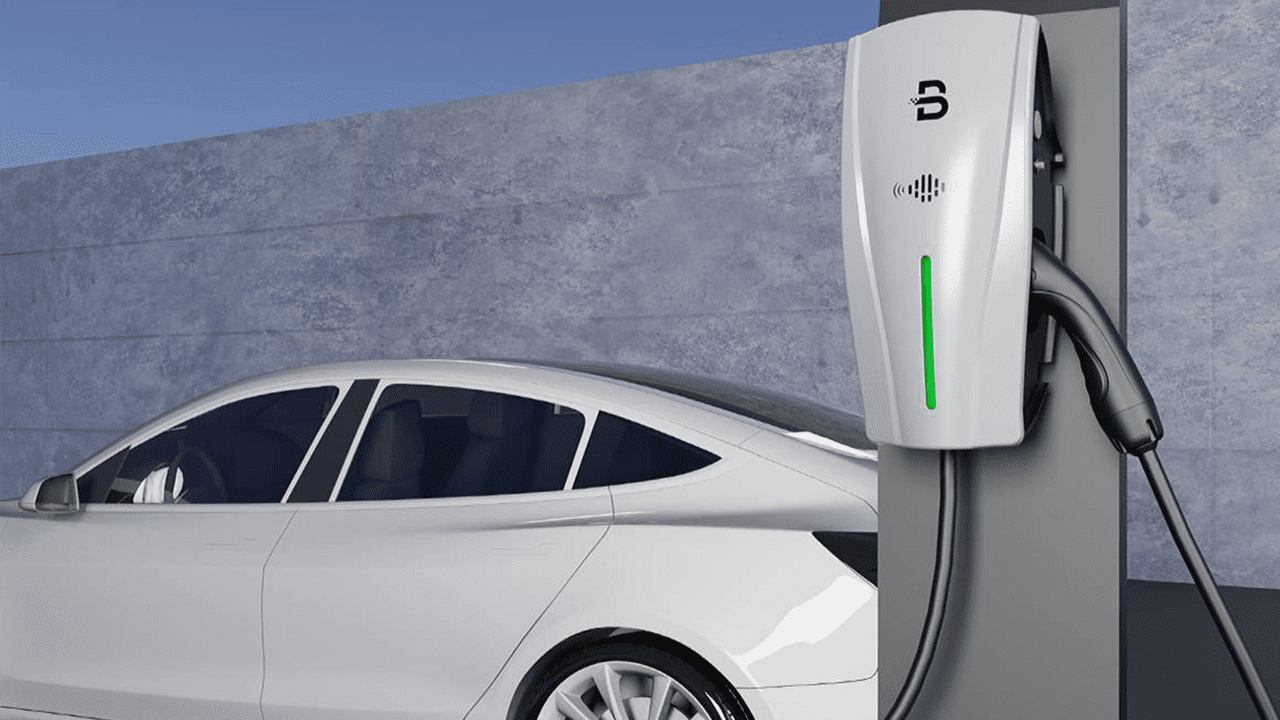

Advancing to Level 2 charging, we encounter an augmented velocity in energy transfer, presenting a multifaceted application potential. Residentially, Level 2 charging stations offer an expedited and convenient charging experience for EV owners, effectively curtailing the charging duration in comparison to Level 1 solutions. From a commercial perspective, Level 2 charging installations are quintessential for public places such as shopping malls, hospitality venues, and parking facilities, where vehicles typically remain parked for several hours. This duration is conducive to attaining a significant charge, surpassing the temporal limitations inherent in Level 1 charging solutions, yet without necessitating the ultra-rapid charging capabilities of higher levels.

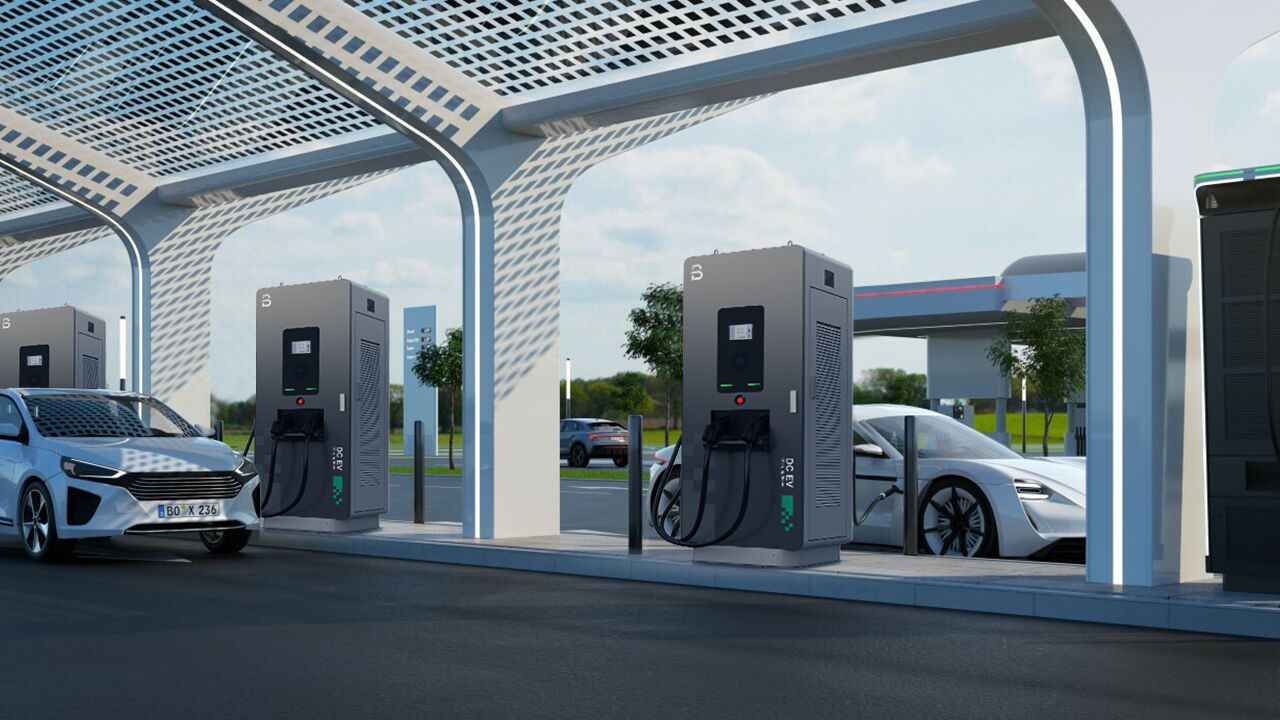

Conversely, Level 3 charging, the next level of charging, distinguished by its accelerated charging proficiency, becomes indispensable in scenarios where time constraints are paramount. These charging stations are predominantly positioned in public charging infrastructures, such as along major thoroughfares, within urban conglomerates, and in locales necessitating rapid vehicular throughput. Ideal for motorists embarking on extensive journeys requiring swift battery replenishment, Level 3 charging stations also play a pivotal role in urban environments where residential charging options may be limited. Strategic placements in high-traffic areas like commercial centers, metropolitan cores, and gas stations render Level 3 chargers an integral element of the public EV charging network, offering a rapid energy infusion for EVs and substantially enhancing the practicality of EV usage in time-sensitive situations.

Now, let’s take a look at a summarized comparison of these charging levels to better understand their differences and applications.

Can EV Chargers Be Interchanged?

The interchangeability of EV chargers is a nuanced subject. While physical adaptability is possible, each charging level – Level 1, Level 2, and DC Fast Charging (Level 3) – adheres to distinct electrical standards and protocols. Adapters can enable a connection between different charger types and EVs; however, they do not alter the inherent charging capabilities of the vehicle or the charger. For instance, a Level 2 charger cannot expedite its charge rate to match that of a Level 3 charger merely through the use of an adapter. Similarly, a Level 3 charger, when connected to a vehicle only compatible with Level 1 or Level 2 charging, will not exceed the maximum charging rate that the vehicle’s onboard charger can handle. This limitation underscores the importance of understanding the specifications and capabilities of both the EV and the charging equipment. It’s imperative for EV owners to recognize that while physical connectivity may be achieved, the electrical compatibility and safety considerations play a critical role in the effective and efficient use of EV charging infrastructure.

How to Choose the Charging Level For Your Business?

Determining the most suitable charging level for your EV charging business entails a meticulous evaluation of client requirements and the specific capabilities of your facility. In environments where clientele typically linger for prolonged durations, such as hospitality venues or retail complexes, the implementation of Level 2 charging infrastructure is advisable. These systems, necessitating adept installation by accredited electricians, provide an equilibrium of efficiency and user convenience, accommodating a broad spectrum of EV models. Characteristically operating at an elevated amperage compared to their Level 1 counterparts, these stations are engineered for compatibility with a standard EVSE (Electric Vehicle Supply Equipment) connector, thereby offering adaptability across a diverse range of charging apparatus.

Conversely, in settings where expeditious service is paramount – exemplified by roadside amenities or quick-service dining establishments – the adoption of Level 3 charging facilities, specifically DCFC (Direct Current Fast Charging) systems, becomes imperative. Opting for such advanced charging solutions entails a significant investment in specialized equipment and infrastructural enhancements, frequently encompassing comprehensive electrical system augmentations conducted by professional electricians. Nonetheless, the rapid charging prowess of Level 3 stations, capable of efficiently servicing an array of battery packs across various EV models, substantially elevates the convenience quotient for customers. It is incumbent upon property owners to conduct a thorough analysis of the EV models predominantly utilized by their clientele, ensuring that the selected charging station is congruent with the prevalent connector standards and battery pack specifications. This proactive approach is instrumental in maximizing the return on investment while adeptly fulfilling the charging needs of EV users.

Learn the commercial EV charging station cost for your business: How Much Does a Commercial EV Charging Station Cost?

Conclusion

Choosing between Level 2 vs Level 3 charging boils down to balancing speed, compatibility, and your specific needs. While Level 3 offers the fastest charge, it’s not always necessary or compatible. Level 2 strikes a good balance for most EV drivers and is more widely compatible.
