Staying Updated: Solar Rapid Shutdown Requirements and Industry Standards

Once upon a time, not too long ago, the concept of a solar panel gracefully sitting atop homes was a rare sight. But as the sun continued to rise and set, a silent revolution took root. It brought with it a surge of solar panels, transforming rooftops into sources of clean, renewable energy. Yet with this transformation came a new set of challenges and responsibilities, particularly concerning safety during emergencies. It’s here, in the intricate dance between innovation and safety, that solar rapid shutdown (RSD) devices became the unsung heroes.

The idea was simple but crucial: to de-energize the solar system’s electrical conductive parts, creating a safer environment for first responders during a crisis. With RSD, the passion for solar energy’s boundless potential met the solemn duty to protect those who protect us.

Imbued with the essence of care and foresight, these technological guardians stand vigilant. And it all begins with understanding the essence of solar rapid shutdown— its purpose, its workings, and its necessity in our ongoing solar adventure.

Historical Context of Solar Rapid Shutdown Requirements

In the tapestry of solar energy history, the threads of rapid shutdown requirements are woven carefully through the fabric of time. Initially, the concept seemed emergent, a response triggered by a series of fiery trials where solar systems and safety concerns collided. Soon, the National Electrical Code (NEC) began to script the destiny of solar installations across the United States, dictating that only a swift and effective rapid shutdown function could reconcile the twin narratives of progress and protection.

Over time, akin to an evolving tale, these requirements have undergone numerous revisions—each a response to the ever-changing landscape of solar technology and a testimony to the industry’s commitment to upholding fire safety. Reflective of a broader context, similar stories have unfolded across the globe, with each nation scripting its unique set of rules in the global anthology of solar regulations.

The solar rapid shutdown requirements instruct a first step towards harmonizing technology and safety. In the fluttering pages of electrical code books, the legacy of these requirements remind us where we’ve been, and, more importantly, where we must strive to go.

Different Solar Rapid Shutdown Requirements in the World

United States: NEC Standards

The United States has adopted specific language regarding solar rapid shutdown in sections 690.12 of the National Electrical Code (NEC).

• NEC 2014 set the initial groundwork for rapid shutdown, requiring a shutdown to reduce system voltage to safe levels within 10 feet of the array.
• NEC 2017 (Section 690.12) went further by mandating that the rapid shutdown system should de-energize both the AC and DC conductors within an array boundary to no more than 30 volts within 30 seconds of actuation.
• NEC 2020 updated these requirements yet again, specifying that the limit should be applied to all conductive parts within the array boundary and extending the boundaries to 1-foot outside the array. Also, a more strict standard for inside the array was established, requiring power to be cut to 80 volts within 30 seconds of actuation.
• NEC 2023‘s requirements for rapid shutdown haven’t seen significant alterations from the 2020 version. Just like in the NEC 2020, Section 690.12(B)(2)(2) of the NEC 2023 continues to mandate that within a photovoltaic array boundary, DC conductors must be controlled to not exceed 80 volts within 30 seconds. However, the 2023 update includes certain clarifications to enhance understanding and implementation. A notable addition is Exception No. 2, which specifically exempts structures that are not enclosed and detached, like carports and trellises, and arrays not attached to buildings that terminate on the exterior buildings and PV system circuits installed in accordance with 230.6, from adhering to the requirements set out in Section 690.12.

Europe: International Electrotechnical Commission (IEC)

Europe relies on various standards set forth by the IEC, which does not specify rapid shutdown procedures as explicitly as the NEC. They focus primarily on the safe installation and operation of PV systems.

• IEC 60364-7-712 is the section of the IEC standard that addresses safety for solar power installations, providing guidance on protective measures to be taken for electrical shock and fire protection.

While direct rapid shutdown requirements are not uniformly applied as in the U.S., each member state leverages IEC standards to form their own specific regulations responding to fire safety and emergency responder concerns.

Australia: AS/NZS 5033

The AS/NZS 5033 standard in Australia details requirements for the installation of PV arrays and incorporates safety protocols that include rapid shutdown processes.

• It mandates that PV systems have readily accessible isolation points. This includes both DC isolator switches and switchgear capable of cutting off both AC and DC supply.
• Moreover, new standards have also started being introduced that focus on module-level rapid shutdown to improve fire safety measures.

Canada: Canadian Electrical Code (CEC)

Canada’s solar installation standards are influenced by the CEC, which is similar to the NEC.

• Rapid shutdown requirements in the CEC are such that control devices must facilitate the shutdown of power to all solar panels within the array quickly and safely.
• The standard is comparable to the NEC 2014, where it requires the voltage to be reduced to safe levels within a certain perimeter around the array within 30 seconds.

Germany: VDE Standards

Germany addresses rapid shutdown under VDE-AR-E 2100-712.

• This standard requires a rapid shutdown of the PV generator for firefighter safety.
• The VDE has prioritized module-level shutdown, mirroring the progression toward finer control that has been seen in the updates to the NEC.

Japan: Japanese Industrial Standards (JIS)

Japan follows the JIS C 8955 for the design of PV systems which includes measures for safety like rapid shutdown.

• The JIS includes guidelines for mechanical and electrical installation, emphasizing the importance of emergency response safety.
• Specific requirements for the rapid shutdown are less defined than in the NEC but follow the general principle that systems should be able to be rapidly de-energized in emergency situations.

United Kingdom: British Standards (BS)

The UK regulations do not currently include explicit rapid shutdown requirements like those seen within the NEC. Instead, they adhere to:

• BS 7671 also known as the IET Wiring Regulations, emphasizing the safety of electrical installations including solar PV.
• The use of DC and AC isolators is advocated, and while not specified in terms of rapid shutdown, these isolators serve the same function when manually operated.

By acquainting oneself with the various rapid shutdown standards and requirements around the world, solar installers and policymakers can ensure that solar energy systems are not only productive and efficient but also adhere to global best practices that prioritize the safety of individuals and the integrity of installations.

Solar Rapid Shutdown Compliance: What Solar Installers Need to Know

Navigating the vast ocean of solar rapid shutdown requirements can be as daunting as captaining a ship through uncharted waters. For installers in the United States, the National Electrical Code serves as the North Star, guiding their path with the NEC’s safety protocols—from the well-defined array boundary to the prescribed rapid shutdown switch, each detail acting as a beacon ensuring safe passage.

But it is not just about adherence. It is about understanding the spirit of the code; it thrives on the balance between efficiency and safety. The NEC details that from the solar array to the ground level, every component should ensure that voltage levels within the PV system circuits are curtailed within seconds. Such expediency is not just a requirement; it is the essence of trust between homeowners and the hands that weave the solar tapestry upon their rooftops.

Moreover, with the advent of NEC 2017 and its successor NEC 2020 and 2023, even the solar inverter—one of the core components of a photovoltaic system—has been brought under the ambit of regulations that dictate its role in the rapid shutdown process. Installers must stay abreast of these evolving standards, for they are the keepers of the next page in our ongoing solar chronicles.

Technical Requirements for Rapid Shutdown

Voltage and Distance Limitations

In the realm of electric currents, where solar energy takes physical form, two factors reign supreme—voltage and distance. The national electric codes across lands speak in unison when they put forth the decree that voltage within a PV array needs to fall within certain thresholds beyond the array boundary, ensuring the safety of conductive parts.

Taking the United States’ National Electrical Code (NEC) as an example, NEC 2020 introduced specific requirements for rapid shutdown procedures in PV systems. It required that within 30 seconds of shutdown initiation, the voltage in the system must drop significantly. This reflects a universal urgency in safeguarding against electrical hazards, especially for emergency responders.

Time Requirements for Shutdown Procedures

Tick-tock, goes the clock, and in the heartbeat of a few seconds, the array should power down. The time requirements for shutdown procedures are scripted with the utmost urgency—a testament to the seriousness with which fire safety is taken. Installers need to install systems that react almost instantaneously, a quick draw in the face of danger.

Taking the United States’ National Electrical Code (NEC) as an example, NEC 2020 introduced specific and stringent requirements for rapid shutdown procedures in photovoltaic (PV) systems. These regulations underscore the urgency of reducing voltage swiftly in emergency scenarios, particularly to safeguard emergency responders. According to these requirements, PV systems on or within buildings must reduce conductor voltage to 30 volts or less within 30 seconds of shutdown initiation. In addition, the voltage of controlled conductors must also be brought down to 80 volts or less within the same timeframe. Moreover, NEC 2020 imposes a new limitation on controlled conductors located within the boundary, requiring them to be no more than 1 foot in length. These measures collectively reflect a global emphasis on mitigating electrical hazards, especially in emergency situations.

Equipment for Complying with Rapid Shutdown Requirements

String Inverters and Module-Level Power Electronics (MLPE)

The tale of compliance often leads us to the heroes of the story—string inverters paired with Module-Level Power Electronics (MLPE), such as optimizers and module level rapid shutdown. These string inverters, responsible for the efficient transformation of direct current (DC) from solar panels into the alternating current (AC) used in our homes, are ingeniously paired with MLPEs. Devices such as power optimizers or module-level rapid shutdown solutions are attached to each solar panel, not only maximizing their output but also equipping each panel with the ability to rapidly diminish its voltage to a safe level in emergencies, as the rapid shutdown capabilities mandated by the NEC. This dynamic duo becomes the cornerstone of safety in residential and smaller commercial installations, ensuring that each panel individually adheres to safety standards. They are champions of compliance, bringing peace of mind to rooftops across the land.

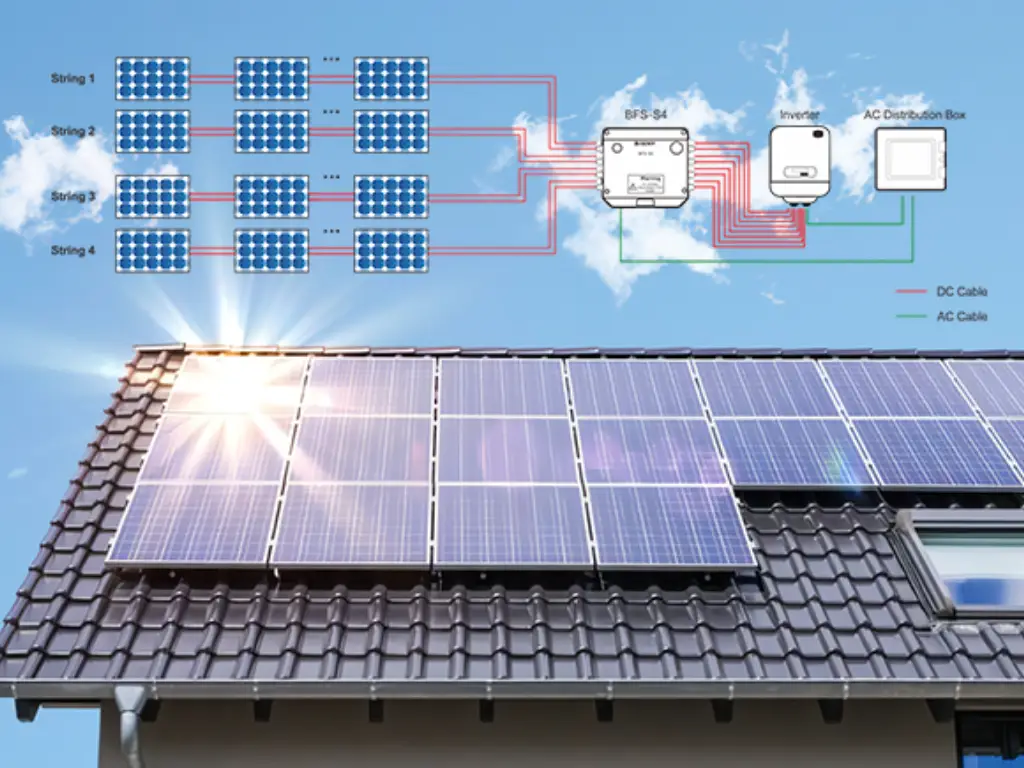

Central Inverters and External String Level Rapid Shutdown Switch

For larger ensembles of solar panels, central inverters stand as the central commanders, handling the higher power outputs from numerous panels. These central inverters collaborate with external string level rapid shutdown switches, a robust and reliable technology that, when triggered, can orchestrate a swift and coordinated cessation of electrical activity across multiple panels. This setup, ideal for larger installations, mirrors a symphony where each string of panels is a section of the orchestra, being skillfully managed to not only perform efficiently but also to halt in unison upon the conductor’s cue, aligning with the rapid shutdown requirements of the NEC. This harmonious integration of technology ensures that large-scale solar installations operate with both the might of efficiency and the mindfulness of safety.

Microinverters

The microinverter is a maestro of a different kind—a maestro for each module, turning each solar panel into a standalone performer capable of shutting down in a moment’s notice. These compact devices ensure that the rapid shutdown process is as granular as it can get, offering not just compliance but also innovation in solar rapid shutdown solutions.

DC Disconnectors

When the moment of hazard control system activation arrives, DC disconnectors are the ones that elegantly sever the bond between stored energy and the potential for danger. These simple, yet effective devices stand guard at the heart of a PV system, capable of bringing a hushed stillness to the pulsing DC power.

How to Install Rapid Shutdown Systems?

The saga of solar installation is replete with meticulous steps, each one to be performed with the precision of a conductor leading an orchestra. To install rapid shutdown systems is to engage with a process that demands a confluence of expertise, diligence, and an unwavering commitment to code compliance. Here is a table about the requirements and procedures necessary for a successful and compliant rapid shutdown system installation.

Installation Step	Key Considerations
1. Understanding NEC Requirements	Familiarize with NEC 690.12 for rapid shutdown; ensure clear understanding of safety and operational standards.
2. Selecting Equipment	Choose appropriate MLPEs for string inverters or external shutdown switches for central inverters, compatible with the solar PV system and NEC compliant.
3. Detailed Planning	Layout the solar array, positioning of inverters and shutdown devices for optimal functionality and compliance.
4. Review Manufacturer’s Manuals	Thoroughly study the installation guides for each component for correct installation and connection procedures.
5. Installation	Attach MLPEs to each panel (for string inverters) or integrate shutdown switch (for central inverters), ensuring proper wiring and connections.
6. Testing and Commissioning	Test the system to confirm correct functioning and NEC-compliant rapid shutdown activation.
7. Documentation and Labeling	Complete documentation and label all components as per NEC requirements for future reference and maintenance.
8. Inspection and Approval	Have the installation inspected and approved by a qualified electrical inspector to confirm code compliance.

Accompanied by detailed manuals and intricate electrical safety requirements, the pathway to installing rapid shutdown systems is neither hidden nor riddled with enigmatic puzzles. It simply asks for an adherence to the scripture of solar codes—combination of NEC requirements and the manufacturer’s specifications.

Should All Solar Systems Satisfy NEC 2023 for RSDs?

As the wheel of time turns toward NEC 2023, the query that plagues the minds of many is whether all solar systems should fall in line with the latest rendition of rapid shutdown requirements. The truth, while anchored in regulation, drifts in the direction of prudence. Solar systems, burgeoning across the breadth of rooftops, beckon for a uniformity in safety that would make compliance a matter less of if and more of when.

The NEC, in its wisdom, seldom backpedals on the road to heightened safety measures. Hence, installers and homeowners alike should consider NEC 2023 not as a distant prospect but as the imminent standard to which they will inevitably adhere. Indeed, the solar rapid shutdown requirements are not a mere hoop to jump through but a covenant of safety – a silent promise between the glow of the sun and the sanctity of human lives.

Meet All Your Rapid Shutdown Needs with Beny

Beny is a beacon in the realm of solar safety. With an array of rapid shutdown device solutions at its disposal, Beny stands ready to aid the valiant installers in their quest for compliance. Be it the stately solar rapid shutdown switch, including module level rapid shutdown and string level rapid shutdown, or the microinverters and DC disconnectors, Beny’s arsenal is designed to meet the rigors of national electric code requirements.

No longer does one need to traverse the four corners of the globe for compliant equipment. Whether it’s a single service encounter or the selection of an entire system, Beny’s offerings come listing a promise—fulfillment of all your rapid shutdown needs, in accordance with the highest standards of safety and reliability.

Future Trends in Solar Safety and Regulations

When we gaze into the crystal ball of solar’s future, we envision a trajectory where safety and regulations trace the ascending path of innovation. As technologies evolve with the brilliance of a solar flare, so too will the standards that govern them. We stand at the precipice of change, where the rapid shutdown capabilities of tomorrow promise to be even more integrated, intuitive, and indispensable.

The future trends whisper of Building Integrated Photovoltaics (BIPV), where every solar tile or shingle may host its own ultra-refined rapid shutdown functionality. A future bright with the potential for transmitters that communicate not just across modules but holistically with smart grids, integrating safety with a seamless energy flow.

Conclusion

Thus, we arrive at the end of our tale, but it is far from the final chapter in the ongoing saga of solar rapid shutdown requirements and industry standards. This narrative is eternally penned by the laws of electrical code, refined by the tides of technology, and emboldened by the spirit of innovation. Each installer, responder, and homeowner plays a part in this living document of solar advancement, where safety weaves through the fabric of progress like a golden thread, creating a tapestry that hangs under the sun’s vigilant gaze.

As custodians of the world’s collective solar narrative, let us all continue to strive not only for harnessing the boundless energy of our star but for the steadfast protection of those who seek its warmth. For it is in this diligent pursuit of knowledge, compliance, and safety that we truly honor the resplendent legacy of solar energy.
