EV Charging Cables: The B2B Buyer’s Guide to Specifications, Certifications, and Supplier Selection

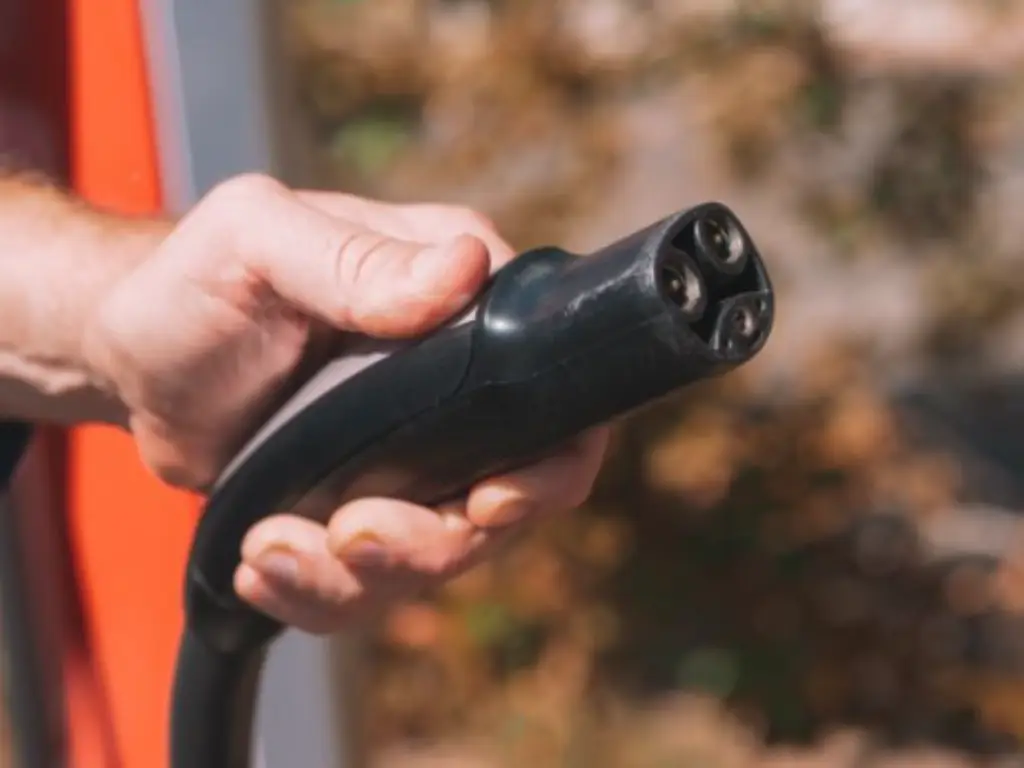

EV Charging Cable Connector Types by Region

There is no universal EV charging cable. The connector standard your market uses determines everything from compatibility to certification requirements — and the landscape is shifting faster than most procurement timelines account for. Here is how the major markets break down.

Connector Standards for North America

For two decades, the SAE J1772 (Type 1) connector has been the North American standard for AC charging. Its five-pin design delivers single-phase power up to 19.2 kW and remains the baseline for Level 2 home and workplace charging.

That baseline is now shifting. In late 2023, SAE published the Technical Information Report for J3400 — the standardized version of Tesla’s North American Charging Standard (NACS) connector (SAE International, 2024). Unlike J1772, which handles only AC, J3400 supports both AC and DC fast charging through a single, compact plug. Between May 2023 and early 2024, Ford, GM, Rivian, Hyundai, Volkswagen Group, and virtually every other major automaker announced adoption timelines, with native J3400 ports arriving on 2025 model-year vehicles. For DC fast charging, CCS1 (Combined Charging System, Combo 1) remains the current infrastructure standard at up to 350 kW, though its long-term role alongside J3400 is still evolving.

For a procurement manager, the implication is straightforward: cables and EVSE purchased today need a J3400 transition plan. Adapters bridge the gap in the short term, but native J3400 compatibility is the procurement criterion that will matter in 2026 and beyond.

Connector Standards for Europe and the UK

Europe’s regulatory environment has produced a far more unified connector landscape. Type 2 (IEC 62196-2, also called Mennekes) is the legally mandated AC standard across the EU and UK. Its seven-pin design supports both single-phase (up to 7.4 kW) and three-phase (up to 43 kW) charging, making it the default choice for home, workplace, and public AC installations. For DC fast charging, CCS2 — which adds two DC power pins to the Type 2 base — is the dominant standard, delivering up to 350 kW and backed by EU regulation requiring CCS2 on all new public DC chargers since 2020.

The procurement takeaway is that Europe’s standardization simplifies sourcing: Type 2 and CCS2 cover virtually every use case. The only nuance worth watching is the UK’s post-Brexit UKCA mark, which runs parallel to CE and may eventually diverge in technical requirements.

Other Global Standards — CHAdeMO, GB/T, and Beyond

Outside North America and Europe, two additional standards matter for buyers with Asia-Pacific supply chains or customer bases. Japan’s CHAdeMO, still present on older Nissan and Mitsubishi models, is being gradually replaced by ChaoJi — a next-generation standard jointly developed by China and Japan under the GB/T 20234.4 framework, with a theoretical maximum of 900 kW. China’s domestic market operates entirely on GB/T: GB/T 20234.2 for AC and GB/T 20234.3 for DC, with a 2024 revision expanding ultra-fast charging capabilities. For procurement teams sourcing from or selling into these markets, connector compatibility is not optional. It is a customs clearance requirement.

Power Ratings and Cable Specifications Explained

Charging speed is not about the cable alone. It is a chain, and the weakest link sets your limit. Understanding the relationship between kilowatts, amperage, and phases is the foundation of specifying the right cable for the job.

Understanding Kilowatts, Amperage, and Charging Speed

The core relationship is straightforward: power (kW) equals voltage (V) multiplied by current (A), divided by 1,000. A 32-amp cable on a 240-volt single-phase circuit delivers 7.4 kW. The same 32-amp cable on a 400-volt three-phase circuit delivers 22 kW. But here is the constraint that consumer guides rarely mention: the vehicle’s onboard charger (OBC) is the true gatekeeper. If the OBC is rated at 7.4 kW, it does not matter whether the cable and wall box support 22 kW — the car will never draw more than 7.4 kW.

For procurement, this has a direct commercial implication. Specifying a cable rated higher than the charger and vehicle combination is safe and future-proof. Specifying one rated lower creates a thermal risk. EV charging is classified as a continuous load — three or more hours at sustained maximum current — which means the cable must be rated for at least 125% of the expected continuous load per NEC Article 625 (US) and IEC 61851-1 (international) (UL Solutions). A 32-amp continuous load therefore requires a cable rated for at least 40 amps.

Single-Phase vs. Three-Phase: What It Means for Cable Selection

A single-phase connection uses three conductors (line, neutral, protective earth). A three-phase connection uses five (three lines, neutral, protective earth). The practical difference: on a 32-amp circuit, single-phase delivers 7.4 kW, while three-phase delivers 22 kW — three times the power through the same current.

For sourcing strategy, the key fact is downward compatibility: a three-phase cable works on a single-phase installation, but the reverse is not true. For distributors stocking inventory or fleet operators planning for mixed sites, specifying three-phase cables as the default SKU eliminates incompatibility risk and reduces the number of line items to manage. The cost premium is modest; the flexibility gain is substantial.

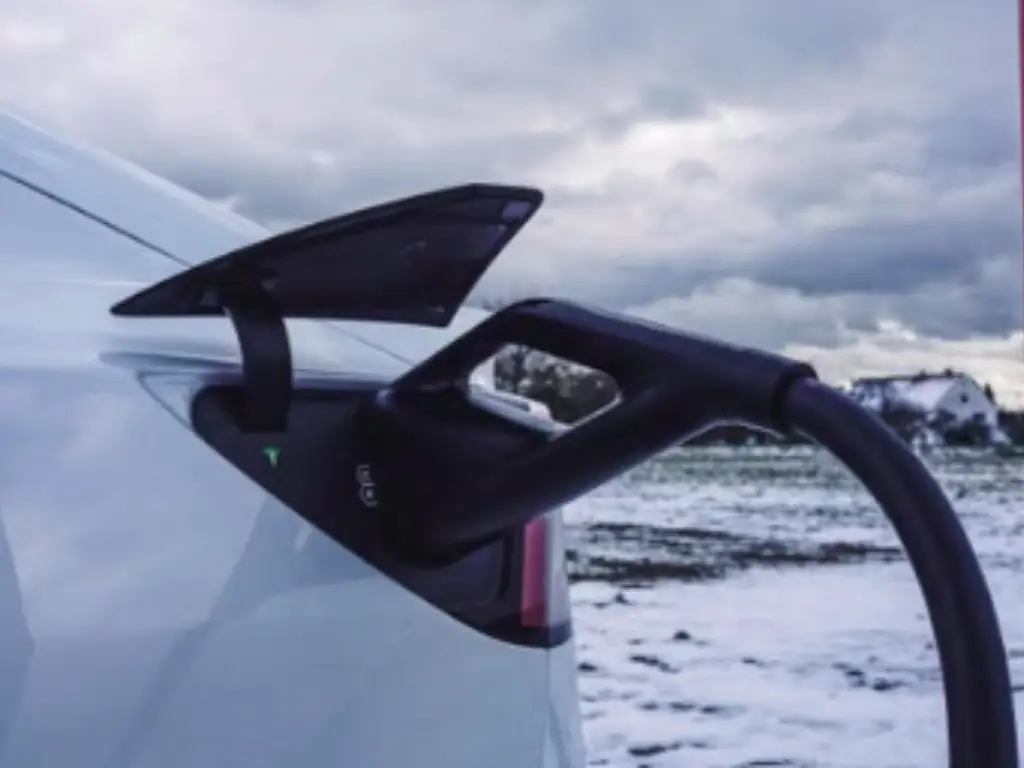

Cable Length: How Far Is Too Far?

Standard EV charging cables range from 3 meters to 10 meters for residential use and up to 15 meters for public charging stations. Longer is not always better. Every additional meter increases voltage drop — and at runs beyond 10 meters, that drop can push the charging voltage below the vehicle’s acceptance threshold, slowing the charge or tripping safety systems. BS 7671 (UK Wiring Regulations) requires voltage drop to stay within 3% for lighting circuits and 5% for other circuits including EV charging, a limit that typically forces an upsize from 6 mm² to 10 mm² conductors beyond approximately 20 meters of cable run.

For most procurement scenarios, 5 to 7.5 meters covers standard installations. For public or fleet sites with unpredictable parking layouts, 10 meters provides insurance without excessive weight and cost. Coiled (spiral) cables offer compact storage at the expense of durability — the tighter bend radius accelerates sheath wear over time.

How to Select the Right Cable for Your Application

With the technical specifications understood, the selection process becomes a four-step checklist:

Tethered cables — permanently attached to the charging station — offer convenience and remove the risk of users losing or damaging a separate cable. For multi-vehicle fleets or public stations, untethered cables give users flexibility but require a socketed charge point.

Once you have locked in these four variables, the specification is complete. The next question is whether the cable in your hand actually meets the safety standards your market requires.

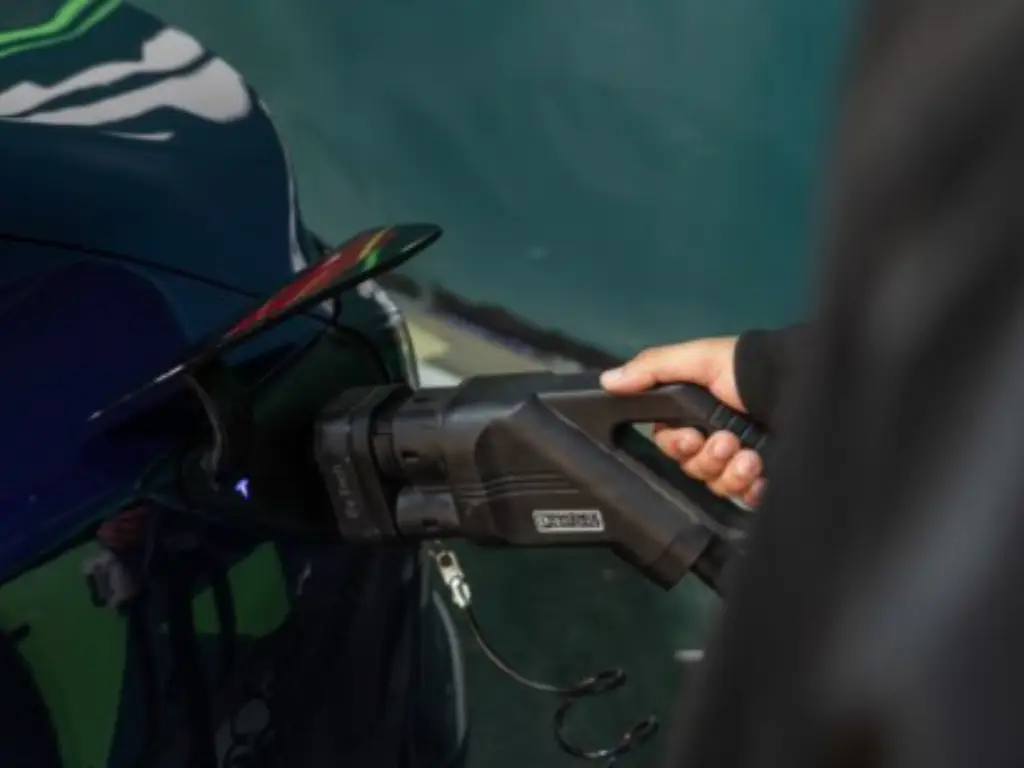

Safety Certifications and Compliance by Target Market

A CE mark does not get you into the United States. A UL listing will not clear EU customs. Certification is market-specific — and getting it wrong means your shipment stays at the port, or worse, reaches the customer and fails an inspection. For B2B buyers, understanding the certification landscape is not optional due diligence; it is the single most important factor in supplier qualification.

Required Certifications for North America (US & Canada)

North America operates on a third-party certification model: self-declaration is not enough. Any EV charging cable sold in the US must carry a Nationally Recognized Testing Laboratory (NRTL) mark — typically UL, ETL (Intertek), or CSA. The three core standards are UL 2263 (EV cable), UL 2594 (AC EV supply equipment), and UL 2251 (plugs and connectors). For smart chargers with WiFi or Bluetooth, FCC Part 15 compliance is also required. Energy Star certification, while not mandatory, is increasingly specified by commercial buyers and utility rebate programs as a procurement requirement.

The most common pitfall is counterfeit certification. Unscrupulous suppliers print UL-style marks on uncertified products, and the only defense is independent verification. Every NRTL listing has a unique file number — enter it at ul.com’s certification database, and you will see exactly which products and models are covered. If the supplier cannot provide a verifiable file number, walk away.

For example, manufacturers that have completed the full North American certification suite — UL, ETL, FCC, and Energy Star — demonstrate the infrastructure commitment that separates production-grade suppliers from trading companies. One such manufacturer is BENY (Zhejiang Benyi Electrical), whose 30,000 m² factory with an in-house accredited laboratory supports its 100+ international certifications including UL and ETL for EV charging cables and equipment. The company’s AC charger line, ranging from 3.7 kW to 22 kW, integrates Dynamic Load Balancing and PEN fault detection as standard — features that address the two most common installation failure points in residential and commercial deployments.

Required Certifications for Europe and the UK

Europe’s system is different: manufacturers self-declare conformity under the CE marking framework, supported by test reports to harmonized EN standards. For EV charging cables, the key standard is EN 50620 (halogen-free charging cables) and its international counterpart IEC 62893. These standards require a demanding test battery: dielectric withstand at 2.5 kV AC, cyclic bending endurance, crush resistance exceeding 11 kN for cables above 4 mm², thermal aging, UV weathering, and flame retardance per EN 60332-1-2 (CEISLAB, 2024).

CE alone is the floor, not the ceiling. TÜV and DEKRA marks represent independent third-party testing that goes beyond the manufacturer’s self-declaration — and for B2B buyers placing volume orders, a TÜV certificate is a far stronger quality signal than a CE mark alone. The UK’s post-Brexit UKCA regime is currently aligned with CE requirements, but divergence is expected over time, particularly as the UK develops its own EV infrastructure regulations under the Public Charge Point Regulations 2023.

Certifications for Asia-Pacific and Other Markets

The Asia-Pacific certification landscape is fragmented — each country runs its own system, and mutual recognition is rare:

Cable Construction and Material Quality

Two cables can look identical on the outside and perform differently over three years of daily use. The differences are in the materials.

The conductor is the starting point. High-purity electrolytic copper (99.9%) offers lower resistance and less heat buildup than recycled copper with trace impurities — and in a continuous-load application like EV charging, that heat differential compounds over hours. Class 5 stranded copper is the industry standard for flexibility and terminal reliability.

The jacket material determines outdoor durability. TPU (thermoplastic polyurethane) offers the best balance of flexibility, abrasion resistance, and cold-weather performance, remaining pliable down to -40°C. PVC is cheaper but stiffens in cold weather and degrades faster under UV exposure. Silicone rubber offers excellent heat resistance but lower mechanical durability. For outdoor or public charging applications, TPU with an IP67 rating is the benchmark.

At the connector end, silver-plated copper contacts deliver lower contact resistance and better corrosion resistance than nickel-plated alternatives — a difference that becomes measurable after several thousand mating cycles. The IEC 62893 standard requires connectors to survive at least 10,000 insertion cycles without exceeding specified contact resistance limits.

Evaluating EV Charging Cable Manufacturers

By the time you reach supplier evaluation, you have already defined your technical requirements and certification needs. The remaining question is structural: which manufacturer can reliably deliver compliant product at scale over a multi-year relationship?

Five dimensions matter most:

Finally, apply the one non-negotiable filter: if a supplier cannot provide a verifiable NRTL file number for the North American market, or a TÜV/DEKRA certificate for Europe, eliminate them from consideration. No price advantage compensates for a shipment rejected at customs or — worse — a product liability claim triggered by an uncertified component.

For procurement teams evaluating additional suppliers, BENY’s technical team can provide specification sheets and certification documentation for its full EV charger and cable range — contact them through the company’s website to request a quotation or schedule a factory audit.
