An In-Depth Look at the Types of Circuit Breakers

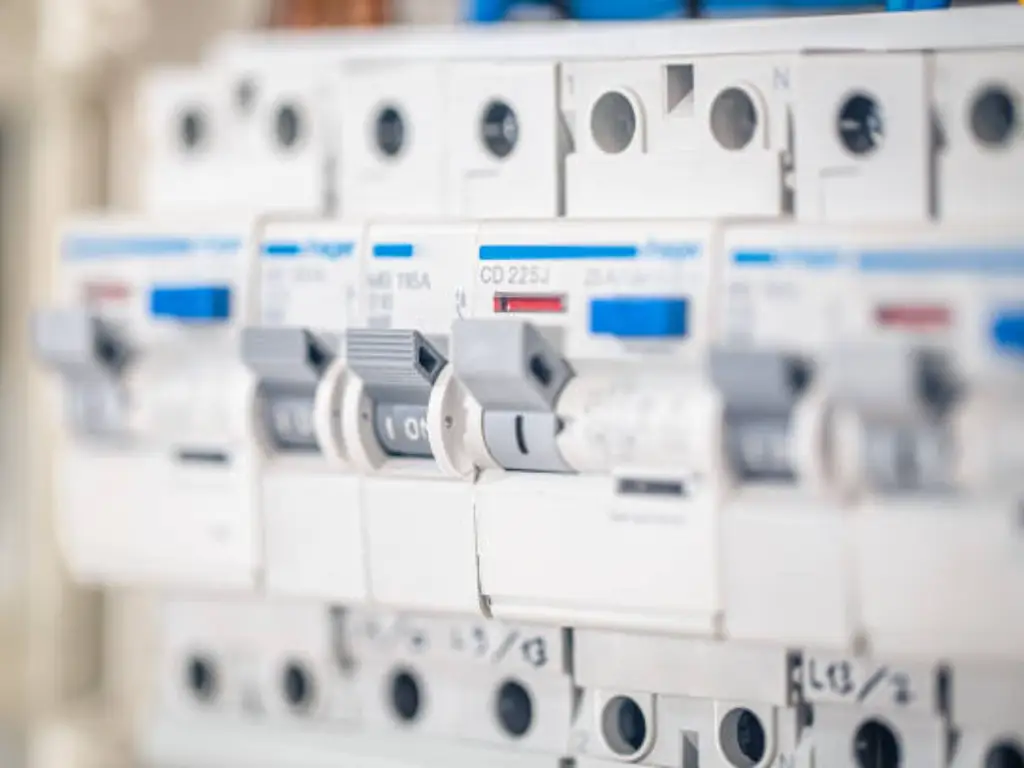

What are Circuit Breakers?

Circuit breakers are electrical safety devices that automatically protect electrical circuits from damage caused by excessive loads or short-circuits, falling into two main types; AC circuit breakers and DC circuit breakers. They stop the flow of electricity when they detect too much current, thereby preventing hazards such as electric fires or equipment damage. Circuit breakers can be operated manually for maintenance. Modern-day circuit breakers usually come with remote monitoring systems, enhancing system efficiency and quick fixing of fault conditions.

Types of Circuit Breakers by Voltage Levels

Voltage levels determine how circuit breakers are classified, and they fall into three main groups: high voltage, medium voltage, and low voltage circuit breakers. They are also purposely designed for different applications and work under varied conditions to guarantee the safety and reliability of electrical systems within various voltage ranges.

Voltage Level	Applicable Range	Common Types	Application Scenarios
Low Voltage	Below 1,000 volts	Miniature Circuit Breakers (MCBs)Molded Case Circuit Breakers (MCCBs)	Residential, commercial, and light industrial applications, such as lighting, small appliances, and small machinery
Medium Voltage	1,000 volts to 72,500 volts	Vacuum Circuit BreakersAir Circuit Breakers	Industrial and utility settings, including manufacturing plants, substations, and power distribution networks
High Voltage	Above 72,500 volts	Gas Circuit Breakers (SF6)Oil Circuit Breakers	Power transmission and distribution networks

Types of Circuit Breakers Based on Design and Medium

Classification of circuit breakers can be done in other ways based on the design of the breaker and its arc quenching medium. Under this classification, several types are specifically designed for different applications in particular environments.

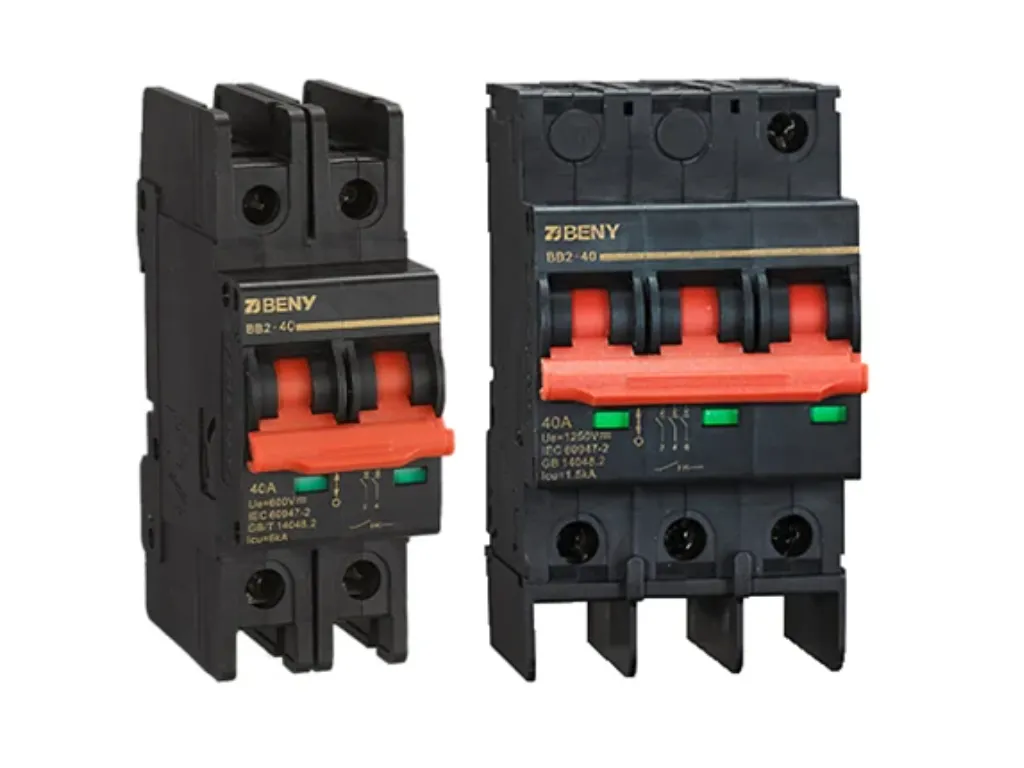

Miniature Circuit Breakers (MCB)

Among the various types of circuit breakers in use, Miniature Circuit Breakers (MCBs) are the most common types of breakers used in homes and businesses. They are built to provide protection for low voltage applications that do not exceed 100 amperes usually. MCBs are small in size; hence they can be easily mounted into electrical panels where they provide over-current and short-circuit protection for circuits. These breakers are known for their quick response time, which is essential to prevent equipment damage caused by power surges as well as reducing electric fires.

The operation of MCBs can be either thermal or thermomagnetic. The thermal type employs a bimetallic strip that bends and trips the breaker due to excess current heating it up. The thermomagnetic kind, on the other hand, has an electromagnetic coil that instantly responds to short circuits thus providing quick and reliable defense mechanisms against surges. MCBs are available in single-pole and multi-pole configurations, allowing for the protection of both single-phase and multi-phase electrical circuits. With this amazing flexibility coupled with their ability to guard against routine electrical problems, MCBs are an integral part of ensuring safety and dependability in electrical systems.

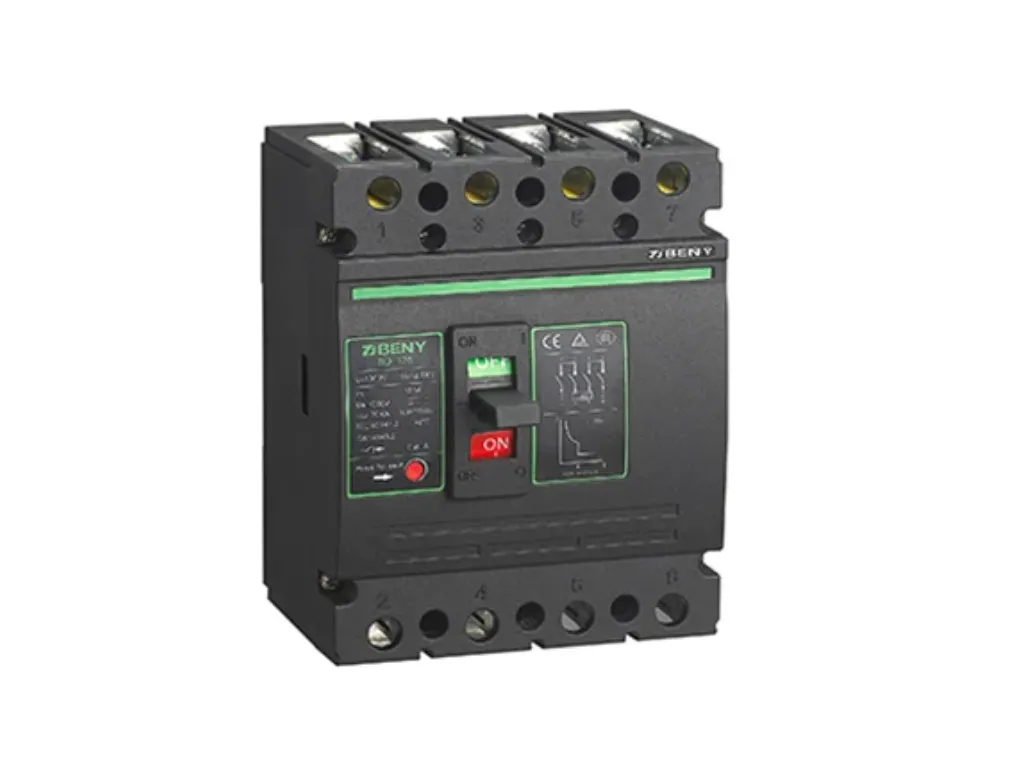

Molded Case Circuit Breakers (MCCB)

A molded case circuit breaker (MCCB) is a protective device made to withstand high current flow of up to 2500A, making it ideal for commercial and industrial use. It aids in the prevention of overloads, short circuits, and ground faults. The adjustable trip settings are a key feature of MCCBs that makes them suitable for various electrical requirements. In order to insulate and protect the breaker there is a molded plastic case that covers its design for easy installation and maintenance apart from having replaceable electrical components that can expand their lifespan thereby ensuring reliability in large-scale complex electrical systems.

Vacuum Circuit Breakers

Vacuum-based circuit breakers are indispensable for medium-voltage applications because of their dependability and low maintenance costs. They use a vacuum as an arc quenching medium, thus efficiently preventing electric arcs from being established when the current is interrupted. This design ensures that any electrical arc is quickly extinguished, minimizing system damage and enhancing safety.

These breakers operate by separating pairs of contacts within a vacuum chamber, which interrupts the current flow without maintaining an arc. These are most suitable in industrial and utility environments where high voltages occur commonly with regular switching operations.

They are best suited for applications requiring high reliability such as power plants and substations. This makes them more cost-effective due to reduced downtime and enhanced safety features thereby making them preferred over other circuit-breaking equipment in critical infrastructure settings.

Gas Circuit Breakers (SF6)

Gas Circuit Breakers, also known as SF6 circuit breakers and use sulfur hexafluoride (SF6) gas to interrupt current arcs. It has high electronegativity due to its excellent insulating properties, and it acts as an arc quencher by absorbing free electrons. So in such applications where high dielectric strength is required, such as transmission lines and power stations, they are ideal.

SF6 circuit breakers are able to handle large fault currents effectively which allows for fast arc extinguishing lowering the chance of electrical equipment damage. Nevertheless, this gas is a potent greenhouse gas hence must be handled and maintained carefully to minimize environmental impact. Nonetheless, there are ongoing efforts aimed at reducing the carbon footprint of SF6 circuit breakers without compromising their performance and reliability standards.

Oil Circuit Breakers

Oil Circuit Breakers are traditional devices used in high-voltage applications, where they leverage oil as both an insulator and an arc extinguisher. Once the current is interrupted by a circuit breaker, the arc that forms vaporizes the surrounding oil to form a gas bubble. The pressure from this bubble is able to extinguish an arc effectively and keep it from re-igniting, thus ensuring the safety of the operation of the circuit.

These breakers are known for their durability and ability to handle large currents, hence they find use in heavy-duty applications particularly those in old electrical systems. However; with advancements in technology, there has been a gradual phasing out of oil circuit breakers in preference for more advanced and eco-friendly versions. Nonetheless, they continue being dependable options suited for specific high-voltage scenarios, particularly where existing infrastructure supports their use.

Air Circuit Breakers (ACB)

Air Circuit Breakers (ACBs) are essential components in low-voltage electrical systems, utilizing air as the medium to extinguish arcs when interrupting current flow. Commonly found in industrial settings, ACBs are valued for their reliability and straightforward maintenance, making them a preferred choice for protecting large electrical systems and ensuring the safe operation of machinery.

The operation of ACBs involves separating contacts within an air-filled chamber. As the contacts separate, an arc forms, which is swiftly extinguished by the surrounding air. This rapid response is crucial for preventing damage to electrical systems and minimizing the risk of electrical hazards. ACBs are also equipped with advanced features such as electronic trip units and remote operation capabilities, enhancing their versatility and making them a vital part of modern electrical infrastructure.

Circuit Breakers with Special Protection Functions

Other than the standard circuit breakers, there are specialized varieties of circuit breakers that have some additional safety features and address specific faults found in electrical systems.

Residual Current Circuit Breakers (RCCBs)

The function of Residual Current Circuit Breakers (RCCBs) is to shield against earth leakage currents. These currents occur when an unwanted electric current flows into the earth from live parts. The current leakage may be due to an insulation fault or damaged wiring which could pose a serious risk such as an electric shock. RCCBs detect any imbalance between the live and neutral wires, and when this happens, they instantaneously switch off the entire circuit thereby cutting out the electricity thus averting any possible danger.

In both residential and commercial buildings, RCCBs find extensive applications where they offer extra protection not provided by normal circuit breakers. This is particularly beneficial in places with high possibilities of current leakage such as wet areas including bathrooms, kitchens, laundry rooms, or outside locations where electrical apparatuses get exposed to weather elements.

Ground Fault Circuit Interrupters (GFCIs)

Ground Fault Circuit Interrupters (GFCI circuit breakers) are essential safety devices designed to protect against ground faults, which occur when electrical current takes an unintended path to the ground, potentially through a person or a conductive surface. GFCIs detect these faults by monitoring the balance between the current flowing into and out of a circuit. If there is an imbalance, then it means that there is a ground fault. The GFCI quickly trips the circuit to cut off electricity, reducing the risk of electric shock and preventing potential injuries.

It is necessary to install GFCIs on all indoor as well as outdoor outlets within premises like bathrooms, kitchens, etc. This is because these places are more likely to have ground faults happening. They also respond rapidly, thereby acting as preventive measures from possible hazards that could arise due to short-duration faults in the system supply line.

Arc Fault Circuit Interrupters (AFCIs)

Arc Fault Circuit Interrupters (AFCIs) are specialized safety devices designed to detect and prevent arc faults, which are dangerous electrical discharges that can occur due to damaged or deteriorating wiring. The discharge of this kind produces extreme heat and if it goes unnoticed may inflame the surrounding materials making them to cause grave electrical fires. An AFCI constantly checks the electrical installation for specific patterns that can be taken as a sign of the occurrence of an arc fault before shutting off the flow of electricity, thus preventing fire hazards.

AFCIs are becoming increasingly common in residential settings, especially in areas like bedrooms and living spaces where a fire originating from electricity has serious consequences. In contemporary electrical safety systems, AFCIs are important because they offer protection levels beyond what standard circuit breakers do. Consequently, they prevent hidden risks arising from electrical issues, including poor grounding or faulty wiring, which would result in loss of lives or property.

Key Factors to Consider When Choosing a Circuit Breaker

Carefully considering a number of key aspects must therefore be done to arrive at the right type of breaker for a particular application for this breaker to function reliably and provide adequate protection.

• Voltage Level: Make certain that the circuit breaker is rated with your system’s voltage. Low-voltage applications usually employ MCBs or MCCBs, while medium and high-voltage systems use more sturdy breakers like vacuum or gas circuit breakers.
• Current Rating: The breaker must handle the circuit’s normal operating current and potential overloads. Choosing the correct rating prevents unnecessary trips or inadequate protection.
• Application Environment: Consider the environment where the breaker will be installed. Factors like temperature, humidity, and exposure to corrosive elements can affect performance. For example, GFCI breakers are ideal for wet areas, while more durable types are needed for harsh industrial conditions.

Given these considerations, one can choose an appropriate circuit breaker that fits his/her unique needs and enhances the safety and effectiveness of the electrical system.

Conclusion

Electric systems always need safety and reliability. The main function of a circuit breaker is to protect against electrical faults, safeguarding people and property from hazards like fires, equipment damage, and electric shocks. With technological advancement, there is still a need for more advanced forms of circuit breakers that will guarantee more protection for modern electrical systems. Knowledge about different types of circuit breakers and their functions is very important for ensuring the safety and availability of electricity supply.

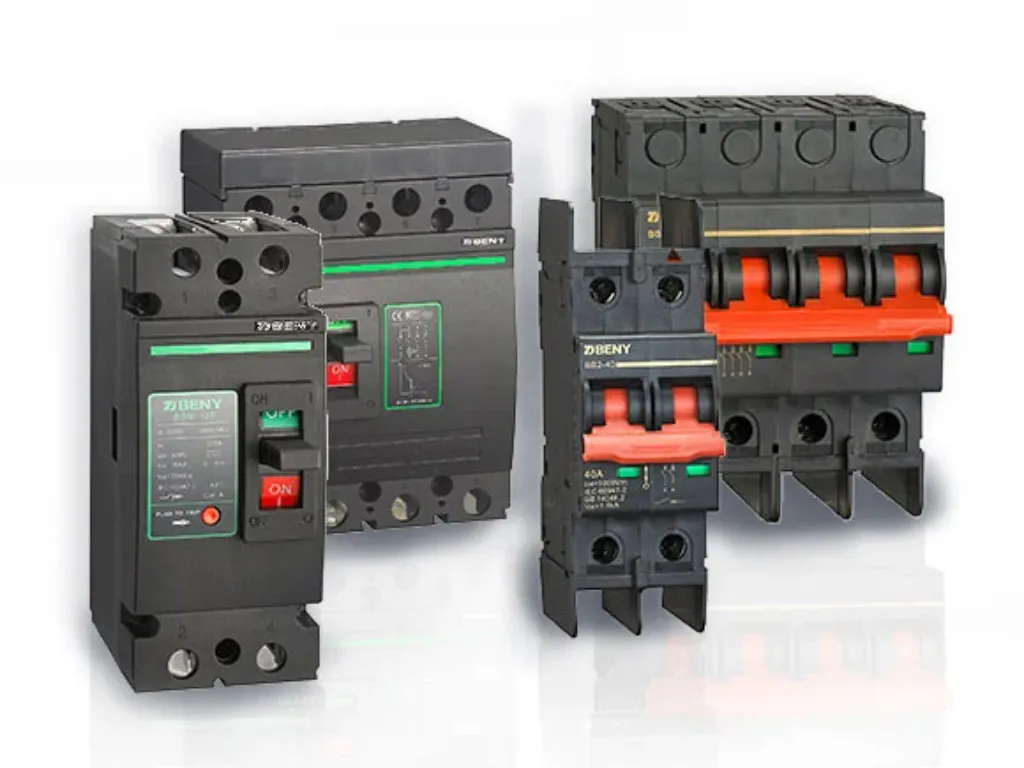

BENY: Leading China DC Circuit Breaker Manufacturer
