Unplanned electrical downtime costs manufacturing facilities an average of two hundred and sixty thousand dollars per hour, and a single miscalculated protective device can instantly trigger catastrophic equipment fires. Navigating the complexities of electrical distribution requires far more than a basic understanding of voltage and current. In modern industrial and commercial facilities, the margin for error is virtually nonexistent. This comprehensive engineering guide solves three critical mandates for facility managers and electrical engineers. We will thoroughly explore matching exact trip curves to industrial loads, calculating precise three phase derating coefficients, and verifying true interrupting capacities to secure your facility power infrastructure. By stripping away the ambiguity surrounding electrical protection, this resource equips you with the exact parameters required to architect a fail proof and compliant power system.
What Exactly Does a Circuit Breaker Do?
When addressing the fundamental question of what is a circuit breaker, one must recognize that it is absolutely not a heavy duty light switch; it is an autonomous defense system. It acts as the primary gatekeeper and the absolute first line of defense for your entire electrical infrastructure. While a standard mechanical switch regulates power flow based on intentional human interaction, a breaker is an engineered sentinel operating entirely on its own. It constantly monitors the thermal and magnetic conditions of the circuit, poised to detect catastrophic anomalies and sever the power connection milliseconds before an electrical fire or total system meltdown can occur.
| Device Classification | Primary Trigger Mechanism | Core System Function | Post Event Reset Protocol |
|---|---|---|---|
| Standard Disconnect Switch | Manual human physical toggle | Intentional routing and isolation | Manual return to closed position |
| Automatic Circuit Breaker | Autonomous thermal or magnetic shift | Emergency fault isolation and safety | Manual reset strictly after fault clearance |
To truly understand this protection, one must clearly separate two fundamentally different electrical events that are often wrongly used interchangeably. An overload is a slow and chronic heat buildup caused by drawing slightly more current than the copper wiring is rated to handle over an extended period. A short circuit is an instantaneous and violent physical bypass of normal electrical resistance, sending a massive and destructive surge of energy through the system in a fraction of a second. The defense system handles both anomalies efficiently, but it achieves this through completely different internal mechanical pathways designed to react at different speeds.
Inside the Box: How They Actually Stop an Electrical Fire
To comprehend how this safety device survives under immense electrical pressure without disintegrating, we must open the black box and examine its internal architecture. Modern protection relies on a highly sophisticated interplay of thermodynamics, mechanical engineering, and in high capacity industrial applications, advanced micro processing power. The system does not merely break a physical connection; it must actively manage and extinguish the violent energy released during that physical separation to prevent catastrophic enclosure failure.
The Thermal Trip Mechanism
Operating as a patient alarm system against chronic overloads, this section utilizes a precisely calibrated bimetallic strip. As prolonged excess current flows through the device, it generates increasing levels of internal heat. Because the strip is composed of two different metals that expand at different rates, the rising temperature causes the strip to gradually bend. Once a critical temperature threshold is breached, the physical deflection pushes against the latching mechanism, tripping the system safely before hidden wiring inside your facility walls can melt and ignite surrounding materials.
The Magnetic Trip Mechanism
When an overload escalates into a violent short circuit, the thermal strip is entirely too slow to react. This is where the magnetic assembly takes over, functioning like a hair trigger mousetrap. A sudden and massive spike in electrical current energizes an internal electromagnet. This instantaneous magnetic field exerts a tremendous pulling force on an armature, instantly unlatching the contacts and breaking the circuit in mere milliseconds before the massive kinetic surge can destroy sensitive downstream manufacturing equipment.
The Arc Chute Assembly
When metal contacts separate while carrying thousands of amps of fault current, the electricity attempts to jump the physical gap, breaking down the dielectric strength of the air and creating a localized plasma arc. This arc burns at temperatures capable of vaporizing steel. The arc chute is a stacked grid of specialized metal de-ion plates that aggressively stretches, slices, and cools this superheated plasma, safely extinguishing the firestorm before the entire plastic enclosure violently explodes under the immense internal pressure.
Electronic Trip Units: Moving beyond pure mechanical physics, the modern industrial brain relies on digital precision. High capacity molded case and air circuit breakers abandon simple bimetallic strips in favor of embedded microprocessors. These units constantly sample the current waveform and offer highly programmable protection curves, perfectly distinguishing between the harmless temporary energy surge of a massive factory motor starting up and a genuinely lethal short circuit fault that requires instantaneous interruption.
Navigating the Different Types of Circuit Breakers
The landscape of electrical protection is vast, and specifying the correct device requires understanding the strict hierarchy of physical scale and application intent. The categorization follows a logical progression from residential branch protection up to the massive incoming mains of utility substations, with strict code compliances dictating exactly where each specific technology must be deployed to ensure maximum safety.
Residential Variants and Foundational Protection

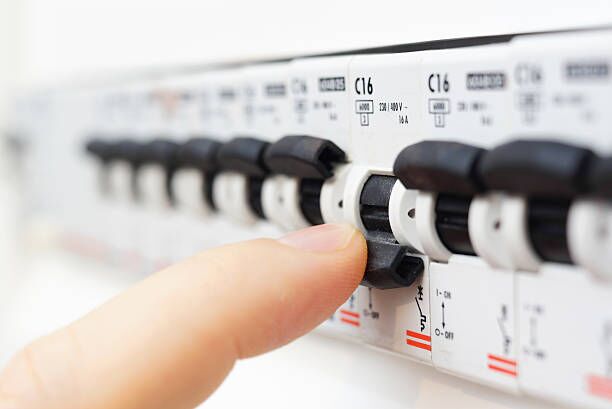

Miniature devices form the foundational backbone of residential housing and light commercial distribution networks, typically centralized within the main circuit breaker box. However, providing baseline thermal and magnetic protection is no longer legally sufficient in modern construction. The National Electrical Code strictly mandates functional variants based on the specific environmental risks of each room to protect both property infrastructure and human life from highly localized hazards.
| Breaker Classification | Primary Hazard Defended Against | Mandatory Installation Zones |
|---|---|---|
| Standard Thermal-Magnetic | General equipment damage and structural wire fires | Lighting circuits, HVAC systems, and major appliance branches |
| Ground Fault Circuit Interrupter | Lethal human electric shock through unintended grounding | High moisture environments including kitchens, bathrooms, and outdoor receptacles |
| Arc Fault Circuit Interrupter | Hidden combustion caused by degraded or sparking wire insulation | Living rooms, bedrooms, hallways, and general dwelling areas |
Stepping Up to Industrial Heavyweights
When facility voltage levels rise and the continuity of manufacturing operations translates directly to millions in revenue, commercial facilities must step up the hierarchy of electrical protection. The physical size, current carrying capacity, and functional intelligence of the devices scale linearly to meet the rigorous demands of heavy industry.

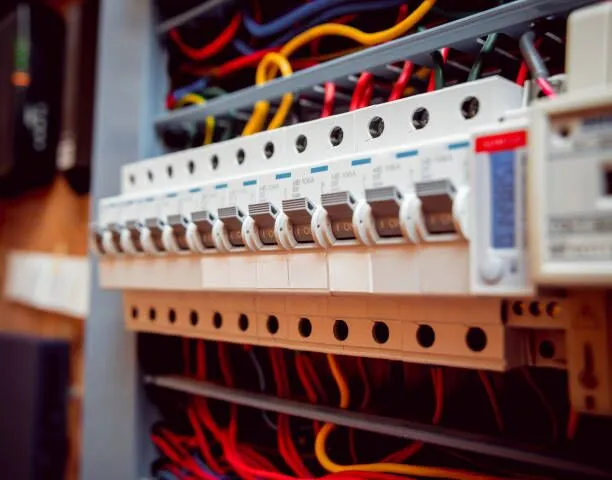

Level 1: Miniature Circuit Breakers
Capping out at roughly one hundred to one hundred and twenty five amps, these are the fixed post security guards of the commercial office environment. They are compact, DIN rail mounted, and feature factory set trip parameters that cannot be altered, making them perfect for predictable, low impact commercial lighting, computer servers, and standard receptacle loads where the current draw remains relatively stable.

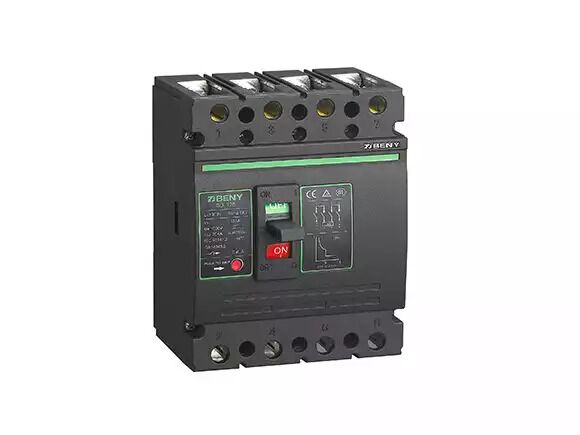

Level 2: Molded Case Circuit Breakers
Scaling up to cover the vast range from fifteen amps all the way to two thousand and five hundred amps, these devices serve as the tactical response teams of the factory floor. They are housed in robust composite materials designed to contain massive internal arc pressures. Their defining evolutionary leap is the inclusion of adjustable trip units, allowing facility engineers to dynamically fine tune the exact overload and short circuit thresholds on site as machinery load profiles evolve over time.
Level 3: Air Circuit Breakers
Representing the absolute pinnacle of low voltage protection, these massive units are the heavy defensive armor of the main facility substation. Handling up to six thousand and three hundred amps of continuous working current, they rely on free air circulation and elaborate internal chute networks to dissipate extreme heat. They serve as the main incoming tie lines, boasting hundred thousand amp interrupting capacities to shield the entire facility from grid level catastrophic surges.
Cross-Level Specialized Application (Motor Protection): Engineers must recognize that protecting heavy rotating equipment requires a distinct topological approach that crosses standard physical boundaries. Motor protection circuit breakers are not simply a size tier between miniature and molded case units. Instead, they are highly specialized bodyguards engineered across multiple footprints. Whether housed in a small DIN rail compatible casing for a packaging conveyor belt or a massive molded case frame for a heavy rock crusher, their defining characteristic is an ultra precise magnetic trip calibration. This allows them to completely ignore the brutal, high frequency inrush currents generated during a motor startup sequence while remaining hyper sensitive to phase loss and thermal overloads that would otherwise melt the expensive copper windings.
If you want to explore these categories further, please check out our blog on An In-Depth Look at the Types of Circuit Breakers.
The Engineering Side: AIC Ratings and Trip Curves Explained
Relying solely on continuous amperage ratings when selecting protection for a commercial facility is a critical engineering oversight that leads directly to catastrophic failure. To build an impenetrable safety architecture, procurement teams and facility managers must deeply understand the dynamic parameters that dictate how a device behaves during the worst possible electrical anomalies.
Why Interrupting Capacity is a Matter of Life and Death
The most dangerous and expensive error an engineer can make is confusing continuous current with ampere interrupting capacity. A standard continuous rating dictates the normal daily load the device can carry without overheating. However, the interrupting capacity dictates the absolute maximum fault current the device can safely clear without physically exploding into pieces.
Consider a device rated for twenty amps of continuous load. This indicates its ability to comfortably carry the everyday burden, much like a worker carrying a standard bag of sand. However, if a severe short circuit occurs near the main transformer, the fault current can instantaneously spike to ten thousand amps. The interrupting capacity rating indicates whether the internal mechanics can slam the door shut and extinguish the resulting plasma fireball before the sheer kinetic and thermal energy shatters the plastic casing into deadly shrapnel. In heavy industrial mains, specifying a device with an inadequate interrupting capacity is a guaranteed recipe for a severe arc flash disaster that endangers the entire facility.
Taming the Extremes of 1500V DC Microgrids
When electrical engineering pushes into the frontiers of modern renewable infrastructure, the rules of arc extinction change drastically. In cutting edge environments such as utility scale solar photovoltaic arrays, heavy duty electric vehicle charging stations, and high capacity Battery Energy Storage Systems, operating voltages routinely reach a punishing 1500V DC. Unlike alternating current, direct current has no natural zero crossing point, making a high voltage DC plasma arc incredibly difficult to extinguish. Standard alternating current protection will fail instantly in these applications.
This extreme environment necessitates uncompromising technology. BENY DC Circuit Breakers stand as the definitive solution for these aggressive applications. Backed by rigorous UL 489 and UL 489B standards for photovoltaic and energy storage branch protection, and holding the world’s first DC-PV2 global patent, these devices deliver a staggering short circuit breaking capacity exceeding ten thousand amps. Crucially, BENY has engineered a flawless non polar design. In complex, bidirectional Battery Energy Storage Systems and solar installations, energy flows can frequently reverse. A non polar architecture ensures that regardless of the current direction, the arc is successfully routed into the extinguishing chamber, completely eliminating the risk of explosive failure caused by accidental reverse wiring.
Decoding Trip Curves for Inductive and Resistive Loads
Selecting the incorrect trip curve guarantees endless nuisance tripping and factory floor frustration. It is vital to establish a firm boundary between the fixed curves used in DIN rail mounted devices and the highly adjustable parameters found in large scale industrial protection.
For standard miniature rail devices, engineers must select specific alphabetic curve profiles. The B curve, tripping at three to five times the rated current, is engineered specifically for resistive loads and long cable runs. In extended cable networks, high line impedance drastically suppresses short circuit currents; a B curve ensures the breaker trips instantaneously even during low magnitude terminal faults. The C curve offers moderate tolerance, accommodating five to ten times the rated current, which perfectly suits standard commercial lighting and small inductive coils. However, when starting heavy industrial water pumps or transformers, the initial surge can easily spike to ten times the running current. Applying a standard curve here causes immediate false tripping, preventing the machinery from ever spinning up. This necessitates a D curve device, which calmly tolerates surges up to twenty times the baseline rating without interrupting production.
Conversely, true large scale molded case units do not rely on picking a static letter from a catalog. Instead, facility engineers utilize the electronic trip unit dials to sculpt a custom protection envelope. By adjusting the long time delay for chronic overloads, the short time delay for temporary surges, and the instantaneous pickup for absolute faults, an experienced engineer acts much like a master audio technician, perfectly tuning the protection matrix to mirror the exact thermal and kinetic profile of a multi million dollar production line.
A Practical Guide to Sizing Your Circuit Breaker
Translating theoretical safety into physical hardware requires rigorous mathematical discipline. Providing inadequate headroom leads to chronic overheating and mechanical fatigue, while heavily oversizing the protection leaves the downstream wiring vulnerable to melting before the device ever reacts. Strict adherence to the continuous load rule mandated by the National Electrical Code is absolutely non negotiable in professional environments.
The foundational principle dictates that if a circuit operates continuously for three hours or more, the protective device must be rated to carry one hundred and twenty five percent of that continuous load. In simpler terms, a breaker should only be loaded to eighty percent of its printed capacity for continuous operation to prevent thermal warping of internal components.
Residential and Standard Single Phase Calculations
Current = Total Power / Voltage
For example, a dedicated commercial space heater consuming one thousand and five hundred watts on a standard one hundred and twenty volt line will generate a continuous draw of twelve and a half amps. Applying the strict eighty percent continuous load rule, a standard fifteen amp device is running far too close to the thermal limit. Upgrading to a twenty amp device ensures the thermal strip will not prematurely warp and cause a nuisance trip during an extended winter shift.
Industrial Three Phase and Power Quality Calculations
Current = Total Power / (1.732 × Voltage × Power Factor)
Calculating industrial distribution introduces severe complexity. The inclusion of the square root of three alongside dynamic power factor efficiencies means that raw wattage does not linearly translate to amperage. Furthermore, calculating the precise short circuit let through energy to ensure your device interrupting capacity is sufficient requires deep network analysis of the upstream utility transformer impedance.
Interactive Industrial Sizing Calculator
Input your specific load parameters below to instantly determine the baseline continuous amperage and recommended breaker rating, entirely eliminating manual mathematical friction and ensuring code compliance.
Bypass the Guesswork in Complex System Design
While the calculator provides an excellent baseline, applying these metrics to high voltage direct current renewable systems or dynamic motor centers leaves absolutely zero room for human error. A single miscalculated power factor can result in massive compliance failures, rejected commercial inspections, or catastrophic equipment damage upon system energization. Rather than expending valuable internal engineering hours manually mapping short circuit analysis and voltage drop coefficients, forward thinking procurement teams entrust these complex variables to the BENY Expert Consulting Team.
Leveraging over three decades of specialized experience in photovoltaic and industrial electrical protection, BENY engineers deliver comprehensive, tailored engineering solutions. Operating a massive thirty thousand square meter facility equipped with twelve cutting edge production lines and over seven hundred in house rapid prototyping molds, BENY completely disrupts traditional supply chain bottlenecks. They have the unique manufacturing agility to reduce custom engineered product lead times by up to thirty percent, ensuring your critical infrastructure projects stay aggressively on schedule. Supported by a global network providing twenty four seven technical assistance, BENY guarantees that your tailored protection scheme is not only perfectly sized but rapidly deployed.
Consult the BENY Engineering Team Today
Circuit Breaker vs Fuse: Is There a Clear Winner?
Facility managers analyzing capital expenditure budgets often question whether traditional, inexpensive fuses can simply replace advanced mechanical protection. While it is an objective electrical fact that a high quality current limiting fuse can react and melt slightly faster than a mechanical latch can open during a catastrophic short, analyzing the holistic operational cost reveals a starkly different commercial reality for modern industrial floors.
| Operational Metric Analyzed | The Traditional Fuse Approach | The Mechanical Breaker Approach |
|---|---|---|
| System Response Style | Sacrificial and permanent destruction | Resettable mechanical interruption |
| Three Phase Safety Risk | Extremely high risk of single phase melting, leading to total motor burnout | Mechanically interlocked to sever all three phases simultaneously |
| Unplanned Downtime Cost | Severe financial drain while searching for replacement inventory and executing physical swaps | Negligible downtime with immediate manual or remote reset capabilities |
The traditional fuse acts as a sacrificial pilot, willingly destroying itself to save the equipment. However, the subsequent hidden costs of dispatching maintenance personnel, locating the exact replacement rating, and holding the production line idle are astronomically high. Modern resettable protection acts as a durable knight, absorbing the blow and allowing operations to resume with a simple toggle once the fault is cleared, preserving massive amounts of facility revenue.

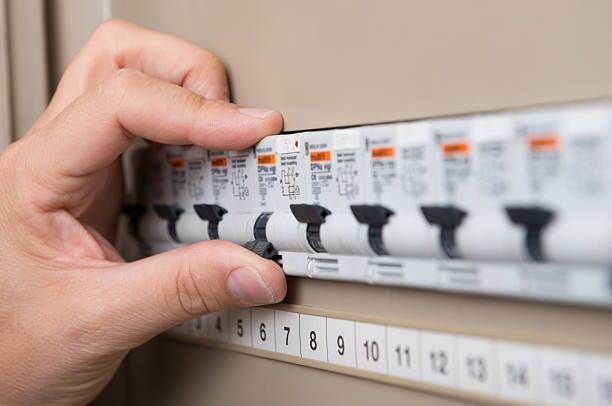

Red Flags: When to Reset and When to Replace
Mechanical protection devices are remarkably durable, but they are absolutely not immortal. The internal springs, metal contacts, and thermal strips undergo microscopic degradation every single time they trip under a heavy electrical load. Recognizing the end of a device safe lifecycle is paramount to preventing a localized fault from evolving into a devastating panel board arc flash. Under no circumstances should facility personnel attempt improvised circuit breaker repair on degraded internal components. If a toggle is reset and immediately trips back to the neutral position, an unresolved hard short exists, and forcing it will likely trigger an explosive failure.
Before attempting any panel maintenance, always utilize a professional circuit breaker finder to confirm the exact line is completely de-energized. Be hyper vigilant for these absolute physical indicators that dictate immediate circuit breaker replacement rather than risking operational continuity:
- Olfactory Warnings Olfactory warnings such as a distinct fishy or burning plastic odor emanating from the panel enclosure, which heavily indicates melting internal insulation and failing composite materials.
- Thermal Anomalies Thermal anomalies where the exterior casing becomes uncomfortably hot to the human touch, signaling severe internal contact resistance and imminent thermal runaway.
- Mechanical Fatigue Mechanical fatigue characterized by a toggle switch that feels excessively spongy, loose, or fails to deliver a crisp, definitive snap when moved manually between operational states.
- Visual Evidence Visual evidence of pitting, severe discoloration, or black carbon scoring around the terminal lugs where the copper wiring interfaces directly with the device chassis.
The Future: Are Smart Breakers Worth the Hype?
The traditional paradigm of electrical protection has always been inherently reactive. Waiting for a device to violently trip after a fault has occurred is essentially performing an electrical autopsy after the damage is already done. The future of industrial power management is rapidly shifting toward intelligent solid state architectures and smart units embedded with continuous energy monitoring telemetry. This profound evolution moves facilities from reactive scrambling to highly controlled predictive maintenance.
When one calculates the brutal reality that unplanned manufacturing downtime averages an unforgiving two hundred and sixty thousand dollars per hour across heavy industry, the commercial justification for smart integration becomes undeniable. These intelligent units function exactly like an intensive care heart monitor for your production line. By continuously analyzing microscopic anomalies in current waveforms, identifying harmonic distortions, and tracking thermal drift days before a motor winding completely shorts out, they allow operations directors to schedule localized, low impact repairs. The seemingly high initial capital expenditure of smart protection is frequently entirely recouped the very first time it successfully prevents a catastrophic, unscheduled factory halt.
Conclusion and Strategic Next Steps
The structural integrity of your electrical distribution network rests entirely on the precision of the protective devices shielding it. As we have deeply explored, moving beyond the superficial understanding of basic switches requires mastering the nuances of thermal and magnetic physics, differentiating between residential variants and industrial heavyweights, and respecting the critical difference between continuous loads and massive interrupting capacities. Settling for inadequate sizing or ignoring the specific curve parameters of your machinery invites unacceptable risks of fire and financial ruin.
It is time to elevate your facility safety architecture from a state of vulnerability to a position of absolute resilience. Do not leave the survival of your multi million dollar infrastructure to chance or outdated calculation methods. Connect with industry leading experts to ensure your next deployment is precisely engineered, fully compliant, and built to withstand the harshest electrical realities. Ready to upgrade your facility from reactive repairs to predictive maintenance? Explore advanced configurations today.
