A solar inverter, also known as a PV inverter, is a type of power inverter that converts a photovoltaic (PV) solar panel’s variable direct current (DC) output into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.

You may need to disconnect solar panels in a number of circumstances, so understanding how to do it correctly is crucial. This guide is for you if you need to disconnect your solar panels due to an impending storm, relocation, maintenance, replacing modules, or any other reason.

Here is a complete guide on how to disconnect solar panels and all the related frequently asked questions.

Step-by-step Solar Panels Disconnection

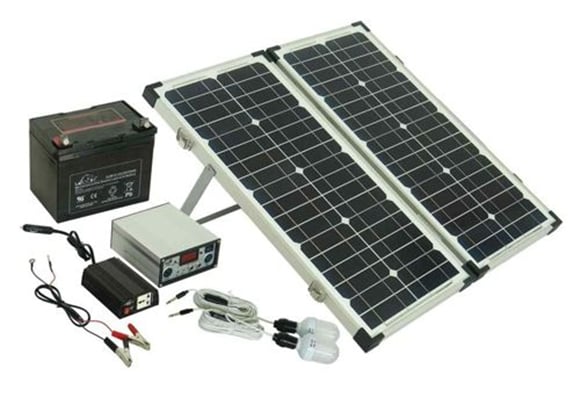

Solar Panels
Source: Pinterest

Step 1: Disconnect the circuit breaker between the battery bank and the MPPT charge controller.

Step 2: Close the VictronConnect app’s MPPT controller.

Step 3: Disconnect the circuit breaker between the MPPT charge controller and the solar panels (if installed)

Step 4: Either wrap the solar panel with a dark material or turn it over so the side with the logo faces the ground.

Step 5: Separate the positive Mc4 connectors after separating the negative Mc4 connectors between the solar panel and the PV extension wire using the MC4 disconnect tool.

Turning off the PV System Itself

Safety precautions

If at all feasible, put on a hard hat and work boots. Insulating gloves are also necessary to protect oneself.

Early Evening Disconnection

The sun generates solar energy, which cannot be “turned off.” During the day, you are operating with a “live wire” because the sun is still producing power.

Disconnecting the Solar Panels

Disconnect the AC and DC switches

The majority of systems contain both AC and DC circuit breakers. The alternating current’s side, known as the AC side, needs to be switched off first. After that, shut off the AC breaker.

  • Inspect your system to check if it has a disconnect switch. If not, place a reflecting or opaque surface over the solar panels.
  • Verify that the voltage is zero by using a voltmeter or multimeter.
  • Unplug the wires. This is simple using MC4 connectors, or you may use a socket wrench.
  • If necessary, take out the bolts and clamping mechanisms.

Rapid Shutdown System

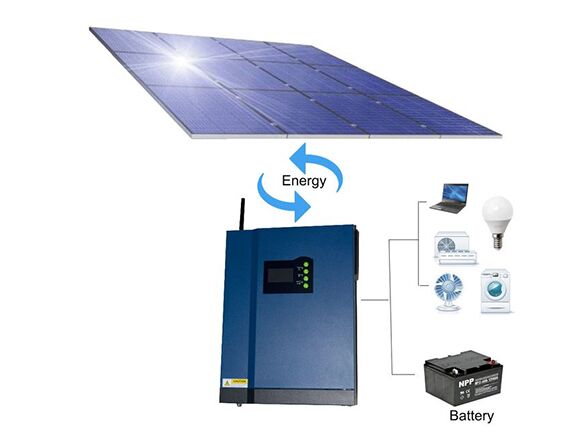

Solar system
Source: Pinterest

Some places use a rapid shutdown solar PV system. In an emergency, such as a fire, a quick shutdown is a means to bring the entire system to zero.

As long as they are not installed on the roof, these systems can be installed anywhere in the house. Your PV will turn off immediately if you press the system’s internal button in an emergency.

In an effort to protect first responders, the National Fire Protection Association (NFPA) incorporated rapid shutdown criteria into the NEC. However, if it happens, firefighters can utilize quick shutdown solutions to de-energize your solar panel system just in case they need to climb on your roof. Ideally, your home will never catch on fire and you won’t even need to worry about rapid shutdown functionality.

Unexpectedly, simply turning off a solar inverter doesn’t always accomplish this. In some inverter configurations, wiring and circuits can continue to be powered long after the inverter is turned off, raising the risk of shock for the firemen working on your roof or in your attic.

Firefighters can physically flip a switch to quickly reduce the electrical voltage of your solar panel system to safe levels by using a disconnect switch that facilitates rapid shutdown.

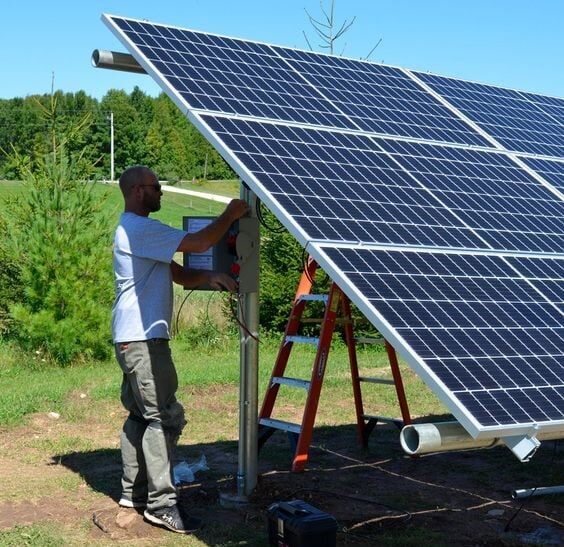

Solar panels disconnection
Source: Pinterest

Am I Off-Grid When Disconnected?

Some individuals might believe they are “off the grid” because they have unplugged the solar panels, however, that is untrue. You are only truly off-grid if a separate system with batteries is installed.

Most homeowners draw energy from the power company because they are grid-tied. The name of this system is net metering (NEM).

As seen in the graphic below, an off-grid solar-powered system consists of a combination of solar panels, a charge controller, batteries, and an inverter. Solar panels are used to charge the batteries, and the inverter also converts DC to AC.

What Benefits do Grid-Tied and Off-Grid have respectively?

Grid-tied: Grid-tied systems are more advantageous for most houses because the battery system’s installation costs are lower. Through net metering, having a utility connection also results in financial savings. The utility provider stores any electricity you don’t use right away for future use.

Also known as a “virtual battery,” the grid manages all of your storage needs on your behalf. In the event that your solar systems malfunction for any reason, you have access to backup power and there is no need for replacement parts or maintenance.

Off-grid: These normally cost $12,000 more but are better suited to distant locations or places with frequent power shortages. You can never lose power when you live off-grid.

As long as you have backup power, like a generator, you have another advantage in that you are not dependent on the electric provider.

Some people feel secure in their energy independence since they know they are not dependent on anyone else for their power.

Off-grid living offers additional benefits if you are concerned about global warming. With an off-grid solution, you can achieve 100% clean energy because you won’t need any fossil fuels to generate electricity.

How to Disconnect a Portable Solar System?

Many people are beginning to lead nomadic lifestyles. Solar power is a common choice for those who own boats or RVs.

You will take the identical actions that were previously described if you need to move them. Cut the wires with an MC4, cover the panels with a dark cover, and shut off the circuit breaker.

The sun generates solar energy to produce power. The majority of systems feature both AC and DC circuit breakers. The alternating current’s side, known as the AC side, needs to be switched off first. After that, shut off the AC breaker.

What Are AC and DC Disconnects and Why Are They Important?

For mounting a solar panel system on your roof and connecting it to your house, you’ll need AC and DC disconnects.

The inverter is disconnected from the electrical grid by an AC disconnect. It can be a freestanding switch or a breaker on a service panel, and it is typically placed on the wall between the inverter and utility meter in a solar PV system. Switches known as DC disconnects can stop the flow of DC (direct current).

When AC and DC disconnects are installed correctly, your customer’s home will be secure and incoming electricity can be swiftly turned off if necessary.

These disconnect switches must be present according to the majority of construction rules in the US. Because of this, it’s critical to comprehend how AC and DC disconnect function.

How to Size an AC or DC Disconnect?

Once you know what is a dc disconnector you need to know disconnects exist in a variety of sizes ranging from 30amp to 800amp, therefore prior planning is required to identify which disconnect sizes you require.

To know how to size a disconnect switch, you must first determine the size and power output of your PV system. If you want to create a system by hand, consider the following variables:

  • Voltage
  • Load on the circuit
  • Size of the amps/breaker
  • Wiring and cable dimensions

These elements combine to define the overall load size, which in turn determines the disconnect sizes required. After you’ve designed the system, you’ll need to submit your plans for approval.

Can Solar Panels Be left Disconnected?

It is not advised to unplug your panels. When solar panels are not connected, the circuits are left open and the power has nowhere to go. An overloaded system and damaged panels may be the outcome.

It’s acceptable to turn off your solar panels before a storm or to leave town for a few days. Just be certain that it isn’t more than two or three days.

Similar to a battery that is not linked to anything, a solar panel that is unplugged will operate normally. Even though there is voltage present, nothing will happen because there is no circuit for the current to go through, hence nothing can happen.

Once everything is in place, a solar panel is rarely unplugged, and while doing so occasionally is okay, it’s also not a good idea. The fundamental point of solar panels is that they give your appliances and other electronics electricity.

However, since it is not connected to anything, no current will flow. The terminal voltage of a shorted solar panel will be close to zero, but a current will flow that is linearly related to the sun cell irradiance. Since either I or V is zero, the generated power in both scenarios is practically nil.

The electricity produced by a set of solar panels will undoubtedly enter your home if you plug them into a wall outlet. However, doing this has significant hazards. For starters, you must use a separate circuit just for the plug-in solar array.

What Is Going to Happen If The Power Goes Out?

The primary reason for power outages is storms. Since most solar-powered homeowners are grid-tied, they will experience power outages alongside the rest of their community. The main causes of this are worker safety and problem-solving.

Because the solar panels still absorb sunlight and solar energy, if you have any installed on your roof or land, they will continue to create electricity during blackouts just as they do every day. Backup generators cannot be powered by solar energy. During a violent storm, solar energy will lose power just like other energy sources do.

What Constructive Solutions Do We Have to Prevent a Power Outage?

Hybrid Solar System: A hybrid solar system costs less than an off-grid system and does away with the requirement for a gas generator. The inverters used in hybrid solar systems are battery-based and connected to the grid.

Stand-Alone Solar Batteries: These are available in a variety of configurations and keep your electricity running by totally cutting off from the grid when a power outage is detected. These are strong, occasionally pricey, and long-lasting choices.

Solar Generator: A solar generator can be the best option if you don’t want to spend several thousand dollars on a solar battery. Just make sure to charge them beforehand because they won’t charge if the power is down.

Is It Necessary to Disconnect Solar Panels When Adding New Modules to the System?

Your system should be completely turned down in accordance with the shutdown instructions contained in the user handbook or the operational guidelines supplied by the inverter manufacturer when adding new modules to the system for safety reasons as well as to increase the life span of the system.

A solar panel quick disconnect is a simple maneuver that can be carried out. To accomplish this, safety equipment must be worn, the AC/DC disconnect switch must be turned off, the panels must not be producing power, the voltage must be checked, and finally, the MC4 connectors and mounting hardware must be unplugged.

Is It Ok to Leave the Solar Panels on When Cleaning?

According to the shutdown instructions outlined in the user manual or the operating instructions provided by the inverter manufacturer, your system should be completely shut down before cleaning. DC Systems must be entirely turned off.

To ensure that no dirty water runoff enters your tank, temporarily disconnect or shut off any rainwater tanks that are installed and attached to your guttering system. If feasible, clean your panels off the ground for safety reasons. To spray water onto your panels, use a hose. To enable the stream of water to reach the panels, use a hose with an appropriate nozzle.


Whether it be a solar inverter or a conventional inverter, the fundamental function of an inverter is to convert DC power to AC power. Depending on the circumstances and arrangement, one could require a few extra functions, which can be added to existing home UPSes and inverters with no effort.
