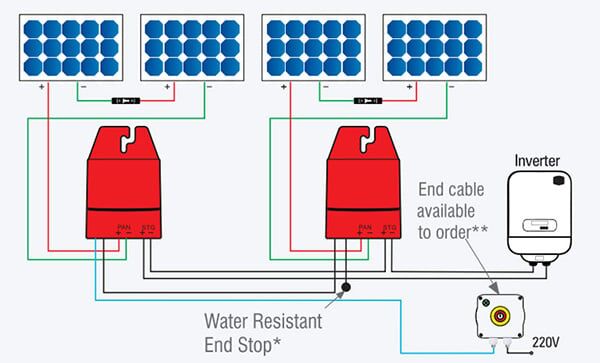

ZJBENY Rapid Shutdown Circuit Diagram

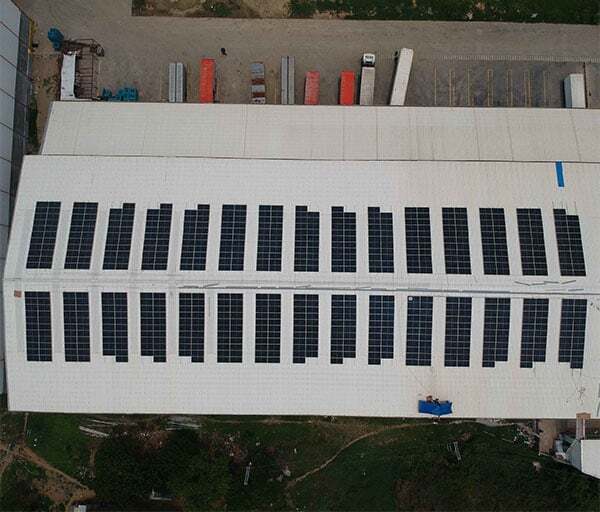

A 200KW commercial solar rooftop project in Bulacan, Philippines with 200kwp solar installation, 2020.

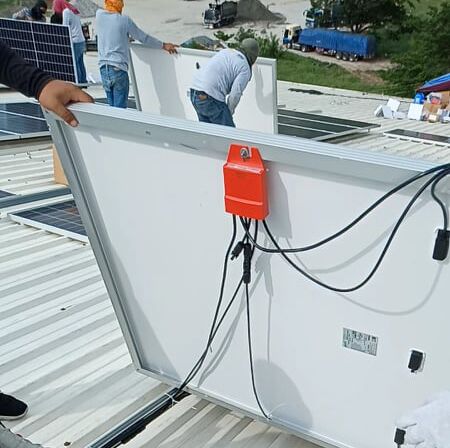

We are proud to be the supplier of rapid shutdown solution in the project.
The solution is operating good and protecting the system from DC arc fault damage or fire.
The solution includes emergency button switch for fireman fast to reach and switch off the DC power.
