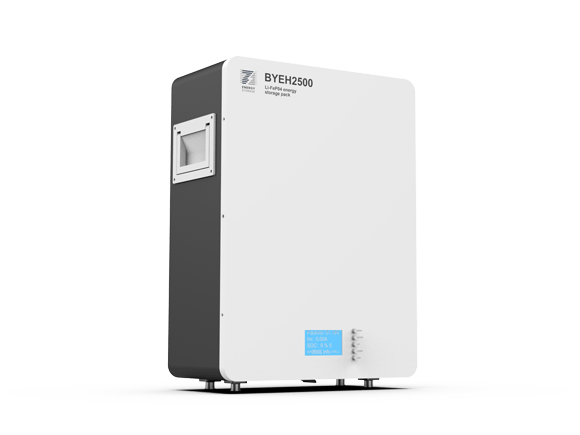

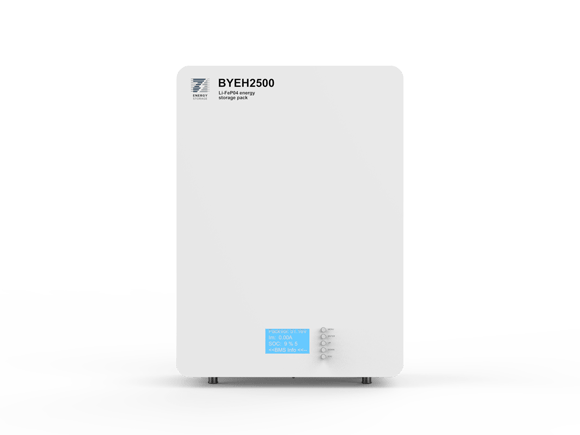

Wall-mounted LFP Energy Storage Battery Pack 2kWh-10kWh

The residential LFP energy storage pack was independently designed and developed by BENY. Widely used in the energy storage field with on-grid inverters, off-grid inverters, and hybrid inverters.

Highlights :

  • 2kWh-10kWh
  • Low Voltage 48V
  • 50Ah-200Ah
  • Discharging Temperature: -20℃~ 60℃
  • IP54
  • CE-Certified icon
  • CB icon
  • rohs
  • 1000 6 1

Residential LFP Energy Storage Pack

BENY residential LFP energy storage pack has the characteristics of safety and reliability, multiple protection of software and hardware, long service life, convenient capacity increase, beautiful appearance, simple installation, etc. Supporting off-grid inverters and hybrid inverters, widely used in the energy storage field.



With an intelligent Battery Management System (BMS), achieve advanced monitoring and management.

Low power consumption mode / Overcharge Protection / Over-discharge protection / Over current protection / Temp. protection / Balancing function / Floating charge function

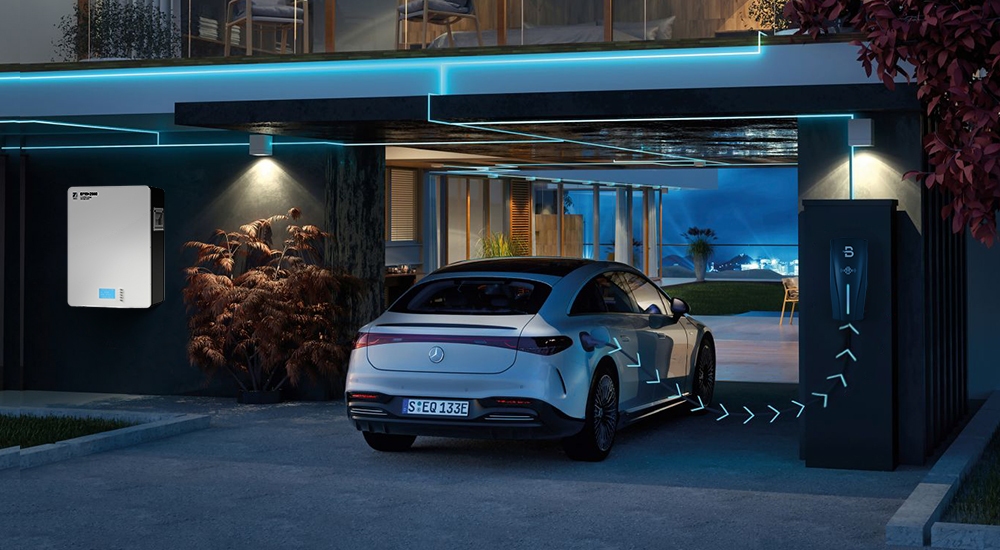

BENY Solar PV, Energy Storage, and EV Charging Solution

  • 1000X550 4 3

Perfectly compatible with BENY EV charger and photovoltaic protection products, to achieve a perfect household solar PV, energy storage, and charging integrated solution. No need to worry about fluctuations in electricity prices, bring you a cleaner and more environmentally friendly life.

  • Compatible with most brand and model inverters
  • Multiple protection of software and hardware
  • Simple installation, saving time and cost
  • Large heat dissipation area

SPECIFICATION

Items Condition Specification
Model / BYES-2500 BYES-5000 BYES-7500 BYES-10000
Nominal energy /kWh Nominal value 2.56 5.12 7.68 10.24
Nominal voltage /V Nominal value 48 48 48 48
Nominal capacity/Ah Nominal value 50 100 150 200
Internal impedance Fresh cell ≤80 ≤30 ≤25 ≤20
mmSize /mm L*W*H 450*400*200 450*400*200 700*400*200 700*400*200
Weight /kg / 32 56 80 104
Operating voltage /V / 57.6
Discharging voltage /V / 44.8
Standard charging and discharging current / 0.25C/0.5C
Maximum charging and discharging current / 0.5C/1C 0.5C/0.5C
Charging temperature /℃ / 0℃~ 60
Discharging temperature /℃ / -20℃~ 60
Storage temperature /℃ / 0~35
Recommended DOD / ≤98%
Cycle life 0.2C, 80% DOD,
25±2℃
5000
Communication function / RS232/RS485/CAN
Protection class / IP54
Shipping SOC / 20%~50%
