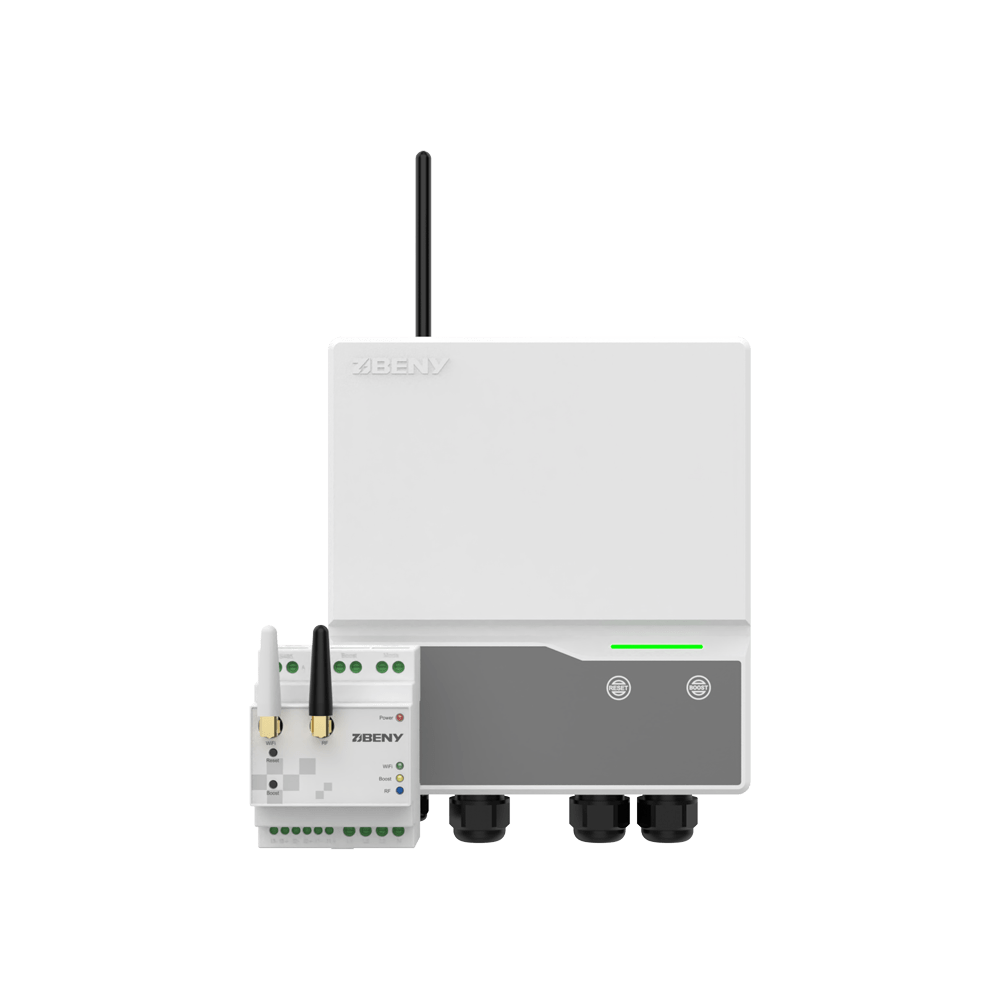

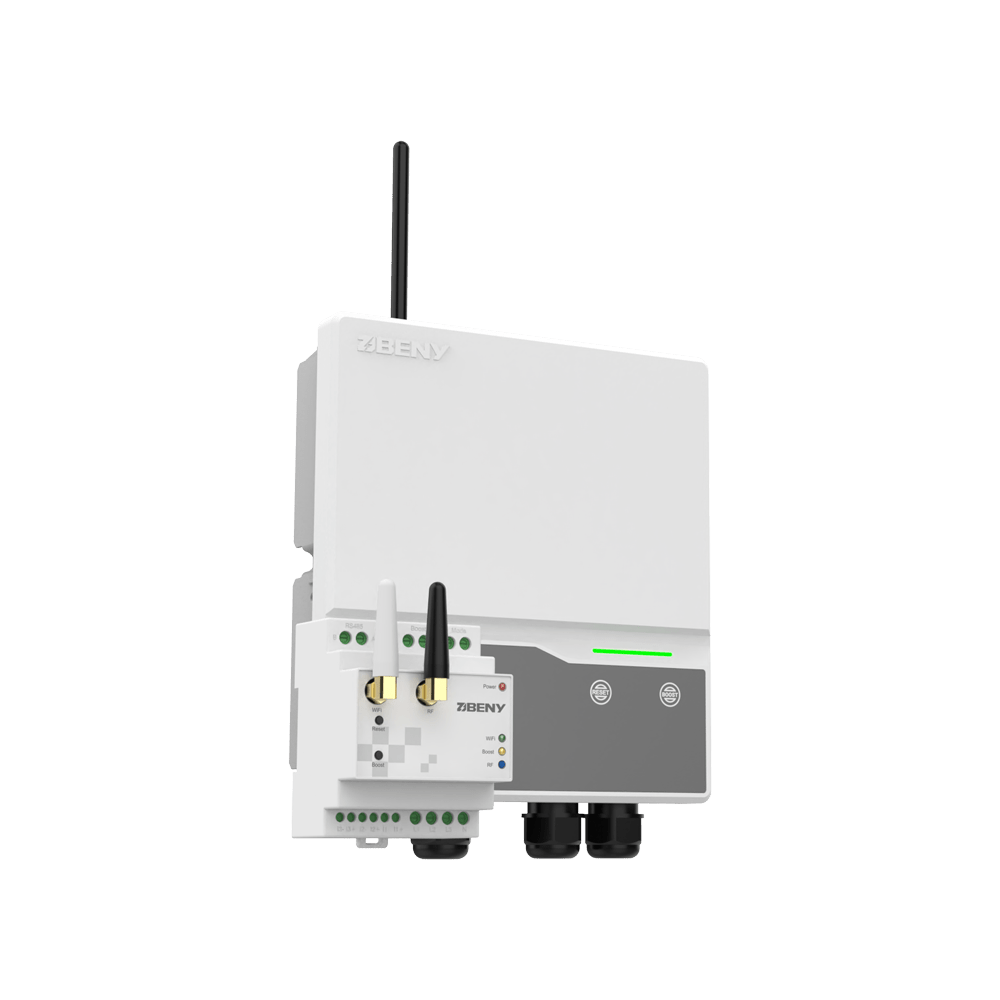

The Beny Energy Management System is specifically designed for intelligent energy management. This system is suitable for integration with home grids equipped with photovoltaic power systems, consisting of BEMS measuring devices and BEMC control devices.
In the era of energy transition, the advantages of energy management systems lie not only in improving energy efficiency but also in providing households with a sustainable and intelligent approach to energy management.

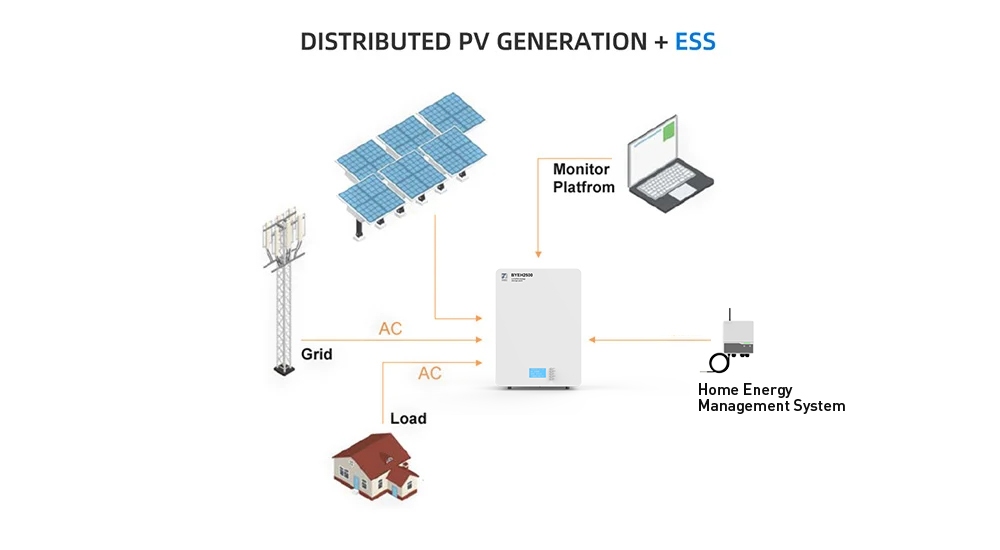

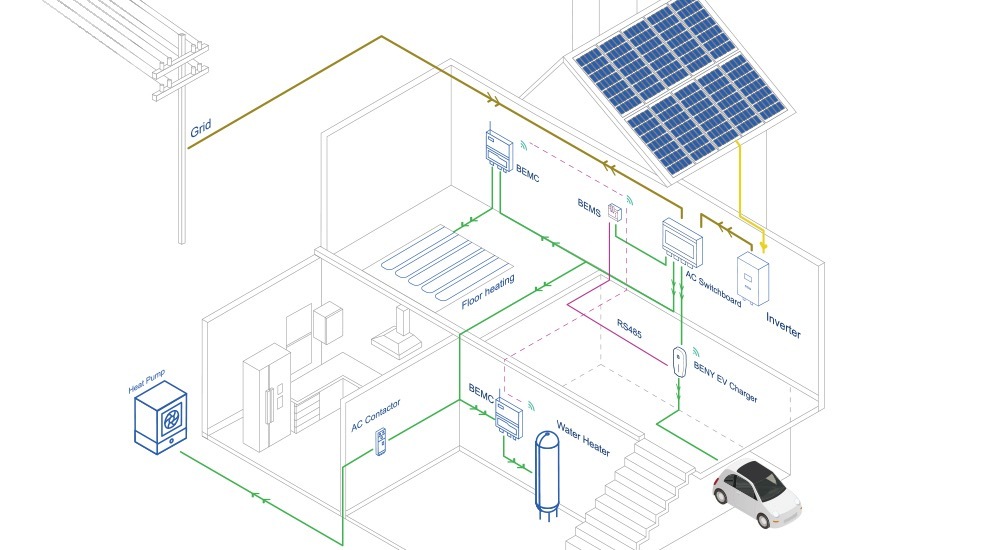

A smart energy management system typically includes photovoltaic power systems, energy storage, heat pumps, electric vehicle chargers, energy management tools, and household appliances.
| Model Type | BEMS | BEMC |
| Power voltage | 230V±15% 50 Hz | 230V±15% 50 Hz |
| Power consumption | Max. 3W | Max. 3W |
| Measuring range (voltage) | 0-275V | 0-275V |
| Measuring range (current) | 0-100 A | 0-20 A |
| Output current | —– | Max. 3 x 16 A |
| RF communication band | 433MHz | 433MHz |
| RF communication range | Min. 30 m (building) | Min. 30 m (building) |
| WIFI communication band | 2.4GHz | —– |
| Bluetooth communication band | 2.4GHz | —– |
| MODE input | 180-250 V;50 Hz | —– |
| BOOST input | 180-250 V;50 Hz | —– |
| Range of measured temperature | —– | -55°C ~ 125°C |
| Environment Temperature | -40°C ~ 55°C | -40°C ~ 55°C |
| Level of protection | IP20 | IP65 |
