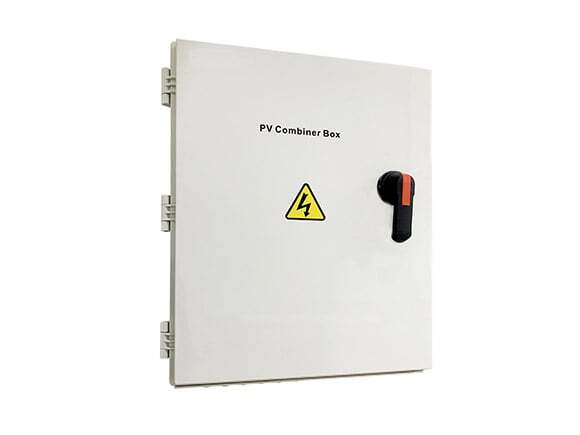

1500V DC Combiner Box 12 In 1 Out BHS-12-1

BENY Electric BHS-12/1 1500V DC Solar PV Combiner Box 12 In 1 Out 250A DC Isolator Switch for On/Off Grid Solar Panel System

Highlights :

  • Customized Solutions
  • Rated for 1500V DC
  • UL98B listed and IEC 250A integrated DC disconnects
  • Up to 18 input circuits and customized solutions
  • Type 2 DC SPD and Type 1+2 for option
  • Finger safe touch fuse holder at 2P
  • NEMA4X, IP65 polycarbonate enclosure
  • TUV 100X100
  • rohs
  • UL-Certifed icon

1500Vdc Solar Combiner Box

The most compact and cost-efficiency combiner for 1500V solar PV system.



Door-clutch operation UL98B/IEC60947 DC disconnect switch up to 1500V 250A.



1500V finger safe touch DC fuse holders for both positive and negative poles for over-current protection.



1500V DC surge protection type 2 to for over-voltage protection. (Type 1+2 for option)



Customized solutions are available for different projects requirements.

SPECIFICATION

Model BHS-12/1 1500V
Certificate TUV/ UL
Standard IEC62109

IEC61439

Warranty 5 Years for any quality problems
Voltage 1500V
Protection Degree IP65
Dimension 650*550*185mm
