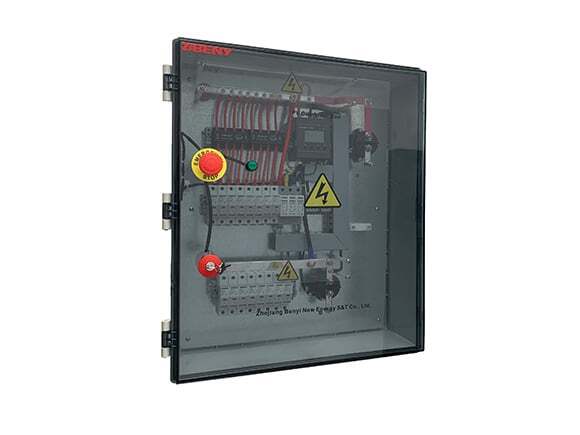

AFCI Combiner Box BHSZ

BENY Electric BHSZ 600 or 1000V DC Arc Fault Circuit Interruption (AFCI) Combiner Box

Highlights :

  • 600 or 1000VDC
  • All DC components are UL listed
  • 8, 12, 18, 20 strings input
  • DC contactors up to 300A
  • Finger safe touch fuse holder for negative and positive poles
  • TUV 100X100 icon
  • rohs
  • AFCI10

AFCI Combiner Box

The Arc Fault Circuit Interruption Combiner Boxes monitor each string currents, voltages and the temperature in enclosure, the integrated automatic contactors triggered when there is arc fault detected, provides solar PV system safety.



DC contactors can be remote controlled for easier system maintain, the working life is up to 10000 cycles.

SPECIFICATION

Model BHSZ-8/1
Max Rated Voltage



600VDC / 1000VDC



Number of Input



8



Max Input Current Per Each String



10A / 15A / 20A / 25A / 30A



Connection Type of Input



PG09

MC4



Input Cable Size



Ø4-8mm



Max Output Current



100A / 125A / 250A



Standard



IEC62109 / IEC61439 (EN62109 / EN61439)
