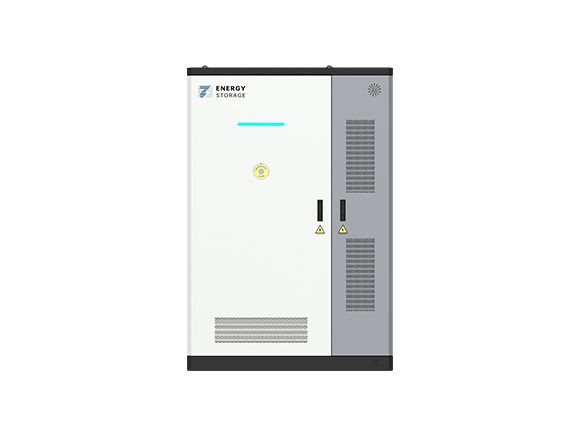

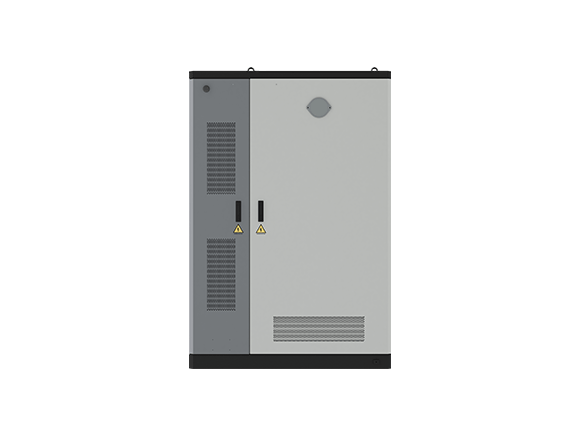

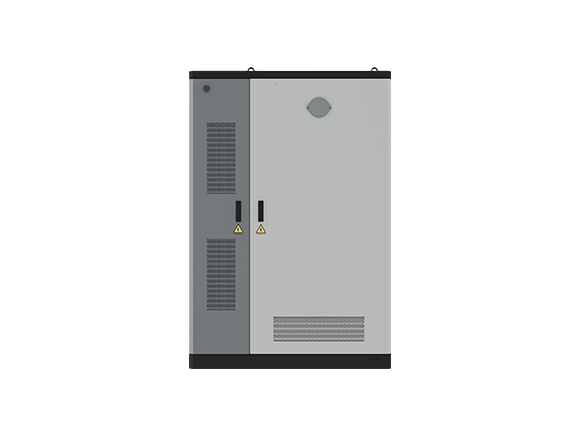

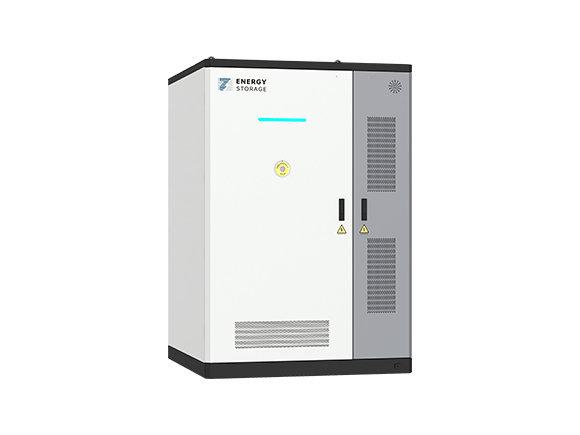

100kW/230kWh Liquid Cooling Energy Storage System

The 100kW/230 kWh liquid cooling energy storage system was independently designed and developed by BENY. Widely used in the energy storage field with grid-tied inverters, and off-grid inverters.

Highlights :

  • Liquid Cooling
  • 300Ah, LFP Battery
  • Operating Temperature: -20°C to +55°C
  • Grid-Tied/ Off-Grid
  • IP55
  • CE-Certified icon
  • beny liquid energy storage features

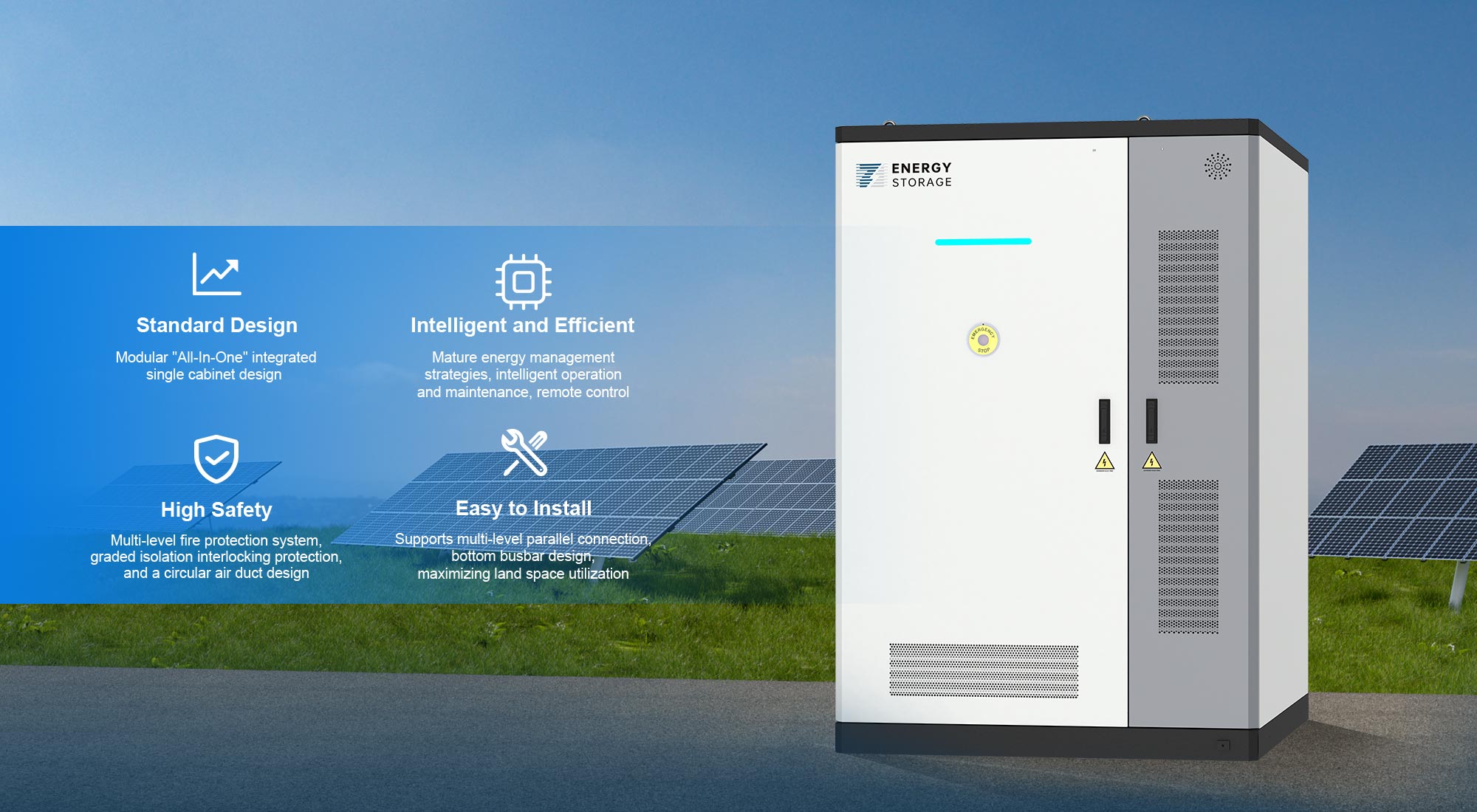

Liquid COOLING ENERGY STORAGE SYSTEM

The liquid cooling energy storage system, with a capacity of 230kWh, embraces an innovative “All-In-One” design philosophy. This design features exceptional integration, consolidating energy storage batteries, BMS (Battery Management System), PCS (Power Conversion System), fire protection, air conditioning, energy management, and other components into a unified unit, making it versatile and well-suited for diverse applications.

  • beny liquid energy storage applicaiton

FAST, RELIABLE, AND FEATURE-PACKED ENERGY SOLUTION

This product features a prefabricated cabin design for flexible deployment, convenient transportation, and no need for internal wiring and debugging. It offers easy and space-saving expansion up to 1000kW/2300kWh and an IP55 rating for harsh environments. Enjoy diverse benefits like peak & valley arbitrage, emergency backup power, grid balancing, and multi-level parallel connection.

BENY SOLAR PV, ENERGY STORAGE, AND EV CHARGING SOLUTION

  • beny liquid energy storage

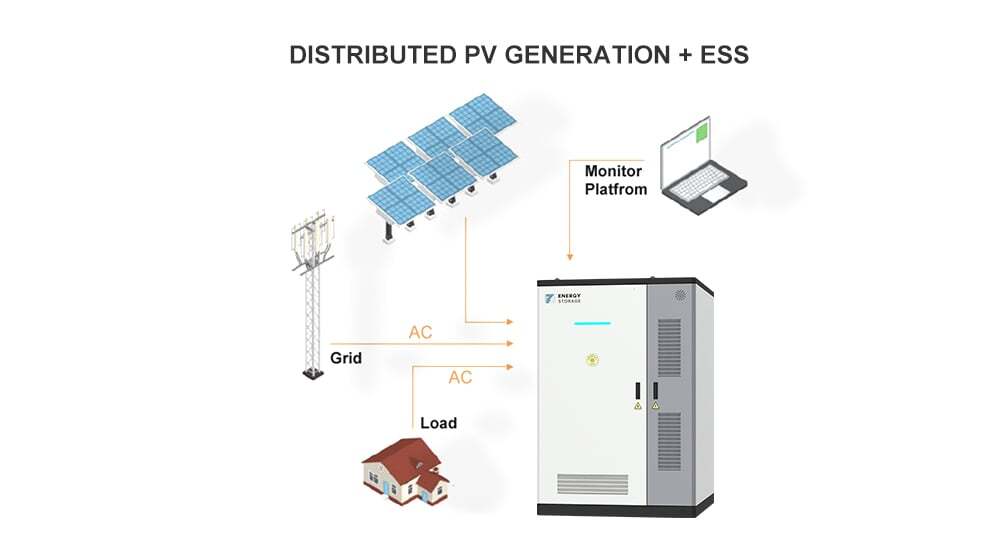

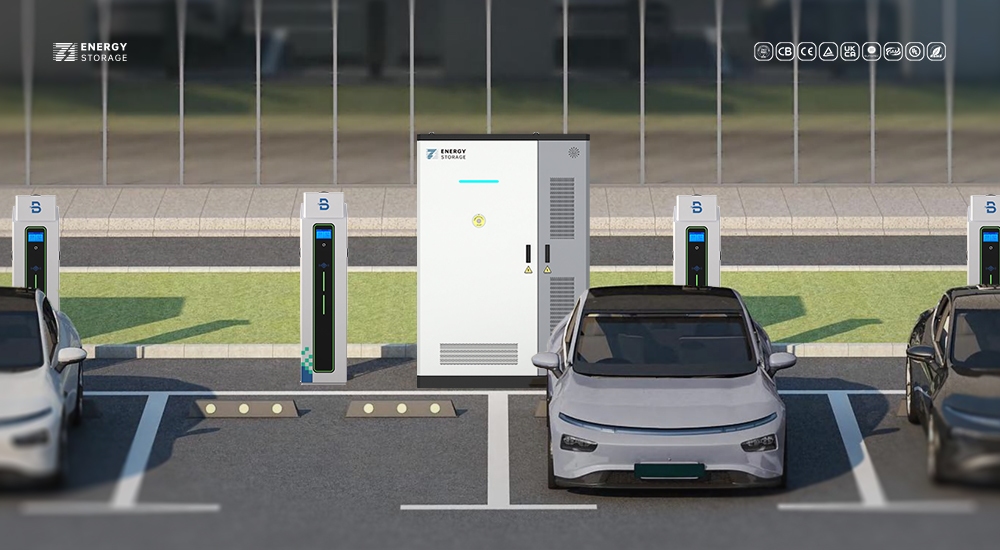

It is well-suited for industrial and commercial environments that demand robust grid continuity. This system can address various needs, including communication energy storage, grid frequency modulation energy storage, energy storage for wind and solar microgrids, distributed energy storage for large-scale industrial and commercial facilities, energy storage for data centers, and support for photovoltaic power generation businesses in the field of new energy.

  • Industrial park
  • Commercial complexes
  • Charging stations
  • Hospitals
  • Schools
  • Data centers

SPECIFICATION

AC Parameters
Rated Power 100kW
Rated Voltage AC400C
Rated Current 150A
Rated Frequency 50Hz/60Hz
Isolation Method Non-isolated
DC Parameters
Battery Type 300Ah, LFP Battery
Battery Rated Capacity 230.4kWh
Battery Rated Voltage 768V
Battery Voltage Range 624V ~ 876V
Rated Charge/Discharge Current 150A
Cycle Life ≥8000 cycles (at 25°C, 0.5C, 80% DOD)
System Parameters
System Energy Efficiency ≥92%
Operating Modes Grid-Tied/ Off-Grid
Communication Method CAN, 485, TCP/IP
Protection Level IP55
Anti-Corrosion Level C3
Fire Protection Aerosol
Operating Temperature -20°C to +55°C
Operating Humidity 0% to 95% (no condensation)
Altitude ≤2000m (derating above 2000m)
Cooling Method Intelligent Liquid Cooling
Overall Dimensions (WDH) 1400mm* 1400mm* 2000mm
Weight Approximately 2.5 tons
