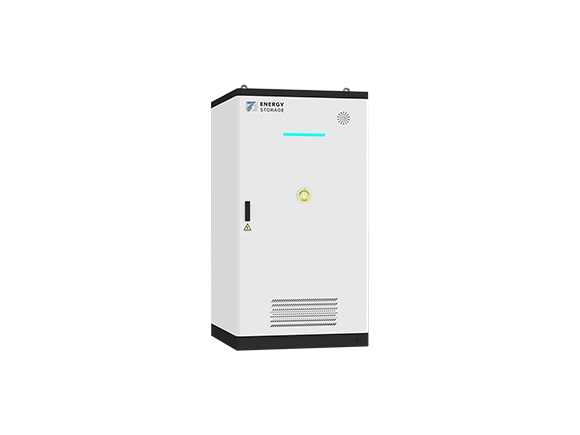

The 100kW/230 kWh air cooling energy storage system was independently designed and developed by BENY. Widely used in the energy storage field with grid-tied inverters, and off-grid inverters.

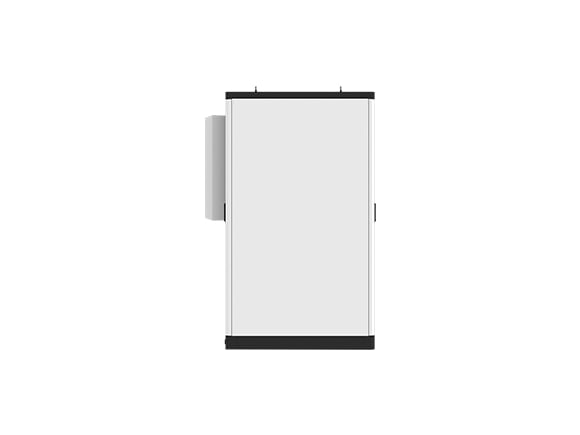

The 100kW/230kWh air cooling energy storage system cabinet adopts an “All-In-One” design concept, with ultra-high integration that combines energy storage batteries, BMS (Battery Management System), PCS (Power Conversion System), fire protection, air conditioning, energy management, and more into a single unit, making it adaptable to various scenarios.
This product features a prefabricated cabin design for flexible deployment, convenient transportation, and no need for internal wiring and debugging. It responds quickly, boasts high reliability, and offers functions such as peak shaving, power capacity expansion, emergency backup power, grid balancing, capacity management, and multi-level parallel connection.

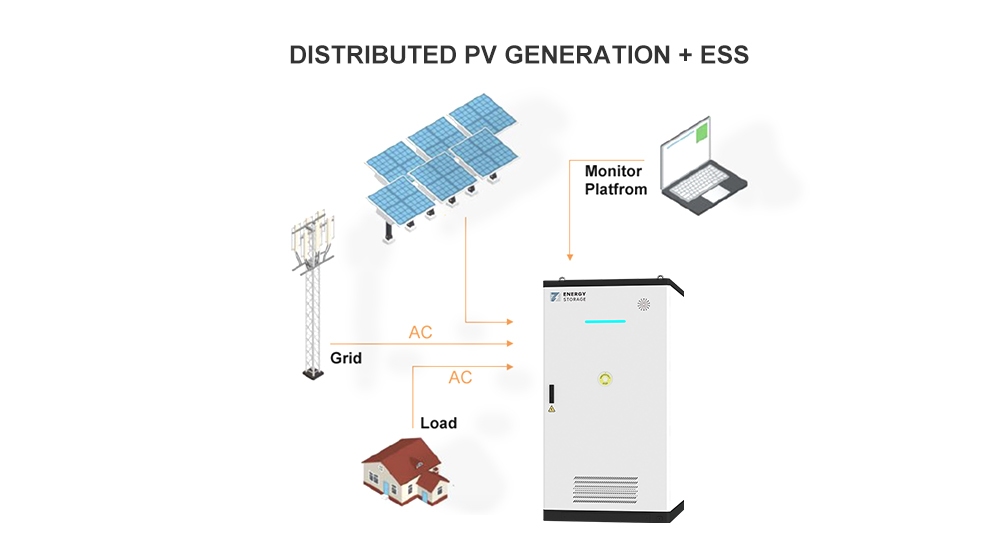

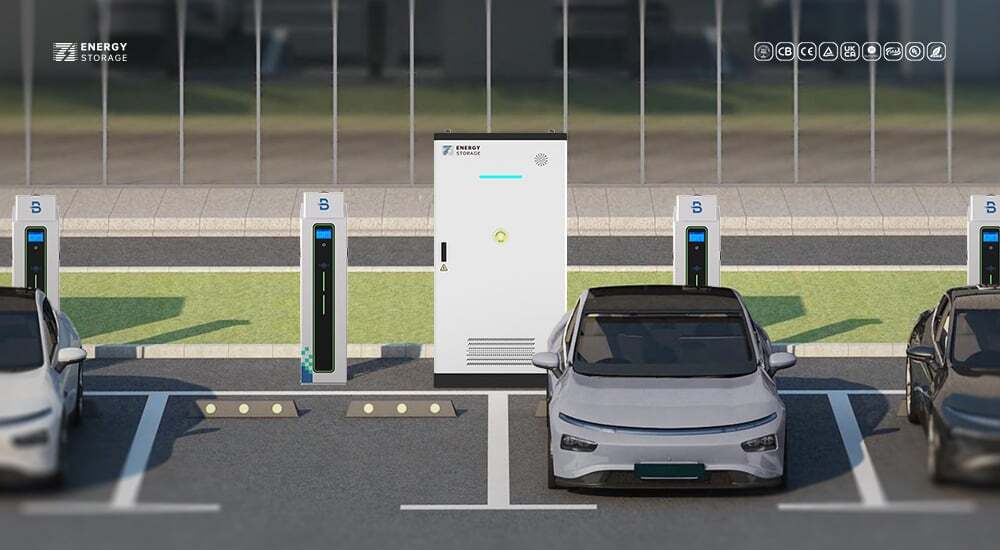

It is suitable for industrial and commercial situations with high requirements for grid continuity and can cover communication energy storage, grid frequency modulation energy storage, wind and solar microgrid energy storage, large-scale industrial and commercial distributed energy storage, data center energy storage, and photovoltaic power generation business in the new energy field.
| AC Parameters | |
| Rated Power | 100kW |
| Rated Voltage | AC400C |
| Rated Current | 150A |
| Rated Frequency | 50Hz/60Hz |
| Power Factor | 0.99 |
| Output Harmonics | < 3% |
| Connection Method | 3W+N+PE |
| Isolation Method | Non-isolated |
| DC Parameters | |
| Battery Type | 300Ah, LFP Battery |
| Battery Grouping Method | 1P240S (1P24S*10) |
| Battery Rated Capacity | 230.4kWh |
| Battery Rated Voltage | 768V |
| Battery Voltage Range | 624V to 876V |
| Rated Charge/Discharge Current | 150A |
| Cycle Life | ≥8000 cycles (at 25℃, 0.5C, 90% Depth of Discharge) |
| System Parameters | |
| System Energy Efficiency | ≥90% |
| Operating Modes | Grid-Tied / Off-Grid |
| Communication Method | CAN, 485, TCP/IP |
| Protection Level | IP55 |
| Anti-Corrosion Level | C3 |
| Noise | ≤65dB |
| Fire Protection | Aerosol |
| Operating Temperature | -20°C to +55°C |
| Operating Humidity | 0% to 95% (no condensation) |
| Altitude | ≤2000m (derating above 2000m) |
| Cooling Method | Intelligent Air Cooling |
| Overall Dimensions (WDH) | 1100mm*1800mm*2050mm |
| Weight | Approximately 2.4 tons |
