UL9540 Explained: Essential Safety Standards for Energy Storage Systems

ESS is becoming more important as a means of supporting renewable energy generation, managing the grid, and providing backup power during emergencies. Nevertheless, the problem of the safe operation of ESS safety has emerged as one of the most pressing issues following regulatory requirements, as these systems are increasingly used. This is where UL9540, a vital safety standard for energy storage systems, is useful. In this blog post, you’ll learn about:

• What UL9540 certification entails.
• The basic differences between UL9540 and UL9540A testing.
• How UL9540 is important to energy storage safety and standards.
• How UL9540 is related to international standards such as IEC and NFPA.

What is UL9540?

UL9540 is a safety standard for electrochemical ESS, set by Underwriters Laboratories, an independent product safety certification organization. It aims to make certain that the design, installation, and use of these systems are safe and standard. The standard applies to technologies that store electrical energy including lithium-ion batteries, lead-acid batteries, fuel cells, flywheels, and other electrochemical energy storage systems.

A system that is UL9540 certified proves that it meets the safety standards set by UL hence safe to operate under normal circumstances. The certification encompasses areas such as installation, operation, and maintenance with specific emphasis on fire and electrical safety to reduce hazards in both residential and commercial use.

What Conditions Must an Energy Storage System Meet for UL9540?

For an ESS to be UL9540 certified, the following safety aspects have to be met: energy control, thermal control, fire protection, component testing, and durability. These requirements make sure that they work safely and effectively in residential and commercial places.

• System Performance: The ESS needs to undergo tests to confirm that it can store and discharge energy without reaching its maximum limit.
• Thermal Runaway Protection: The system needs to prove that it cannot overheat and cause thermal runaway that can lead to fires.
• Fire Safety: It has to meet the requirements of the IFC and NEC, which means that the fire risks in normal and emergencies have to be minimal.
• Component Testing: All the elements like modules and enclosures have to fulfill certain safety requirements and operate safely within the system.
• Environmental Durability: The system must be checked on how well it performs in different conditions especially if it is to be installed outside the building.

Why Is UL9540 Crucial for Energy Storage Systems?

UL9540 is a holistic approach that guarantees that energy storage systems are developed with battery safety, safety, and reliability as their foundation, thus enabling their easy integration into energy structures. The UL certification focuses on risks like thermal runaway, fire risks, and system failures, which are more common with modern battery technologies like lithium-ion. UL9540 has strict testing procedures to guarantee that ESS can store and discharge energy without being dangerous under normal or abnormal circumstances.

One of the major strengths of UL9540 is that it is based on regulatory codes such as the International Fire Code (IFC) and the National Electrical Code (NEC) that many jurisdictions mandate for ESSs. Thus, by following these standards, manufacturers can eliminate legal issues and achieve faster market entry.

From the manufacturers’ perspective, UL9540 certification increases the reliability of the product and reduces the risk of system failures or product recalls. The certification also instills confidence in the customers and the regulators that the system is safe to use in homes, businesses, and even large-scale grid applications.

What is UL9540A Testing?

UL9540A is a very important test procedure that is used to determine the safety of ESS under various conditions such as thermal runaway, a condition where a battery catches fire due to overheating. This test looks at the response of the system in such situations, for instance, the amount of heat, energy, and gas that is emitted and whether the fire could extend to other areas.

While UL9540 is more concerned with the overall performance and safety of an ESS under normal conditions, UL9540A goes further to look at how the system behaves in the event of failure and compliance with codes. It recreates conditions that are likely to be worst to test how well the safety features of the system can manage the risks that may be present. This method assists in defining important fire safety measures, for example, changing the ventilation or fire extinguishing near ESS installations, especially in residential or dangerous areas.

UL9540A is an extension of UL9540 in a way because it covers possibilities of failure that may occur in exceptional conditions and in the worst-case scenario, the system is designed to prevent further damage and avoid endangering other structures or people. This dual approach provides the best safety for normal operation and for failure conditions that may occur from time to time.

Differences Between UL9540 and UL9540A

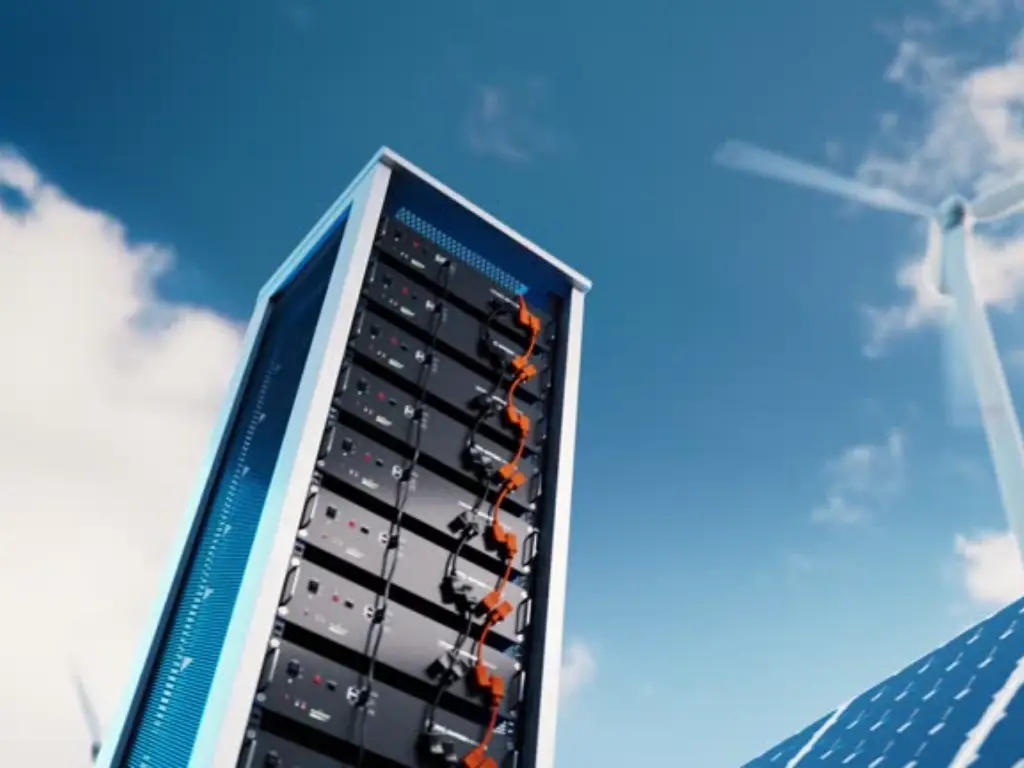

Applications of Energy Storage Systems with UL9540 Certification

Energy storage systems (ESS) with UL9540 certification are used across several key sectors, ensuring they meet strict safety and performance standards tailored for each application:

• Residential Storage: Certified systems ensure that homes have safe and reliable backup power while also incorporating renewable energy such as solar energy. UL9540 makes certain that these systems do not overheat and are compliant with fire safety codes so that the homeowner can use energy effectively.
• Commercial and Industrial Use: Organizations need certified ESS to properly address energy consumption and adhere to the safety standards of the country. UL9540 certification increases operational safety, reducing hazards that come with high power consumption in industries.
• Renewable Energy Integration: In renewable configurations, UL9540 ensures that energy storage is safe and the system can function without incident especially when working with fluctuating power production from renewable resources such as wind and solar.
• Utility-Scale Storage: In the case of large grid applications, UL9540 guarantees that utility-scale systems are capable of safely storing and discharging large amounts of energy and preventing infrastructure from being at risk.

Why Should You Choose a UL9540-Certified Energy Storage System?

There are numerous merits involved when a buyer opts for a UL9540-certified energy storage system (ESS) rather than an uncertified one. These differences are especially important when considering the three areas of safety, reliability, and market acceptance.

1. Enhanced Safety Features: Within a certification program, all possible hazards, such as thermal runaway or fire, are well evaluated and such dangers greatly minimize the possibility of accident occurrence. Uncertified systems, on the other hand, may miss such critical-risk mitigation measures increasing the possibility of some form of improper functioning.
2. Reduced Regulatory & Insurance Barriers: UL9540 level is also a requirement for any legal installation in many jurisdictions. This helps in granting approvals and securing insurance cover which tends to be more cumbersome and expensive with uncertified systems.
3. Greater Consumer Confidence in the Products: The certified system possesses higher levels of customers and regulators’ confidence than one that is non-certified. This can drive an increase in the manufacturers’ ability to command higher prices for the products since the resale value is expected to be higher and brand image catalyzes easier penetration in the market.

Global Standards for Energy Storage Systems

As with most technologies, standardization is an important factor that defines the safety and efficiency of energy storage systems in the global context. UL9540 is one of the most significant standards in the U. S. market, but it is not limited to individual parts as it is a part of the global system with the help of cooperation with other international and domestic standards.

In the United States, UL9540 works in parallel with ANSI, which sets out a range of national safety and performance standards for energy storage systems, similar to the June update. ANSI has a systematic approach to standardizing various technical standards and making them more uniform. Moreover, NFPA (National Fire Protection Association) provides certain recommendations that are related to fire safety, which guarantees the stability of energy storage systems in emergencies and reduces the risks of fire.

In Canada, the SCC (Standards Council of Canada) has a major role to play in harmonizing the national standards with UL9540. In partnership with UL, SCC guarantees that the energy storage systems available in the Canadian market are as safe as those in the U. S market thus improving the safety standards of the region in North America.

At the international level, the IEC (International Electrotechnical Commission) offers international standards including IEC 62485 which outlines safety and performance standards for battery systems and energy storage systems. These standards help countries implement harmonized practices that can be used to ensure the safe and efficient utilization of battery systems and energy storage technologies across borders.

Conclusion

UL9540 certification lays a good base for the present and future safety of energy storage systems (ESS). With energy storage still being a relatively new field and with the growing adoption of renewable energy sources such as solar and wind, this certification plays a part in preparing the ground for the next generation of safe, efficient, and large-scale ESS technologies.

In following UL9540 and UL9540A testing, manufacturers are not only responding to current safety issues but also designing systems that are compliant with future standards and technology. This certification helps in creating better and more effective systems that can be implemented in homes, offices, and even large-scale industries. With increasing energy requirements and renewable energy projects, UL9540 will be instrumental in certifying that these systems are safe and ready for the future to support widespread storage systems in smart grids and resilient infrastructure.
