2 Guns DC EV Charging Station BBDC

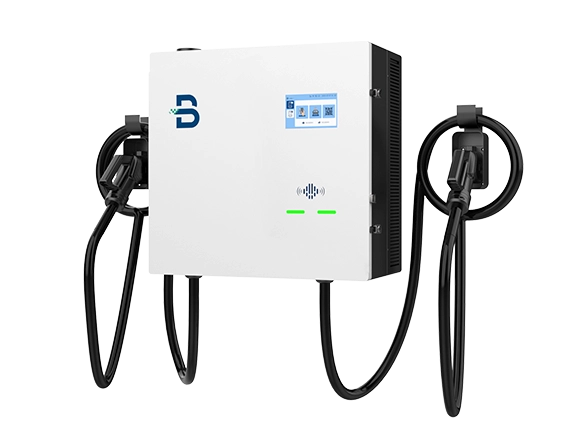

Beny 2 Guns Wall-mounted /Floor-mounted DC EV Charger features a compact and lightweight design, making installation effortless even in limited spaces.

                    Highlights :
                    40kW-60kW
Dual Charging Outlets (CCS1/CCS2/GBT/CHADEMO/NACS)
7inch LCD Screen
OCPP 1.6
IP55
Compact and Lightweight Design



Download Datasheet Request A Quote

Fast, Efficient and Safe EV Charging Station

The Beny BBDC-D Series 2-Gun Wall-mounted DC EV Charger is engineered to deliver high power in a compact form, solving the space constraints many commercial and fleet operators face today. With high volumetric power density, it achieves powerful DC charging performance within a sleek wall-mounted design—ideal for parking lots, dealerships, and residential complexes.

Built for reliability, the BBDC-D series adopts full protection of hardware and software, IP55 weatherproof housing, and natural cooling design, providing long-term stability even in harsh outdoor environments.

FEATURES/ADVANTAGES

40kW-60kW

Wall Mounted/Floor Mounted

Compact and Lightweight Design

Ethernet/4G/WiFi

RFID/APP Control

OCPP 1.6J

Time-saving - Fast charging
Power saving - High conversion efficiency and low standby power consumption
High Safety - Dual protection to both manual operation and vehicles

SPECIFICATION

Structure Description
Shell material	Sheet Meal
Dimension	700735325(LWH mm)
Weight	≤140kG		≤150kG
Installation Method	Wall-mounted/Column installation (optional)
Cable routing	Bottom inlet wiring, up outlet wiring
Cable length	5 M
Charging outlets	Double(CCS1+CCS1) Double (CCS1+CHADEMO) Double(CCS2+GBT) Double(CHADEMO+CHADEMO) Double(CCS2+CCS2)	Double (CCS2+CHADEMO) Double(CHADEMO+GBT) Double(CCS1+CCS2) Double(CCS1+GBT) Double(GBT+GBT)	Double (CCS1+NACS) Double(CCS2+NACS) Double(GBT+NACS) Double(CHADEMO+NACS) Double(NACS+NACS)
Connectivity authorization	RFID, App
Screen	7 Inch LCD Screen/LED Light
Electrical Specification
AC input voltage	AC380V-415V,3P+N+PE
Rated Input Current	68A		102A
Input frequency	50Hz/60Hz
Rated power	40KW		60KW
Output voltage range	CCS1/CCS2/GBT/NACS: 150 Vdc -1000 Vdc CHADEMO: 150 Vdc -500 Vdc
Output current	0~133.3A		CCS1/CCS2:0~200A; GBT/NACS:0~200A; CHADEMO:0~125A
Efficiency	≥95%
Power factor	≥0.99(load:100%)
Functionate design
User Interface	Emergency stop button,LED indicator,card swiping,touch screen
Charging stands	IEC 61851-21-2:2021;IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019;EN 61851-23:2014; EN 61851-24:2014
Communication
OCPP	OCPP 1.6
Network interface	Ethernet/4G/Wifi
Environment condition
Application place	Indoor/Outdoor
Working latitude	<2000m
Storage Temperature	-30°C~+85ºC
Working temperature	-30°C~+50°C
Working humidity	5%~95%
Protection level	IP55 IK10( Screen IK08 )
Natural cooling	Forced-air cooling
Warranty	24 months warranty
Security design	Over/under voltage protection,overlord protection,current leakage protection,grounding protection,over temp protection,lightening surge protection
