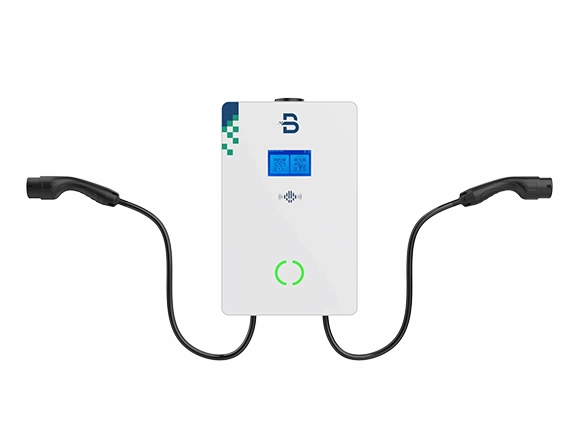

  • BENY OCPP Type2 Model 3 AC EV Charger3

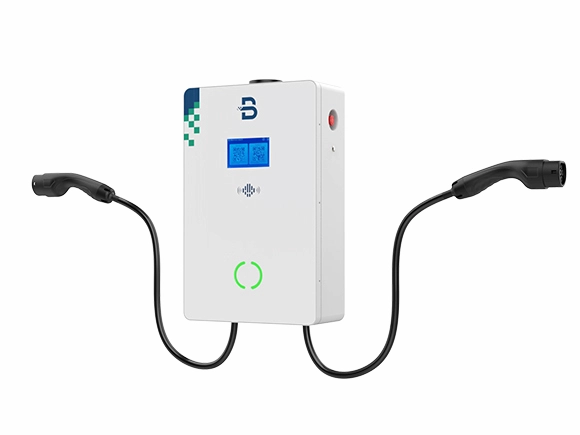

  • BENY OCPP Type2 Model 3 AC EV Charger

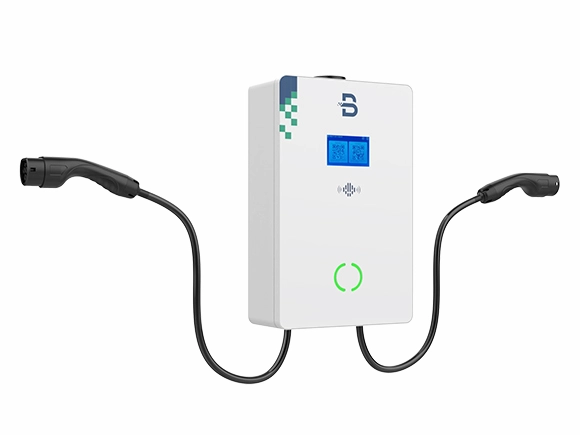

  • BENY OCPP Type2 Model 3 AC EV Charger2
  • BENY OCPP Type2 Model 3 AC EV Charger3
  • BENY OCPP Type2 Model 3 AC EV Charger
  • BENY OCPP Type2 Model 3 AC EV Charger2

Type 2 Mode 3 EV Charger

This Mode 3 AC EV charger is built in full compliance with the IEC-61851-21-2 standard. Featuring a dual-socket design, it enables simultaneous charging for two vehicles, helping reduce installation and operation costs.

Highlights :

  • IP65 Rating
  • Full Protection
  • Wi-Fi/Ethernet /Bluetooth/4G
  • OCPP1.6J
  • Cover Opened Detection
  • Human Induction
  • Temperature Monitoring
  • WPS Wifi Connection
  • Backup Power
  • CE-Certified icon
  • CB icon
  • TUV Icon 100*100
  • ocpp 1 6 icon
  • ROHS icon 100*100

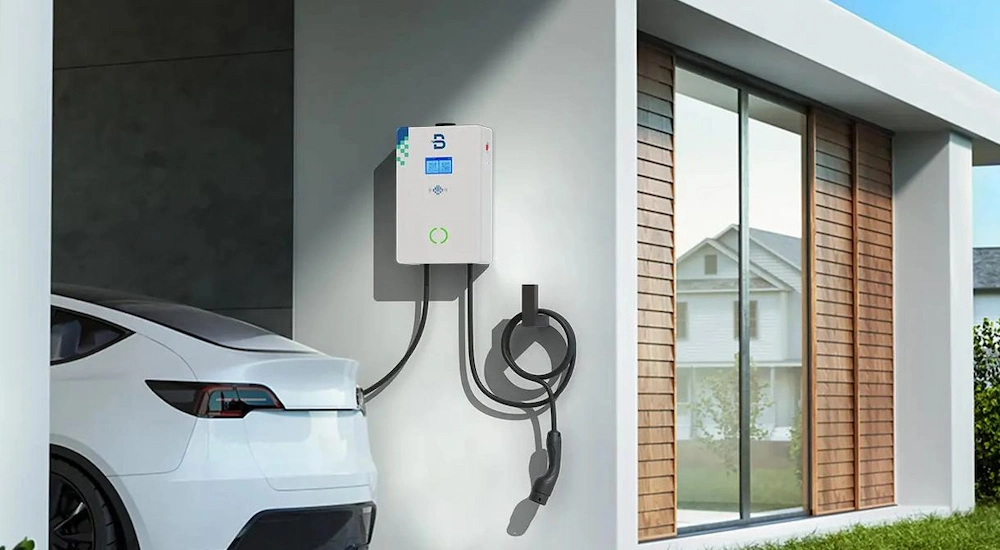

  • mode 3 ac ev charging

Fast, Efficient and Safe AC EV Charging Station

The BENY 2*7kW/2*22kW AC EV Charger is designed to deliver smart, efficient, and user-friendly charging for both residential and commercial applications. Equipped with a clear LCD display, it provides real-time charging data with exceptional visibility. Its human-induction function automatically lights up the screen when a user approaches, reducing power consumption and extending the charger’s service life. The dual-socket design enables simultaneous charging for two vehicles, significantly lowering installation and operating costs. With the BENY mobile app z-box, users can remotely control the charger, schedule charging sessions, and view historical energy consumption at any time. Built with an IP65-rated enclosure, the charger offers robust protection against dust and water, ensuring reliable performance in both indoor and outdoor environments.

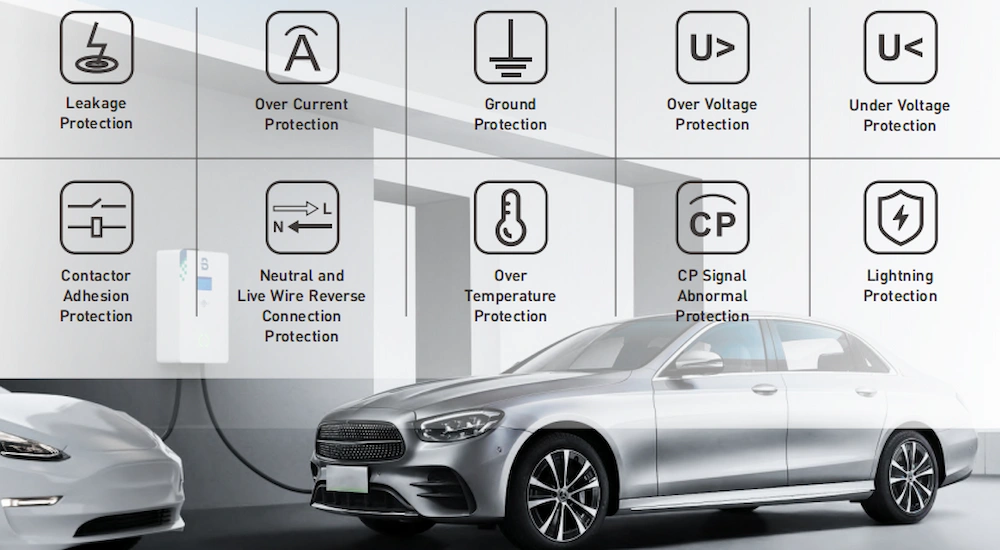

  • Full protection of Type 2 Mode 3 EV Charger 22kw

Full Protection Functions

BENY Floor Mounted AC EV charger supports multiple protection features, such as over-voltage protection, battery leak protection, over-temperature protection.

With full protection to avoid all kinds of charging safety hazards, it will automatically power off after the vehicle is fully charged, to protect the car battery and prolong the working life.

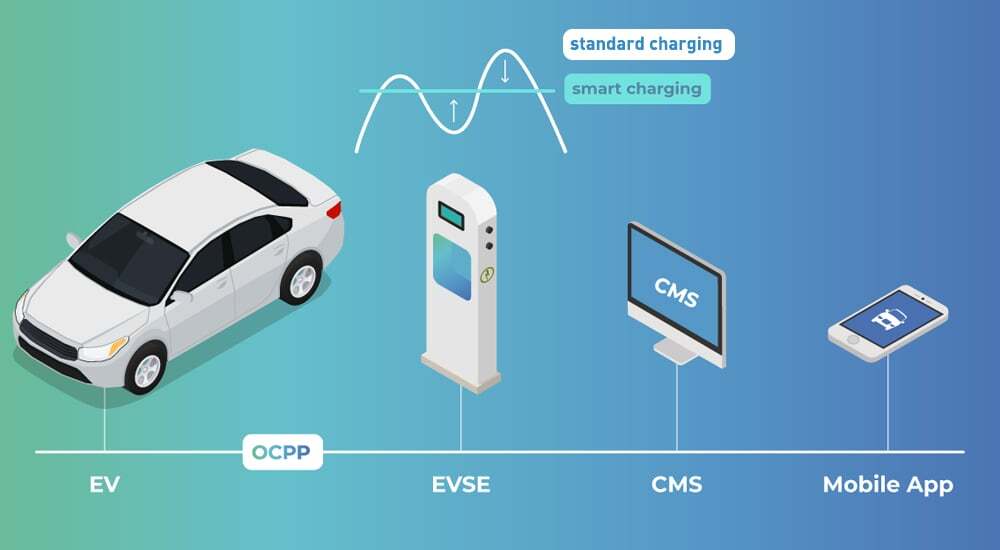

FUNCTIONS OF OCPP EV CHARGERS

  • OCPP EV CHARGERS

APP connects and binds EV Charger by virtue of Bluetooth and WiFi technologies so as to monitor the information and set the parameters of EV Charger

  • Remote start/stop charging
  • Time setting charging
  • Electricity measurement and reporting
  • Firmware upgrade
  • Diagnostic file upload
  • Card number identification and management
  • Load balancing based on charging schedule

SPECIFICATION

Models BCPCM-C2N-P BCPCM-CT2N-P-16 BCPCM-CT2N-P
Maximum Power 2*7.4kW 2*11kW 2*22kW
Input/Output Voltage AC230V 1-Phase AC400V 3-Phase AC400V 3-Phase
Input Frequency 50HZ/60HZ
Tethered/Socket Tethered
Meter 2xMID Meter
Display Five-inch LCD Screen + LED Lights
Charging protocol OCPP1.6-J
Rate Charging Current 2*(6‑32A) 2*(6‑16A) 2*(6-32A)
RFID
DLB
Wi-Fi
Ethernet
Bluetooth
4G
Over Voltage &Under Voltage Protection
Emergency Stop Protection
Over Current Protection
CP Signal Short Circuit Protection
Over Temperature Protection
Lightning Protection
Tipping Detection
Contactor Adhesion Protection
Length of gun cable 5m
Gross weight 22.8Kg
Protection Degree IP65
Environment Temperature -30°C~+50°C
Storage Temperature -40°C~+85°C
Charger Dimension W350 x H550 x D152 mm
Maximum Altitude <2000m
✖: Without  ✔: Standard   ⭘: Optional
