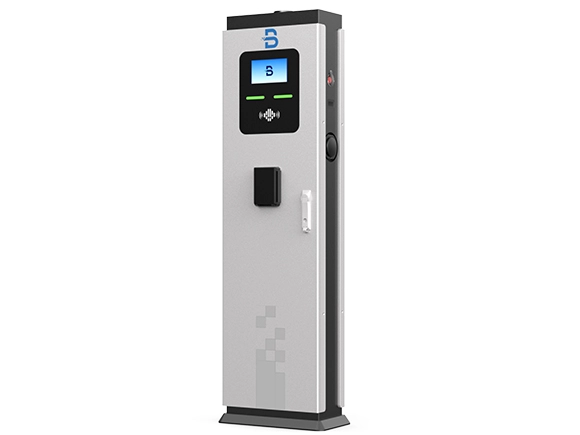

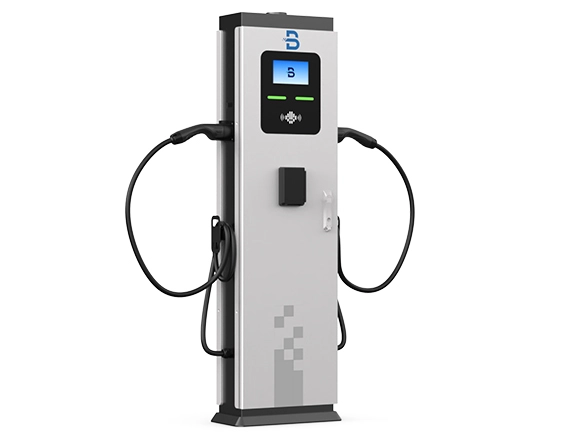

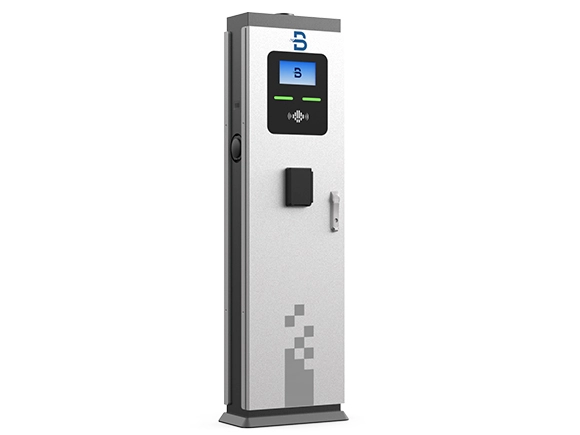

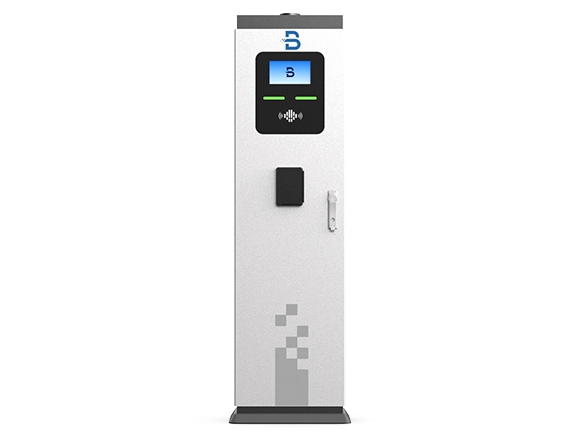

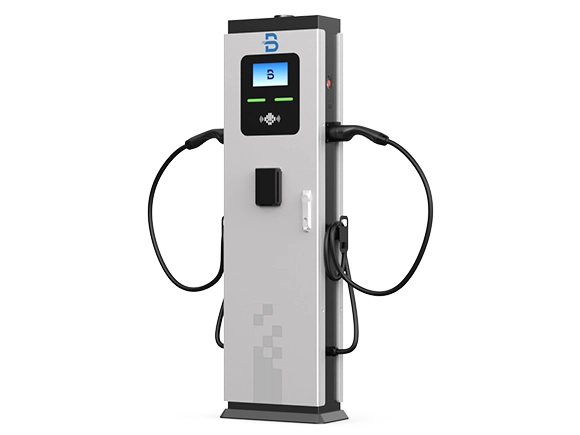

Floor Mounted AC EV Charger with POS

Enhance your charging experience with the BENY Floor Mounted AC EV charger with POS Terminal. Experience effortless interaction with its 7.0-inch LCD screen interface. Take control of your charger via a smart app and various connectivity choices.

                    Highlights :
                    POS Terminal
7.0-inch LCD Screen
Wi-Fi/Ethernet/Bluetooth
IP65 Rating
Full Protection
OCPP1.6-J



Download Datasheet Request A Quote

Fast, Efficient and Safe AC EV Charging Station

BENY Floor Mounted AC EV charger has an IP65 patented design case for outdoor and indoor use.

Customizing all types of charging connectors makes it highly flexible and compatible with all-electric vehicles.

It integrates a POS terminal, enabling convenient credit card payments, making it an ideal solution for commercial EV charging stations.

Full Protection Functions

BENY Floor Mounted AC EV charger supports multiple protection features, such as over-voltage protection, battery leak protection, over-temperature protection.

With full protection to avoid all kinds of charging safety hazards, it will automatically power off after the vehicle is fully charged, to protect the car battery and prolong the working life.

FUNCTIONS OF OCPP EV CHARGERS

Utilizing EV chargers from BENY has never been easier, even when not by the charging units, thanks to the multiple adjustments and configurations customers can access through the downloadable app.

Remote start/stop charging
Time setting charging
Electricity measurement and reporting
Firmware upgrade
Diagnostic file upload
Card number identification and management
Load balancing based on charging schedule

SPECIFICATION

Models	BCPCV-D2M-P	BCPCV-C2M-P	BCPCV-DT2M-P	BCPCV-DT2M-P-16	BCPCV-CT2M-P	BCPCV-CT2M-P-16
Maximum Power	2*7.4kW	2*7.4kW	2*22kW	2*11kW	2*22kW	2*11kW
Input/Output Voltage	AC220V~240V 1-Phase	AC220V~240V 1-Phase	AC380V~415V 3-Phase	AC380V~415V 3-Phase	AC380V~415V 3-Phase	AC380V~415V 3-Phase
Input Frequency	50HZ/60HZ
Tethered/Socket	Socket	Tethered	Socket	Socket	Tethered	Tethered
Meter	Mid meter (default) and PTB meter (optional)
Display	Seven-inch LCD Touch Screen + LED Lights
Charging protocol	OCPP1.6-J
Rate Charging Current	2*(6‑32A)	2*(6‑32A)	2*(6-32A)	*(6-16A)	2*(6-32A)	*(6-16A)
Point of sale(POS)	⭘	⭘	⭘	⭘	⭘	⭘
RFID	✔	✔	✔	✔	✔	✔
DLB	⭘	⭘	⭘	⭘	⭘	⭘
Wi-Fi	✔	✔	✔	✔	✔	✔
Ethernet	✔	✔	✔	✔	✔	✔
Bluetooth	✔	✔	✔	✔	✔	✔
4G	✔	✔	✔	✔	✔	✔
Over Voltage &Under Voltage Protection	✔	✔	✔	✔	✔	✔
Emergency Stop Protection	✔	✔	✔	✔	✔	✔
Over Current Protection	✔	✔	✔	✔	✔	✔
CP Signal Short Circuit Protection	✔	✔	✔	✔	✔	✔
Over Temperature Protection	✔	✔	✔	✔	✔	✔
Lightning Protection	✔	✔	✔	✔	✔	✔
Tipping Detection	✔	✔	✔	✔	✔	✔
Contactor Adhesion Protection	✔	✔	✔	✔	✔	✔
Water Intrusion Detection	⭘	⭘	⭘	⭘	⭘	⭘
Entrance Guard Feedback	⭘	⭘	⭘	⭘	⭘	⭘
Surge Feedback	✔	✔	✔	✔	✔	✔
Protection Degree	IP65
Environment Temperature	-30°C~+50°C
Storage Temperature	-40°C~+85°C
Charger Dimension	W420 x H1550 x D210 mm
Maximum Altitude	<2000m
✖: Without ✔: Standard ⭘: Optional
