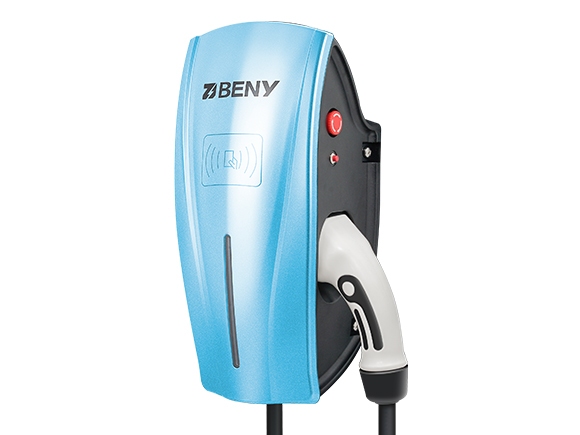

  • 3
  • 2
  • 1
  • beny ev charger with cable 3

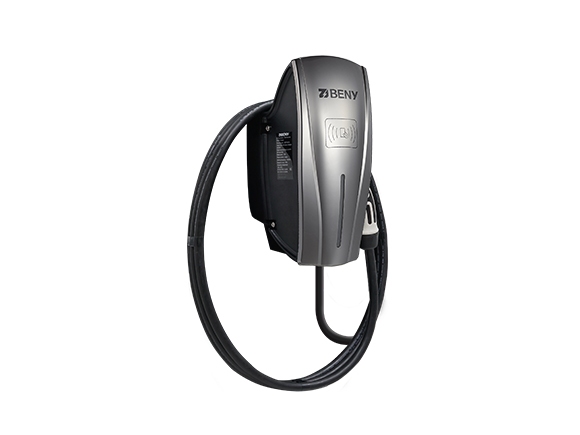

  • beny ev charger with cable 2
  • beny ev charger with cable 1
  • beny ev charger with cable 6
  • beny ev charger with cable 5

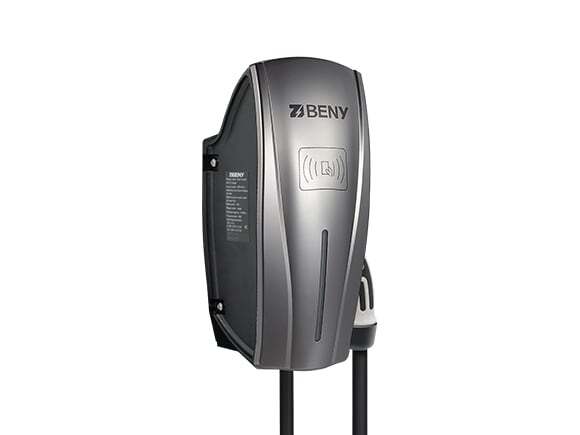

  • beny ev charger with cable 4
  • 4
  • 3
  • 2
  • 1

7.4kW EV Charger with DLB Function and PEN Fault Detection 1-Phase Home Charging Station with Cable

BENY Electric 1-Phase EV Charger Type 2 Socket 32Amp 7.4kW IP65 Electric Vehicle Charger CE Certified

Highlights :

  • Dynamic load balancing (optional)
  • OCPP (optional)
  • Type 2 (IEC 62196-2) charging connector, Type 1 (optional)
  • Plug and start to charge automatic, RFID card (optional)
  • Full Protection
  • 3 years warranty
  • rohs
  • CE-Certified icon
  • ukca icon
  • CB icon
  • RCM icon
  • ocpp 1 6 icon
  • 官网1000X550 带线

A mode 3 (IEC61851-1) fast EV charger for residential use

The simple non-smart EV charger has an IP65 patented design case for outdoor and indoor use.



The type 2 charging connector makes highly flexible and compatible with all electric vehicles.



Plug and start to charge automatic. (RFID card for option)



The EV charger output can be adjusted from 6 amps (1.3 kW) all the way up to 32 amps (7.4 kW)

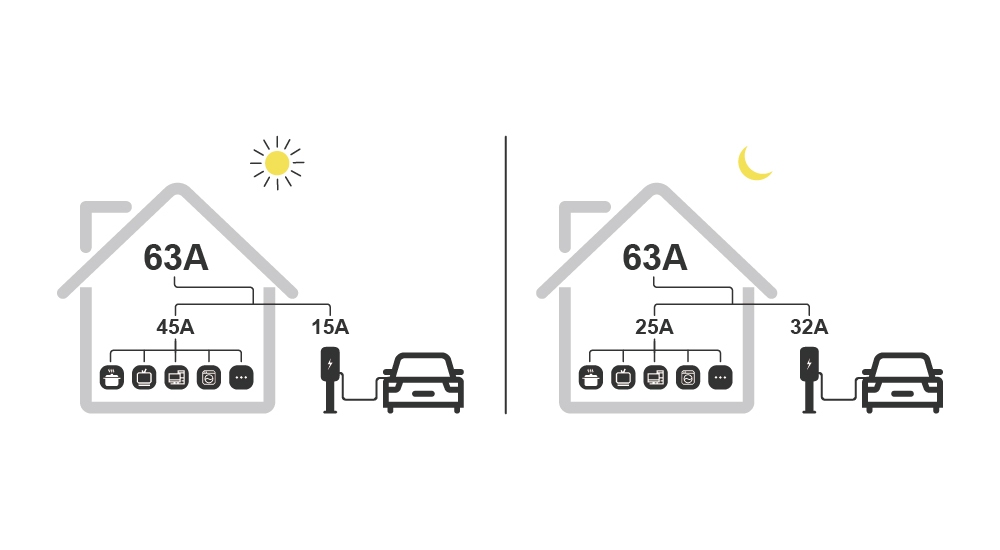

  • BENY DLB
  • BENY Electric DLB box 1

Dynamic Load Balancing Function

To safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.



DLB (Dynamic Load Balancing) is available in the BENY BCP series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.

  • EV charger PEN Fault Detection

PEN Fault Detection

Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.



If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground, once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected, there is only a weak leakage current between CP and PE to L line, its current value is less than 1mA, which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.

  • EV charger APP

SMART APP FOR OPTION

ENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:



✔ One to one binding EV charger by resetting the password, prevent the EV charger being stolen;



✔ View charging data and status;



✔ Set up various charging configurations, charging current, DLB mode, etc.



✔ Scheduled charging;



✔ Firmware update

FEATURES/ADVANTAGES

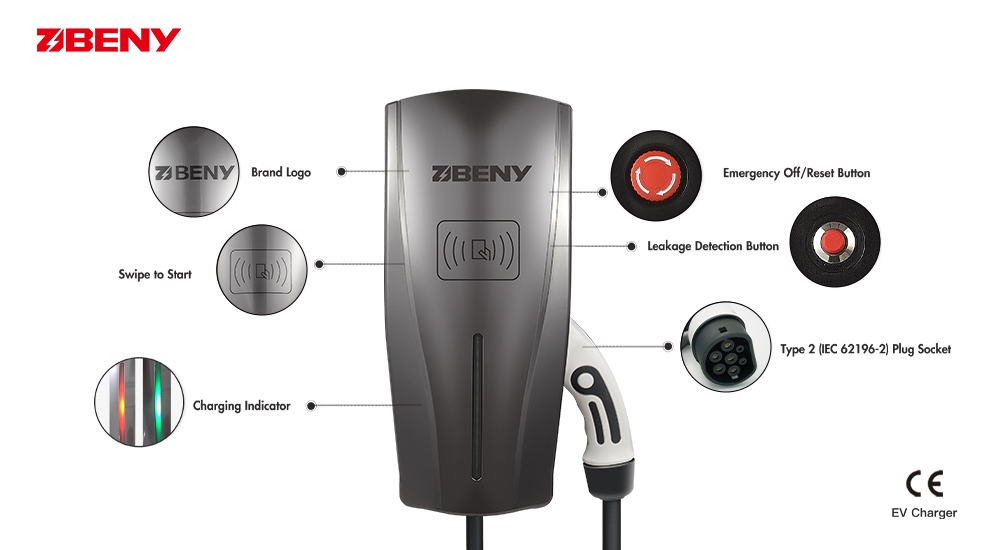

  • beny ev charger with cable

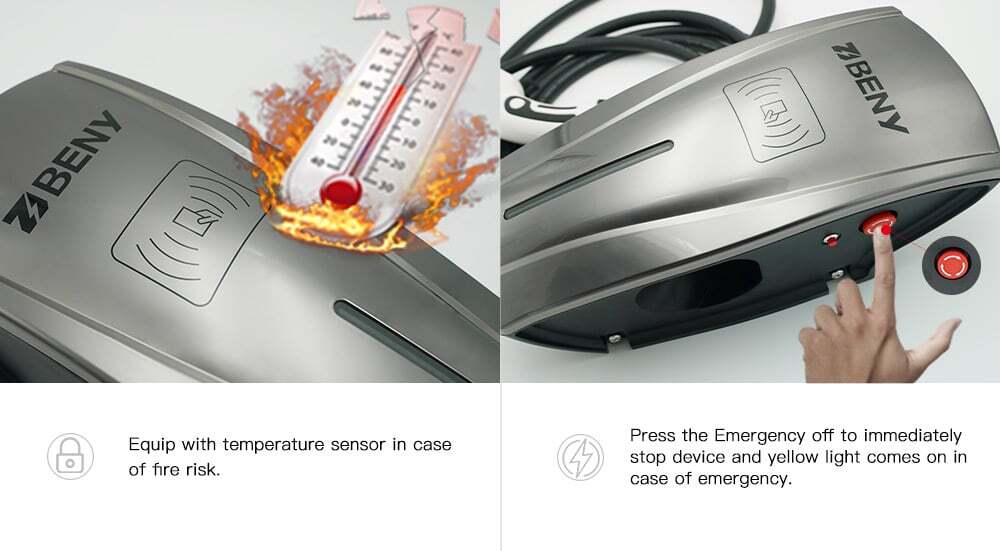

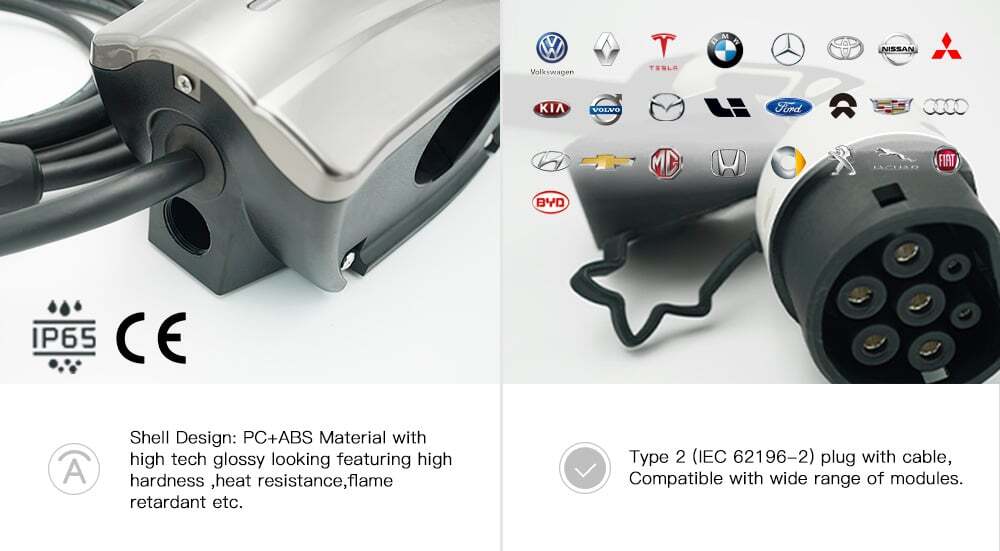

  • BENY Electric ev charging station function 1
  • BENY Electric ev charging station function 2

  • Connector

Type 2 (IEC 62196-2) plug with cable



  • Dynamic Load Balancing



  • PEN Fault Detection



  • Built-in Type B RCD for leakage protection
  • Over Temperature Sensor
  • Clip-on Grid Current Sensor
  • LED ring status indication
  • With emergency stop switch

SPECIFICATION

Electrical
Charging capacity 1.3kW-7.4kW / 4.1kW-22kW
Charge mode Mode 3 (IEC 61851-1)
Output power Selectable 1-phase or 3-phase, 230-400V

6 A to 32 A, 50-60 Hz

Connector options Fixed cable type 2 plug or type 2 Socket
Fixed cable length 6m (18 ft)
Cable Entry Rear or bottom
Protection and certification
Build-in RCD TYPE A + DC6mA leakage sensor built-in
With Cable IP65, IK07
Socket IP65, IK07
Housing fire ratings V0
Operating temperature -25 – +55℃
Compliance IEC61851-1, IEC61851-21-2,

IEC61000-4

CE EMC EU/2014

CE Low Voltage EU/2014/35

Certificate CE, UKCA, CB, RCM
Connectivity
Authorization Auto-start standard / RFID card option
Status indication LED ring
Charging protocol OCPP 1.6J optional
WLAN communication Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing Polycarbonate
Dimension W169 x H380 x D151 mm
Mounting Wall or Pole
