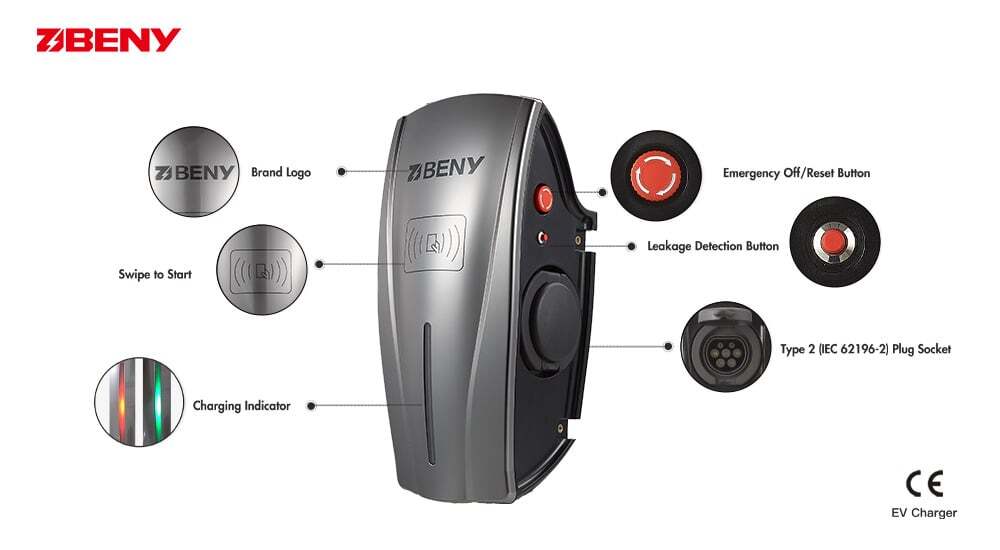

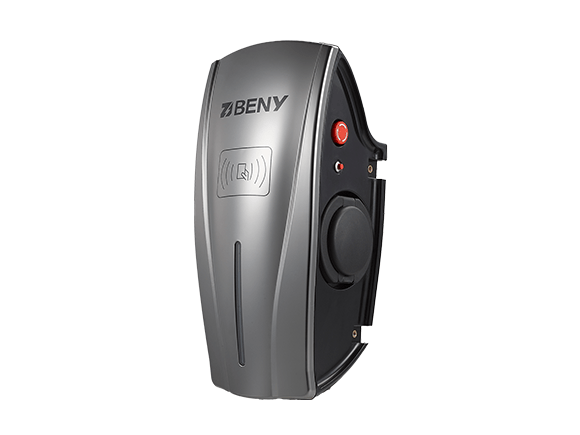

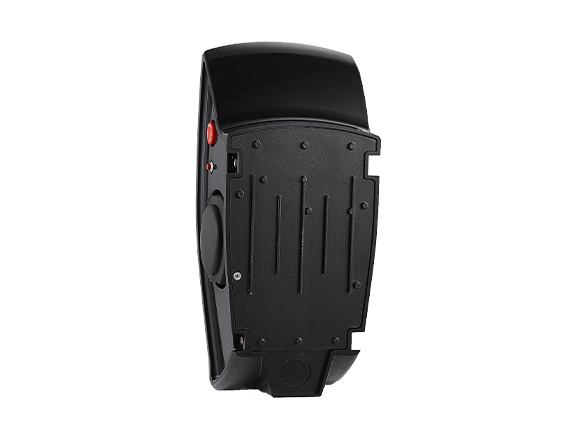

7.4kW EV Charger with DLB Function 1-Phase Home Charging Station with Socket

A MODE 3 (IEC61851-1) FAST EV CHARGER FOR RESIDENTIAL USE

The simple non-smart EV charger has an IP55 patented design case for outdoor and indoor use.

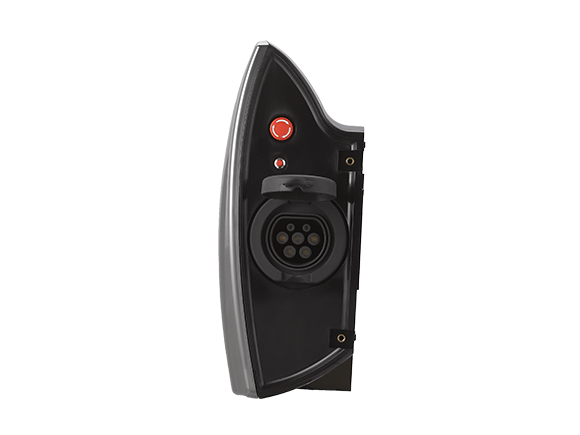

The type 2 plug socket makes highly flexible and compatible with all electric vehicles.

The EV charger output can be adjusted from 6 amps (1.3 kW) all the way up to 32 amps (7.4 kW)

Dynamic Load Balancing Function

To safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.

DLB (Dynamic Load Balancing) is available in the BENY BCP series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.

PEN FAULT DETECTION

Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.

If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground, once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected, there is only a weak leakage current between CP and PE to L line, its current value is less than 1mA, which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.

SMART APP FOR OPTION

BENY EV chargers can be controlled by a smart APP via WIFI or Bluetooth connection:

 One to one binding EV charger by resetting the password, prevent the EV charger being stolen;

 View charging data and status;

 Set up various charging configurations, charging current, DLB mode, etc.

 Scheduled charging;

 Firmware update

FEATURES/ADVANTAGES

SPECIFICATION
