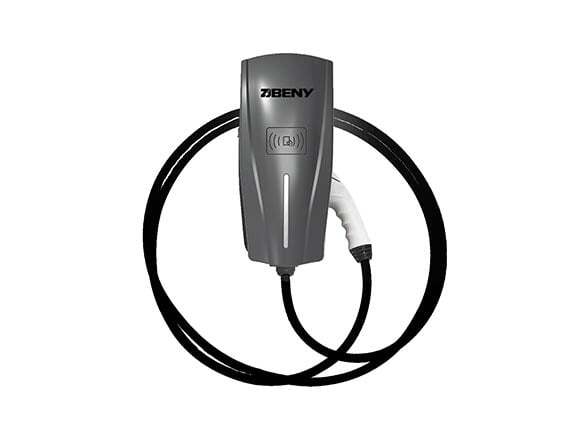

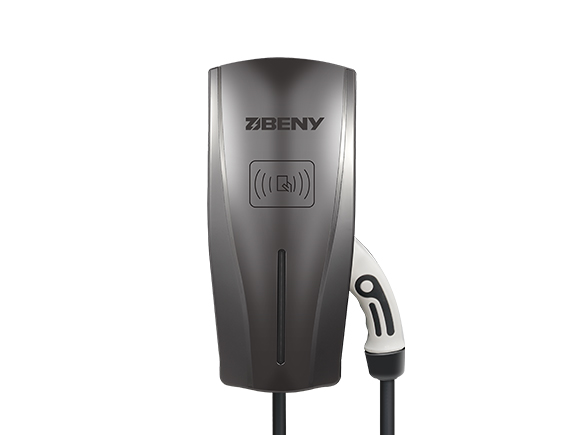

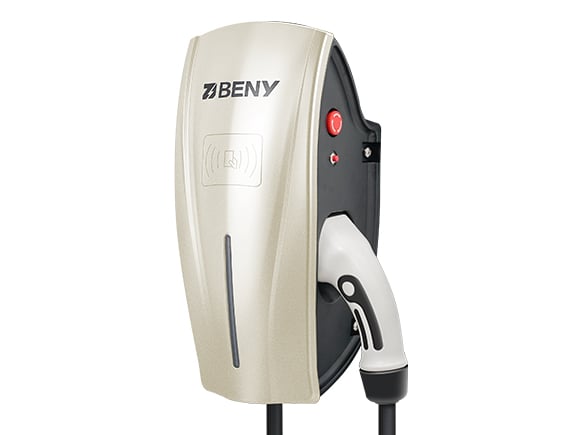

7.4kW EV Charger 1-Phase Home Charging Station with Cable

BENY Electric 1-Phase EV Charger Type 2 Socket 32Amp 7.4kW IP65 Electric Vehicle Charger CE Certified

Highlights :

  • Dynamic load balancing (optional)
  • OCPP (optional)
  • Full Protection
  • Type 2 (IEC 62196-2) plug with cable
  • Plug and start to charge automatic (RFID card for option)
  • 5 years warranty
  • rohs
  • CE-Certified icon
  • ocpp 1 6 icon
  • BENY Electric EV CHARGER FOR RESIDENTIAL USE

A mode 3 (IEC61851-1) fast EV charger for residential use

  • zjbeny ev charger solution

The simple non-smart EV charger has an IP65 patented design case for outdoor and indoor use.



The type 2 charging connector makes highly flexible and compatible with all electric vehicles.



Plug and start to charge automatic. (RFID card for option)



The EV charger output can be adjusted from 6 amps (1.3 kW) all the way up to 32 amps (7.4 kW)

FEATURES/ADVANTAGES

  • BENY Electric ev charging station function 1
  • BENY Electric ev charging station function 2

Connector

Type 2 (IEC 62196-2) plug with cable



Dynamic load balancing (optional)

For safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.

  • Built-in Type B RCD for leakage protection
  • Over Temperature Sensor
  • Clip-on Grid Current Sensor
  • LED ring status indication
  • With emergency stop switch

SPECIFICATION

Electrical
Charging capacity 1.3kW – 7.4kW / 11kW – 22kW
Charge mode Mode 3 (IEC 61851-1)
Output power Selectable 1-phase or 3-phase, 230-400V

16 A to 32 A, 50-60 Hz

Connector options Fixed cable type 2 plug or type 2 Socket
Fixed cable length 6m (18 ft)
Cable Entry Rear or bottom
Protection and certification
Ground fault detection Patent Design 0.3mA AC
Build-in RCD Type B RCD
Enclosure ratings IP65
Housing fire ratings V0
Operating temperature -25 – +55
Compliance IEC61851-1, IEC61851-21-2,

IEC61000-4

CE EMC EU/2014

CE Low Voltage EU/2014/35

Certificate CE
Connectivity
Authorization Auto-start standard / RFID card option
Status indication LED ring
Charging protocol OCPP 1.6J option
WLAN communication Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing Polycarbonate
Dimension W169 x H380 x D151 mm
Weight With 6m Cable: 6.2KG

With Socket: 3.5KG

Mounting Wall or Pole
