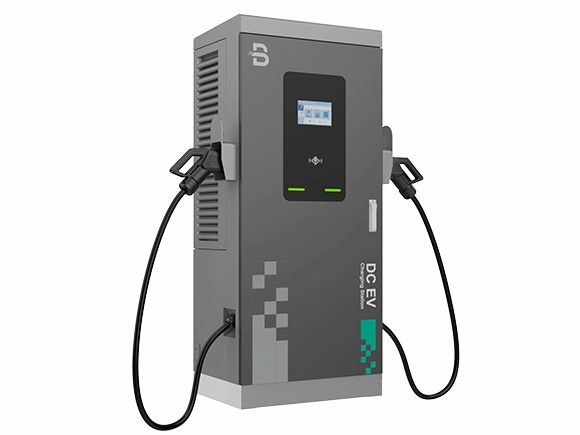

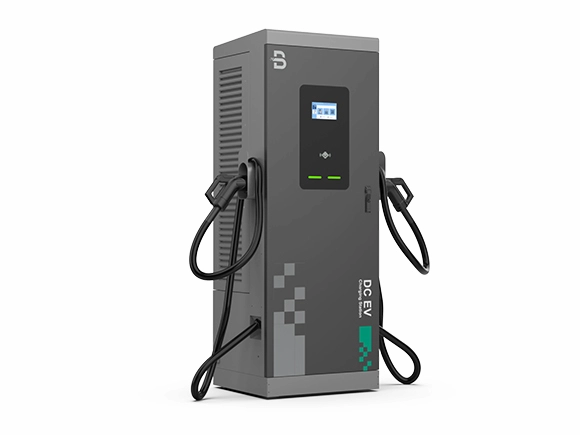

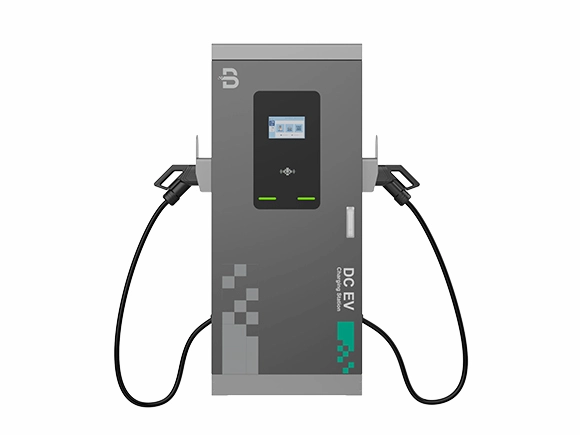

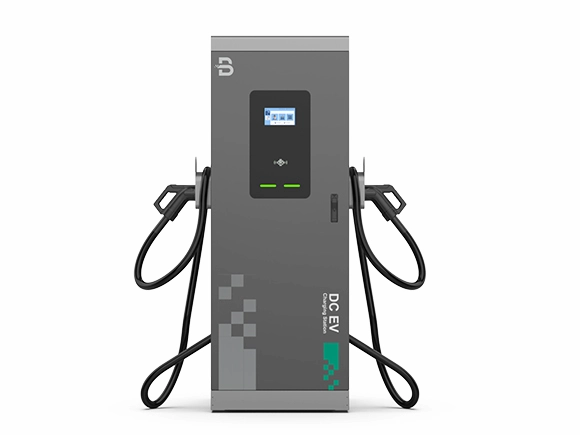

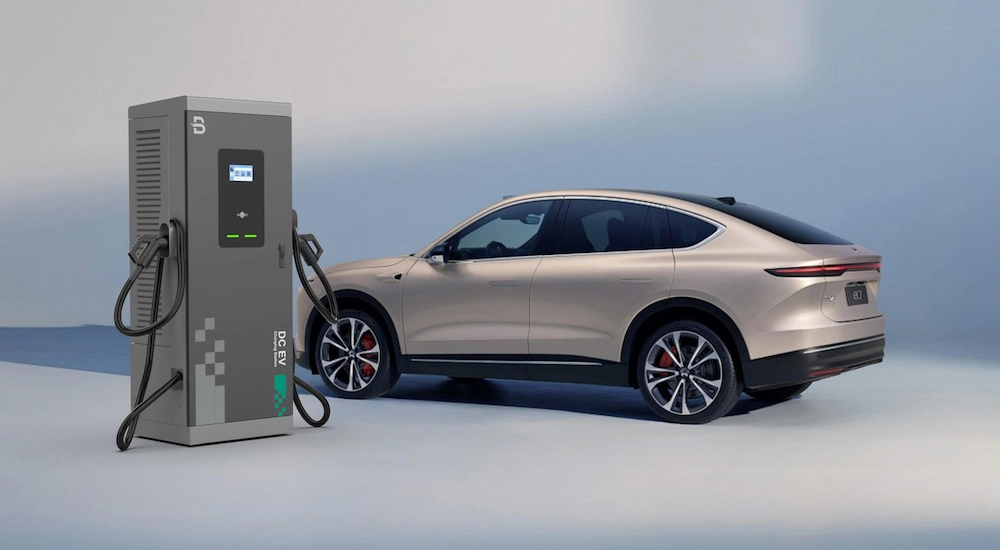

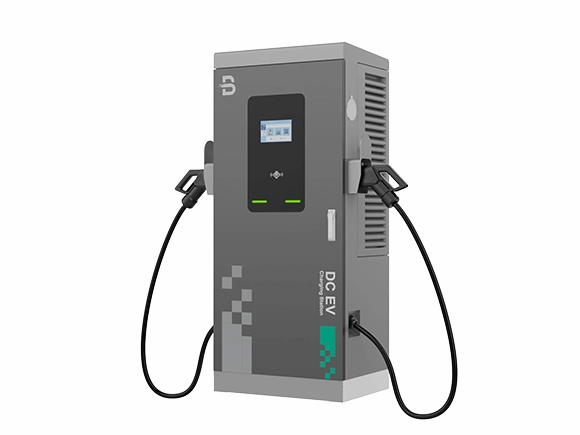

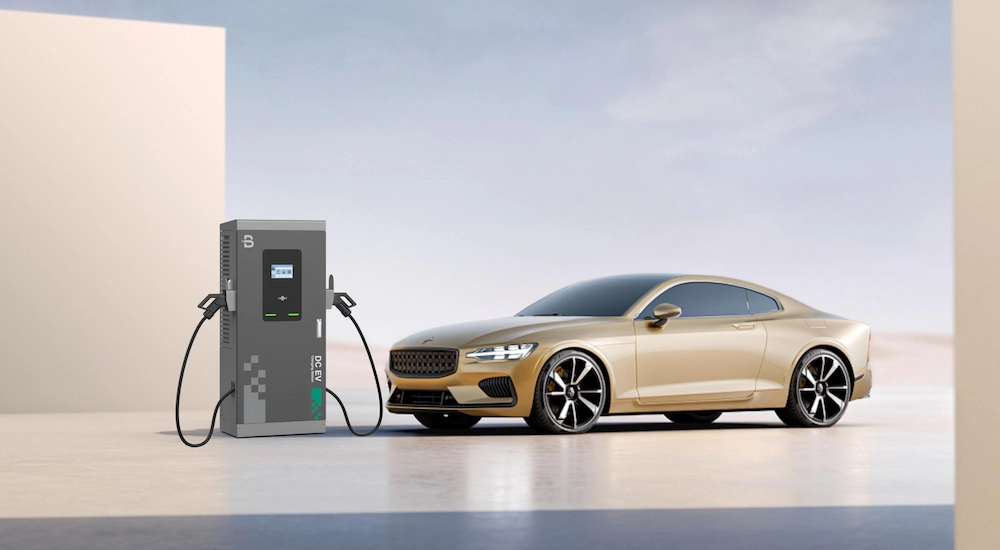

Economic DC EV Charging Station BEDC

This Beny 60kW to 240kW DC EV Charging Station boasts a remarkable 7-inch touch screen for effortless control, and offers robust full protection features.

                    Highlights :
                    60kW-240kW
2 Guns ( CCS2, GB/T Optional)
Full Protection
IP55 Rating
Ethernet/4G/WiFi
RFID/APP Control



Download Datasheet Request A Quote

Fast, Efficient and Safe EV Charging Station

BENY economic DC fast charger delivers safe, stable, and efficient charging with power options from 60kW to 240kW. Featuring dual-gun output (CCS2 or GB/T optional) and an IP55-rated dust- and waterproof design, it ensures reliable operation in both indoor and outdoor environments. The charger offers full protection with real-time monitoring of cable connection status and automatic stop on abnormalities, safeguarding both users and vehicles.

With a user-friendly interface, RFID/APP control, and multiple communication options including Ethernet, 4G, WiFi, CAN, and RS485, it easily connects to management platforms for smart monitoring and control. Ideal for commercial, fleet, and public charging applications.

BENY Econmic DC EV Car Charger Features

60kW to 240kW

2 Guns ( CCS2, GB/T Optional)

Full Protection

IP55 Rating

Ethernet/4G/WiFi

RFID/APP Control

Time-saving - Fast charging
Power saving - High conversion efficiency and low standby power consumption
High Safety - Dual protection to both manual operation and vehicles

SPECIFICATION

Structure Description
Shell material	Galvanized Sheet
Dimension	8646001640(LWH mm
Weight	≤320kG
Installation Method	Floor-stand type
Cable routing	Bottom Inlet Wiring, Bottom Outlet Wiring
Cable length	5 M
Charging outlets	Double(CCS2+GBT)
	Double(CCS2+CCS2)
	Double(GBT+GBT)
Connectivity authorization	RFID, App
Screen	7 Inch LCD Screen/LED Light
Electrical Specification
AC input voltage	AC380V-415V, 3P+N+PE
Input frequency	50Hz/60Hz
Rated power	60kW /80kW/ 90kW / 120kW / 150kW / 160kW / 180kW/200kW/240kW
Output voltage range	CCS2/GBT: 150Vdc ~1000Vdc
Output current	CCS2/GBT:0~250A
Communiction
OCPP	OCPP 1.6
Network interface	Ethernet/4G/Wifi
Environment condition
Application place	Indoor/Outdoor
Working latitude	<2000m
Working temperature	-30°C~+50°C
Storage Temperature	-30°C~+85ºC
Working humidity	5%~95%
Protection level	IP55 IK10( Screen IK08 )
Natural cooling	Forced-air cooling
Security Design	Over/Under Voltage Protection, Overload Protection, Current Leakage Protection, Grounding Protection, Over Temp Protection, Lightening Surge Protection
