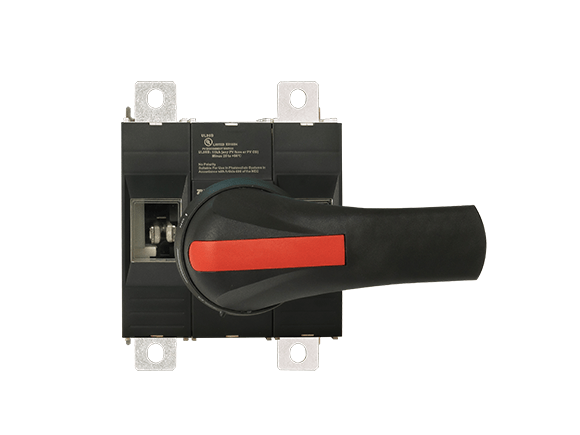

DC Disconnect Switch 1500V 400A BH-400-2P UL Listed

BH-400-2P DC Isolator 1500V DC 400A 2P Solar Isolator Switch UL98B

Highlights :

  • 1500V DC, 400A
  • 2 Pole
  • UL98B
  • Reliable DC arc extinguishing technology with PCT patents
  • Lockable handle
  • Non-polar switch
  • Modular and compact design
  • rohs
  • TUV 100X100 icon
  • UL-Certifed icon

Solar DC switch disconnect up to 1500V 400A

BENY BH -400 DC disconnect switch is designed and developed for solar PV inverter,combiner box or any DC equipments build-in according to UL98B.



The DC load break switches provide safety isolation for one DC circuit up to 1500vDC 400A.



Advantages

* Non-polar switch



* Modular and compact design



* Reliable DC arc extinguishing technology with PCT patents



* High capacity 10KA for 50ms test.



* Lower power losing

SPECIFICATION

Model BH-400-2P
Poles 2P
Standard UL98B
Rated Working Voltage ( Ue) 1000V/1500V
Rated Current ( le) 320A/400A
Rated impulse withstand voltage ( Uimp) 12kV
Rated short-time withstand current ( lcw) 10kA/50ms
Rated short-circuit making capacity ( lcm) 10kA/50ms
Rated conditional short-circuit current ( kA) 10kA
Number of cycles of operation(With current) 400
Number of cycles of operation(Without current) 5000
IP rating terminals IP20
Outside the ark handle IP65
