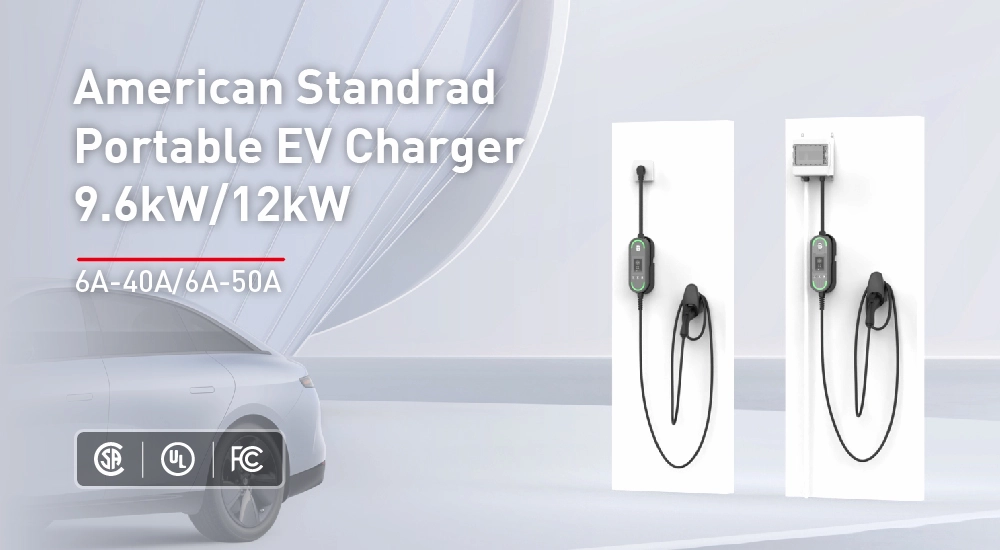

American Standard Portable EV Charger

For the American market, BENY proudly present this AC portable ev charger, fully certified with FCC and CSA for safety and compliance. It supporting maximum 9.6kW/12kW output.

                    Highlights :
                    Ingress Protection: Type 3R
Adjustable Current 6A-40A (9.6kW)/ 6A-50A (12kW)
Scheduled Charging
Full Protection
CSA/ FCC standard



Download Datasheet Request A Quote

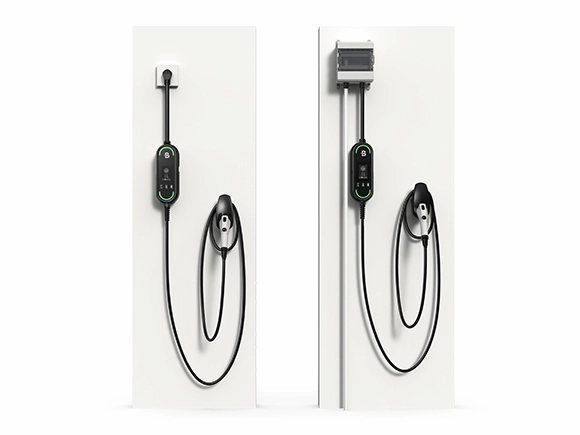

BENY PORTABLE CHARGING SOLUTIONS FOR INDOOR AND OUTDOOR USE

This AC portable ev charger station delivers to 9.6kW and 12 kW of power, offering flexible day and night charging modes. Users can schedule charging within a 0–24 hour window and adjust the charging current for optimal convenience. The charger automatically recharge after power failure recovery, features built-in lightning protection, and a clear LCD display with intuitive touch controls. Designed for both indoor and outdoor use, it offers Ingress Protection Type 3R and operates reliably in temperatures from -30°C to +50°C and humidity from 5% to 95%.

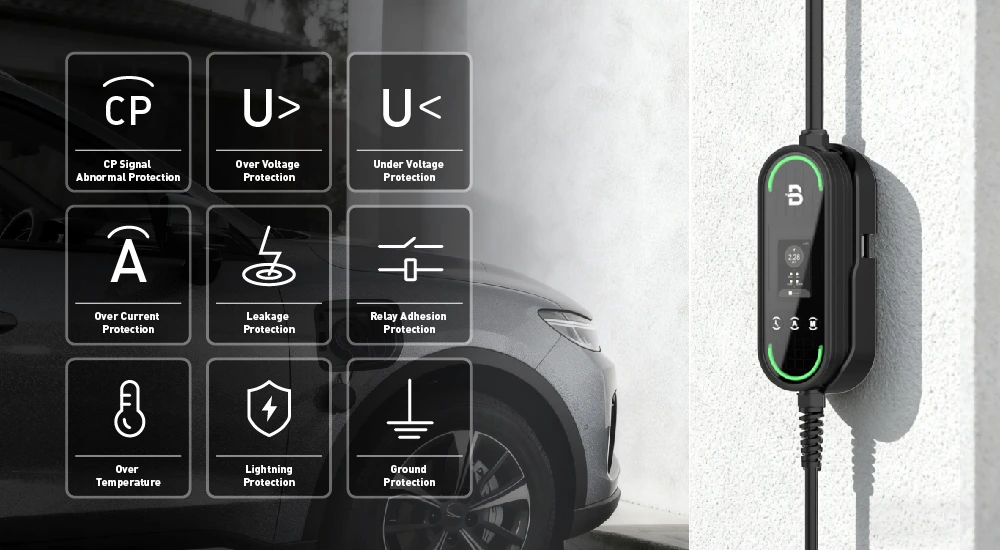

FULL PROTECTION

This BENY portable EV charger is built with multiple protections, including over-current, over-voltage, under-voltage, over-temperature, relay adhesion, ground fault, CP signal abnormality, fire, anti-pressure, and Type B leakage protection.

With full protection to avoid all kinds of charging safety hazards, it will automatic power off after the vehicle is fully charged, to protect the car battery and prolong the working life.

PORTABLE EV PORTABLE CHARGING STATION FEATURES

Multi-function Portable EV Charger with Full Protection

No Need to Install at any location

With LCD screen display, more intuitive and clear

With Touch key-press, more flexible and convenient operation

Compatible with Type – 2 Vehicles

Ingress Protection: Type 3R

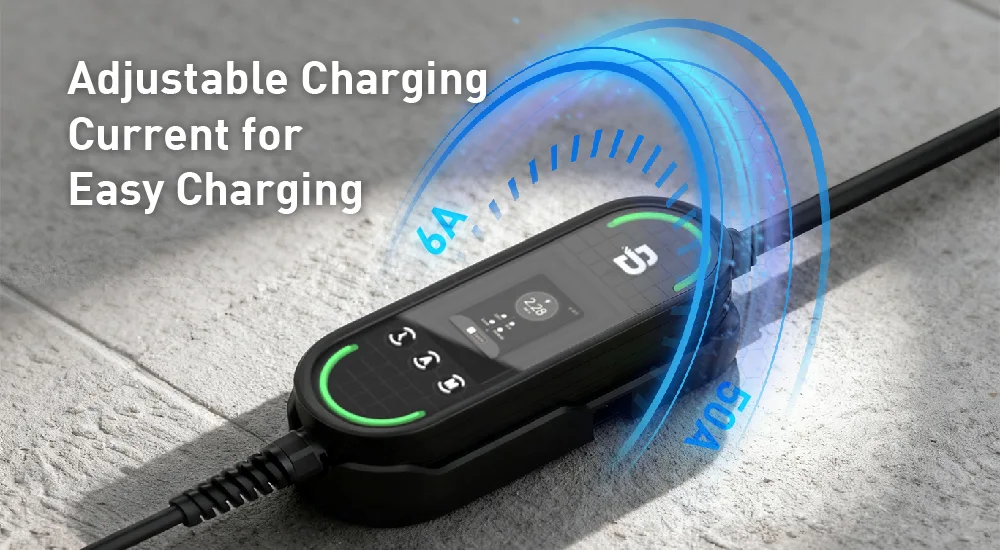

Adjustable Current 6A-40A/6A-50A

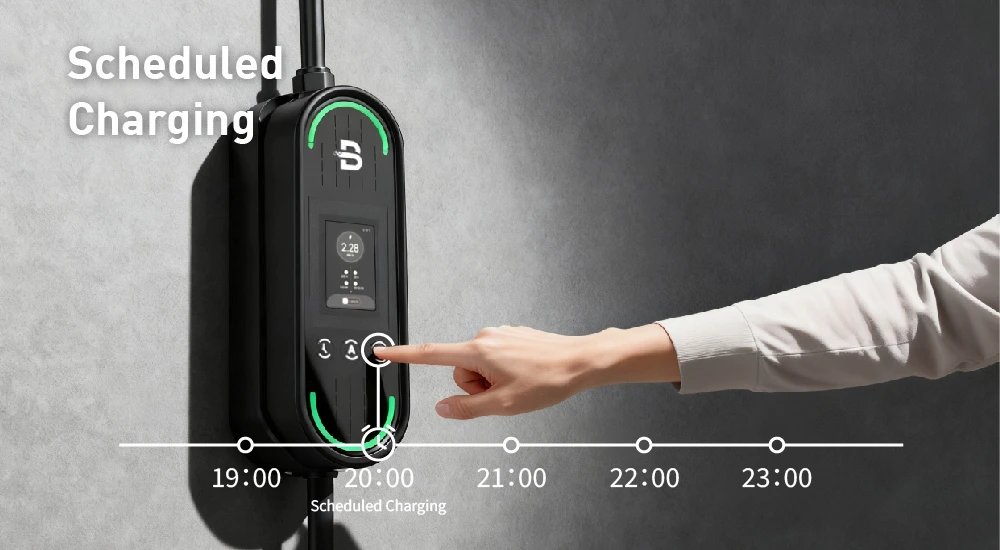

Scheduled Charging
Operating Temperature: -30 ℃ ~+ 50 ℃

SPECIFICATION

Portable AC EV Charger	BCPP-A1-40	BCP-A1-50
Charging Method	Plug and Play
Maximun Power	9.6kW	12kW
Rated Input/Output Voltage	208/240 Vac, single phase	208/240 Vac, single phase
Charging Current Range	6-40A	6-50A
Frequency	50HZ/60HZ	50HZ/60HZ
Display	LED Lights + LCD Screen
Operation method	Touch Key-press
CP Signal Abnormal Protection	√	√
Over Voltage Protection	√	√
Under Voltage Protection	√	√
Over Current Protection	√	√
Leakage Protection	√	√
Over Temperature Protection	√	√
Relay Adhesion Protection	√	√
Lightning Protection	√	√
Ground Protection	√	√
Operating Temperature	-30℃ ~ +50℃	-30℃~+50℃(Derating above 45℃)
Storage temperature	-40°C ~ +85°C
Humidity	5%~95%
Gross Weight	4.8kg	5.5kg
Operating Altitude	<2000m
Ingress Protection	Type 3R
Size of control box ( (W x H x D))	106mm x 304mm x 89.5mm
