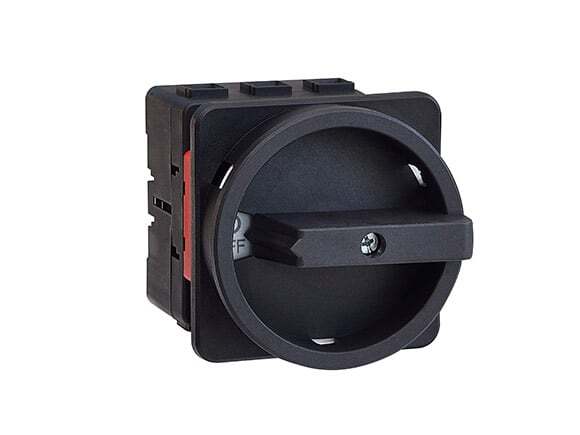

AC Disconnect Switch 125A BYAF-125 UL Listed

BENY New Energy BYAF-125 AC Disconnect Switch 3 Pole 1000VAC 50A

Highlights :

  • IEC/EN 60947-3, UL508, GB/T 14048.3 Listed
  • Tested to extreme ambient conditions from –40ºC~+85ºC
  • AC 1000V 50A
  • Lockable at off position
  • Remote signaling is optional
  • 5 years warranty for free replace
  • Beny New Energy AC Disconnect Switch UL certificate
  • TUV 100X100 icon
  • CE-Certified icon
  • ccc
  • rohs

AC disconnect switch from AC 230V to 1000V

BYAF-125 AC isolator switch is designed according to IEC 60947-3, UL508, GB/T 14048.3 standards, panel mounting for AC controlling panel installation.



3P AC 1000V up to 50A for AC circuit switch and control



Application in solar inverter AC side, AC combiner box main switch or anything AC equipments match the voltage and current.

SPECIFICATION

Model BYAF-125 / BYAF-125 R
Poles 3P
Standard IEC/EN 60947-3, UL508, GB/T 14048.3
Utilization Category AC-23A
Rated Operational Voltage (Ue) AC 230V~ 1000V
Rated Current 50A
Rated frequency 50Hz / 60Hz
Protection Degree IP20 body, Type 4X
Certificate UL / TUV / CE / CCC
