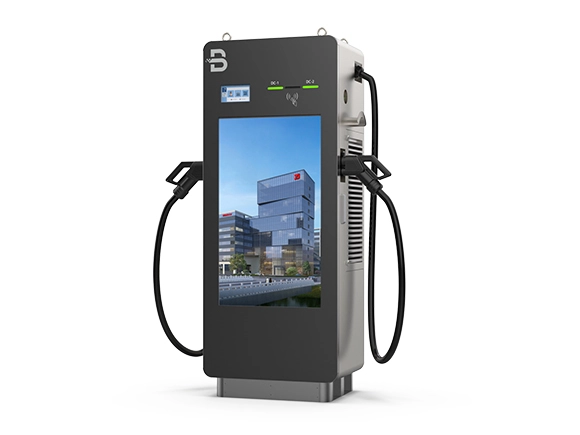

2 Guns DC EV Charging Advertising Station

2 Guns DC 60kW-120kW BENY EV Charging Station Fast Charging

                    Highlights :
                    60kW - 120kW
2 Guns ( CCS1, CCS2, Chademo Optional)
Floor-stand type
43-inch advertising screen/LED light
OCPP 1.6J
IP55



Download Datasheet Request A Quote

Fast, Efficient and Safe EV Charging Station

Remarkable 43-inch Advertising screen for effortless control. 2 Guns DC EV Charging Advertising Station comes with a range of certifications including CE, CB, UKCA, TUV, and RoHS, and offers robust full protection features.

With convenient app control and Ethernet/4G connectivity, you can charge your EV with confidence and efficiency.

FEATURES/ADVANTAGES

2 Guns DC

60kW – 120kW

Time and power saving

High safety

Time-saving - Fast charging
Power saving - High conversion efficiency and low standby power consumption
High Safety - Dual protection to both manual operation and vehicles

SPECIFICATION

Structure Description
Shell Material	Sheet Metal
Dimension	7005201800(LWT)
Weight	≤500kG
Installation Method	Floor-stand Type
Cable Routing	Bottom Inlet Wiring, Up Outlet Wiring
Cable Length	5 M
Charging Outlets	Double (CCS1+CCS1) Double (CCS1+CHADEMO) Double (CCS1+GBT) Double (CHADEMO+CHADEMO)	Double(CCS2+CCS2) Double(CCS2+CHADEMO) Double(CHADEMO+GBT)	Double(CCS1+CCS2) Double(CCS1+GBT) Double(GBT+GBT)
Connectivity Authorization	RFID, App
Screen	43-Inch Advertising Screen/LED Light
Electrical Specification
AC Input Voltage	AC380V±15% ,3P+N+PEAC
Input Frequency	50Hz/60Hz
Rated Power	60kW	90kW	120kW
Output Voltage Range	CCS1/CCS2/GBT: 150 Vdc –1000 Vdc; CHADEMO: 150Vdc-500Vdc
Output Current	CCS1/CCS2/GBT: 0-250A; CHADEMO: 0-125A
Efficiency	≥95%
Power Factor	≥0.99(load: 100%)
Functionate Design
User Interface	Emergency Stop Button, LED Indicator, Card Swiping, Touch Screen
Charging Stands	IEC 61851‑21‑2: 2021; IEC 61000‑6‑2: 2019; EN61000‑6‑4: 2019; IEC 61851‑1: 2019; EN 61851‑23: 2014;  EN 61851‑24: 2014
Communication
OCPP	OCPP 1.6J
Network Interface	Ethernet/4G
Environment Condition
Application Place	Indoor/Outdoor
Working Latitude	<2000m
Working Temperature	-30°C ~ +55°C
Working Humidity	5%~95%
Protection Level	IP55
Natural Cooling	Forced-air Cooling
Warranty	24 Months Warranty
Security Design	Over/Under Voltage Protection, Overlord Protection, Current Leakage Protection, Grounding Protection, Over Temp Protection, Lightening Surge Protection
