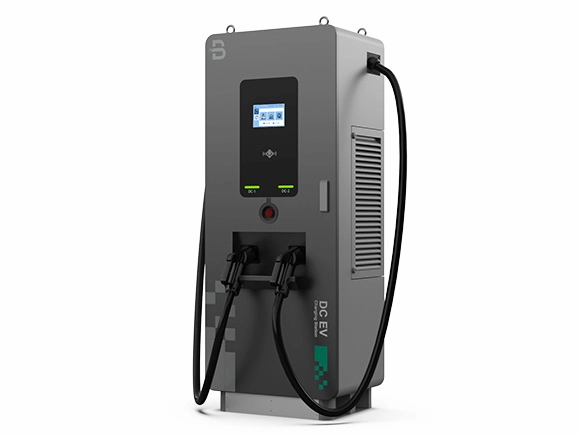

1/2 Guns Compact DC EV Charging Station BMDC

1 or 2 Guns 60kW-120kW Compact BENY DC EV Charging Station Fast Charging

                    Highlights :
                    60kW - 120kW
1 or 2 Guns (CCS1, CCS2, Chademo, GBT, NACS Optional)
Floor-stand
7-inch LCD screen/LED light
OCPP 1.6J
IP55
CE, CB, TUV, and RoHS



Download Datasheet Request A Quote

Fast, Efficient and Safe EV Charging Station

BENY DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.

The compact product has a small size and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.

FEATURES/ADVANTAGES

1 or 2 Guns DC

60kW – 120kW

Time and power saving

High safety

Time saving - Fast charging
Space saving - Small size fits in any space
Cost saving - More affordable without quality compromise
Power saving - High conversion efficiency and low standby power consumption
High safety - Dual protection to both manual operation and vehicles

SPECIFICATION

2 Guns Compact DC EV Charging Station BMDC
Structure Description
Models	BMDC60-D	BMDC90-D	BMDC120-D
Shell material	Galvanized Sheet
Dimension	7005201800mm (LWH)
Weight	≤320kG	≤340kG	≤360kG
Installation method	Floor-stand type
Cable routing	Bottom Inlet Wiring, Up Outlet Wiring
Total length of gun cable	5m
Charging outlets	Double (CCS1+CCS1); Double (CCS1+CHADEMO); Double (CCS2+GBT); Double (CHADEMO+CHADEMO); Double (CCS2+CCS2)	Double (CCS2+CHADEMO); Double (CHADEMO+GBT); Double (CCS1+CCS2); Double (CCS1+GBT); Double (GBT+GBT)	Double (CCS1+NACS); Double (CCS2+NACS); Double (GBT+NACS); Double (CHADEMO+NACS); Double (NACS+NACS)
Connectivity authorization	RFID, App
Screen	7 Inch LCD Screen/LED Light
Electrical Specification
AC input voltage	AC380V-415V,3P+N+PE
Input frequency	50Hz/60Hz
Rated power	60kW	90kW	120kW
Output voltage range	CCS1/CCS2/GBT: 150Vdc –1000Vdc; CHADEMO: 150Vdc –500Vdc
Output current	CCS1/CCS2:0~200A; GBT/NACS:0~200A; CHADEMO:0~125A	CCS1/CCS2:0~250A; GBT/NACS:0~250A; CHADEMO:0~125A	CCS1/CCS2:0~250A; GBT/NACS:0~250A; CHADEMO:0~125A
Communication
OCPP	OCPP 1.6J
Network interface	Ethernet/4G/Wi-Fi
Environment condition
Application place	Indoor/Outdoor
Working latitude	<2000m
Working temperature	-30°C~+85ºC
Working humidity	5%~95%
Protection level	IP55, IK10 (Screen IK08)
Natural cooling	Forced-air Cooling
Warranty	24 months warranty (extendable)
