On-Grid Solar Systems: Everything You Need to Know

Why On-Grid Systems Have Become a Popular Choice

This mass uptake is an informed choice by knowledgeable consumers who acknowledge the potential of the system to provide significant financial payback and help to create a more robust energy infrastructure. An on-grid system, linked with the power grid, is a direct, practical way for property owners to reduce exposure to unstable energy markets. It is a self-sufficiency investment, though it operates in harmony with the current electrical grid. The move to install such a system is thus not necessarily an idealistic move but a strategic financial move that is based on a clear appreciation of its long-term value proposition. The guide will give a detailed analysis of the on-grid solar technology, including its basic concepts, the key aspects of its implementation, and its financial performance.

What Exactly is an On-Grid Solar System and How Does It Work?

A grid-tied system or on-grid solar system is a photovoltaic system that is directly linked to the conventional electrical utility grid. This symbiotic relationship is its hallmark: it produces power to the property it is placed on, yet it also relies on the utility grid to store power and supply it when the solar panels are not generating electricity, particularly in areas that experience frequent power outages.

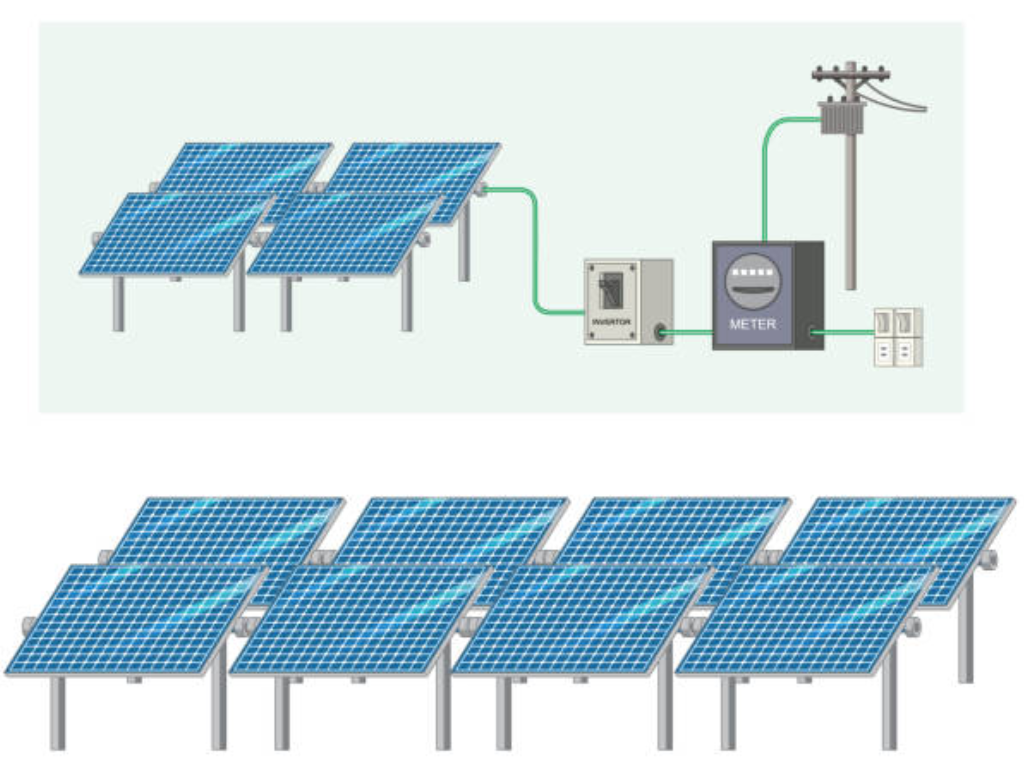

The process of the operational workflow of an on-grid system is a straightforward, four-stage process:

1. Generation: Photovoltaic (PV) solar panels are placed on a roof or on the ground and are exposed to sunlight. These panels have solar cells that capture photons and, using the photovoltaic effect, produce direct current (DC) electricity. It is crude electricity that cannot be used in normal household appliances.
2. Conversion: DC-generated electricity is directed to an inverter. The inverter is the main processing unit of the solar system; its main task is to transform the low-voltage DC electricity of the panels into high-voltage alternating current (AC) electricity. AC is the normal type of electricity that is used in homes and businesses.
3. Consumption: The AC electricity that has been converted is passed through the inverter to the main electrical panel of the property. It is then spread all over the building to supply lights, appliances, and any other electrical load. When the solar system is producing more energy than the property is using, the surplus energy must have a place to go.
4. Export and Net Metering: It is the key mechanism of an on-grid system. Any excess AC power not used up by the property is automatically exported to the utility grid. A net meter or a bi-directional meter is a special utility meter that measures the electricity consumed by the grid and the surplus electricity supplied to the grid. This is known as Net Metering and normally leads to the credit of the property owner on his utility bill, which practically saves or even removes the electricity expenses. The grid, in this working model, acts as an enormous, efficient battery, taking up the surplus energy and giving it back when it is needed, without the property owner having to invest in an actual battery storage.

Key Components of an On-Grid System

A good on-grid solar system is a system of specially designed components that work together. The quality of the parts is as dependent on the system efficiency, safety, and durability as the solar panels are.

• Solar Panels – These are the primary power generators of the solar energy system. They consist of numerous photovoltaic cells, and they are applied to perform the initial conversion of sunlight to DC electricity. The most important thing about the overall energy production of the system is the performance and the life of the panels.
• Inverter – The inverter is the brain of the system and is, perhaps, the most crucial component of the system as far as power optimization is concerned. It does not just convert DC to AC. Two broad categories of inverters are currently used in on-grid systems to manage and convert the electricity produced by the panels:
  • String Inverters – As the long-established and highly cost-effective option, this technology links several solar panels in a series, or string. The entire array of panels supplies its combined DC output to a single inverter to convert it. Despite the fact that this arrangement is cost-effective, it has a significant drawback in terms of operation, i.e., the output of the lowest-producing panel will restrict the output of the whole string. This limitation means that any excess electricity generated cannot be fully utilized. Once one of the panels is damaged by shade, debris, or malfunction, the power output of the entire string is decreased.
  • Microinverters – This is a more advanced technology, which is a paradigm shift in the system architecture. The solar panels have small microinverters that are mounted directly under the panel. This allows the DC-to-AC conversion to be performed on the panel level. Thus, production of one panel is not contingent on the other. This granular structure has great advantages in the overall system performance, particularly on partially shaded roofs or those with complex orientations. It also does not suffer the problem of the weakest link that string inverters do, and ensures that the system can get as much energy as possible out of each panel at any given time. In addition, this architecture is safer because it is converted to lower-risk AC power at the source.
• Utility Meter (Net Meter) – It is a bi-directional meter installed by the utility company. It is precise in the flow of electricity in two directions, one direction being the flow of electricity between the grid and the home and the other direction being the flow of electricity between the solar system and the grid. This is the basis of the net metering financial arrangement of this precise accounting.
• Monitoring System – Contemporary solar systems have a monitoring system that monitors the energy output of the system in real time. Microinverter-based systems have a unique benefit in this regard, as they offer panel-level monitoring. This will enable property owners and technicians to monitor the performance of individual panels, and therefore, diagnose any problems quickly and have the system running at its optimal level.
• Racking and Wiring – This is the physical framework which holds the solar panels to the roof or the ground. The structural integrity and long-term viability of the installation requires a well-designed racking system, which is required to sustain wind, snow, and other environmental pressures over decades. All the related electrical wiring and conduit should be of the best quality and properly installed to be safe and reduce energy loss.

Key Benefits of an On-Grid Solar System

The choice to invest in an on-grid solar system is based on a package of strong and measurable advantages, which are mainly focused on long-term financial gain.

• Major Electricity Savings The first and most obvious is a huge cut in the monthly utility bills. A property can produce its own power and thus cover a significant part, or even all, of its electricity usage. With net metering, surplus production may lead to credits that offset the price of electricity produced at night or during cloudy days.
• Good Return on Investment (ROI) An on-grid solar system is not a cost; it is an asset. The initial investment cost is compensated for in the long run through energy savings. The payback period is the time it takes a system to pay back, and it is steadily declining because of the declining equipment prices and increasing utility rates. Once the payback period is reached, the generated electricity is practically free, and thus the system has a substantial payback throughout the rest of its 25-plus-year life.
• Higher Property Value It has long been established in various real estate studies that homes with solar power systems sell at a higher price and take a shorter time to sell in the market than those without solar power systems. The installation is a capital enhancement that contributes to demonstrable and marketable value to the property.
• Federal and Local Incentives Governments provide substantial financial incentives to motivate the use of renewable energy. In the US, the federal Investment Tax Credit (ITC) enables property owners to deduct a significant portion of the overall system cost on their federal income tax. Most states, cities, and utility companies have other rebates, tax credits, and performance-based incentives that further lower the net cost of the installation and speed up the payback period.

Potential Downsides and Limitations

To conduct a comprehensive and impartial evaluation of on-grid solar technology, one must admit that the technology has certain limitations. They are not flaws but certain design features that the future owners should be aware of.

Secondly, the economic advantages of net metering are dependent on the policies of the local utility company and state regulators. Although such policies are prevalent nowadays, the rates and conditions of such policies may vary over time, and this can impact the long-term financial forecast of a system. Thus, an investment in an on-grid system is also an investment in the stability of the local regulatory environment.

On-Grid Solar System Safety Explained

The basis of a good solar investment is an uncompromising dedication to safety. Although modern on-grid solar installations are controlled by stringent regulations such as the National Electrical Code (NEC), the main danger is still high-voltage DC power of the panels, which can cause a dangerous fire condition called a DC arc fault. Thus, the DC component of the system should be the most secure.

To alleviate this, contemporary installations must have a set of protective devices, such as Rapid Shutdown Devices, DC Isolators, and Circuit Breakers.

• Rapid Shutdown Devices: These devices are mandated by the NEC and they de-energize the DC conductors on the roof rapidly. This allows the firefighters to access the roof safely and perform their work without the risk of being electrocuted by the solar array in case of a fire.
• DC Isolators and Circuit Breakers: These are fail-safes. DC isolators are manually operated to disconnect the solar panels from the rest of the system during maintenance, but DC circuit breakers automatically cut the flow of electricity in the event of an overload or short circuit.
• Surge Protecting Devices (SPDs): These are used to protect the fragile electronics of the inverter and other components against damage due to voltage surges, including lightning strikes.

High-quality components, designed using high-quality materials and engineered to be strong, essentially minimize the chances of electrical failures at the point of origin, and this is where the concept of risk reduction is applied, which is at the source of the risk. BENY is a long-term manufacturer, and as such, it offers an infrastructure of high-quality components, and each product is tested by challenging international standards such as UL and TÜV. This promise means that the system is not only safeguarded against failures but it is designed to avoid them in the first place, which ensures that it will operate reliably and safely over decades.

On-Grid vs. Off-Grid: A Comparative Analysis

To fully appreciate the characteristics of an on-grid system, it is useful to compare it with its counterpart: the off-grid system. The choice between them is determined entirely by the user’s location, needs, and goals.

On-Grid Solar: A Cost-Benefit Analysis

The choice of whether to install an on-grid solar system is a financial choice. A sufficient cost-benefit analysis shows that it is a good long-term investment. The initial cost or capital expenditure is the first and most critical financial barrier. By the end of 2025, the average price of a professionally installed residential on-grid system in the U.S. will be between $2.80 and $3.50 per watt. This would amount to a starting cost of about 22,400 to 28,000 dollars in a typical 8-kilowatt (kW) system. This includes the cost of all equipment- panels, inverter, racking, and safety equipment, and the cost of installation and permitting charges.

However, this initial investment is immediately paid back through the tax credits and rebates that are available, and then the outlay can be reduced significantly. The largest is the federal investment Tax Credit (ITC) that enables homeowners to deduct 30 percent of the total system cost on their federal tax bill. This is a direct reduction of $7.500 on a system of $25,000.

These are diverse in the case of state and local programs. Indicatively, there are Texas cities that have direct rebates of thousands of dollars. Other states, such as Massachusetts, have performance-based schemes that compensate system owners on the energy they produce, which provides a long-term revenue stream.

The payback period, which is the time it takes the energy savings to offset the net cost of the system, is usually 7-12 years after the application of incentives. The electricity produced after this duration is a pure financial return. The success of this return is, however, solely dependent on how reliable the system is. A system that does not work will not bring its estimated savings. BENY has over thirty years of electrical engineering experience and a record of over two million installations, which have proven to be certified and of high quality to ensure the financial performance of your investment throughout the entire life of operation.

5-Step Action Plan For On-Grid Solar System Installation

When one is undertaking a solar installation project, it should be done in a systematic way. An effective project has a five-step process that is clear and starts with the initial idea and ends with the final operation.

1. Define the Scope: The initial step is to determine what you need. This includes looking at previous electricity bills to know your average usage and setting the objectives of the project, whether it is to offset some percentage of your usage or to make the most of your available roof space.
2. Carry out a Technical Assessment: An extensive analysis of the place of installation is needed. This involves evaluating the structural integrity, age, and orientation of the roof and also determining any shading problem that may be caused by trees or other structures. The site survey will be carried out by a professional installer.
3. Choose Technology and Reliable Partners: According to the analysis, the right technology may be chosen. This involves the selection of the kind of panels and, most importantly, the inverter technology (string vs. microinverters). It is also necessary to choose a well-known, certified installation company and make sure that they work with high-quality components of proven manufacturers.
4. Complete the Design: The installer will develop a final system design, including the panel layout, electrical wiring diagram, and a full list of equipment. A final quote, complete costs, warranties, and performance estimates are given at this point, and a contract is signed.
5. Execute and Commission: This is the last stage that entails the actual installation of the system, and this usually takes a couple of days. Once installed, the local building authority and the utility company inspect the system and then authorize it to be operational or commissioned.

Final Verdict: Why an On-Grid System is More Than Just Green Energy

The body of evidence is clear. Although the environmental advantages of producing clean electricity are high, there is now a strong economic and strategic rationale behind the decision to invest in an on-grid solar system. It is a direct and efficient way of managing long-term energy spending, protecting property against the vagaries of utility rate increases, and providing physical value to the property itself.

The contemporary on-grid system, constructed using the latest, efficient, and highly safe parts, is a stable and trustworthy element of individual infrastructure. It is a calculated investment in financial stability and energy resilience. To the astute property owner, it is not whether solar is a feasible alternative, but rather how soon it can be installed. An on-grid solar system is, simply put, one of the smartest, economically viable choices that a property owner can ever make these days.
