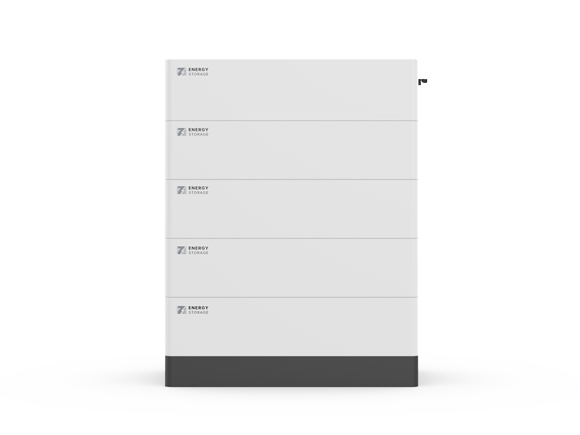

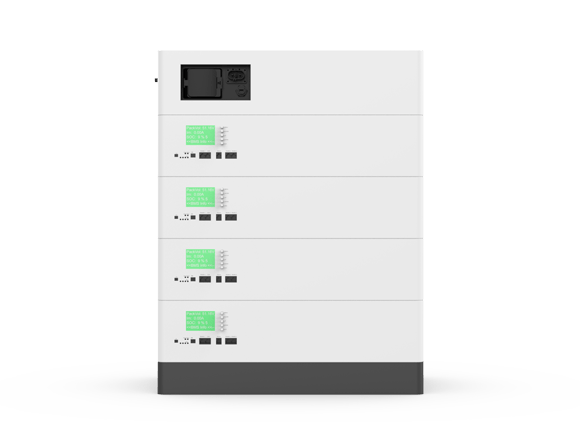

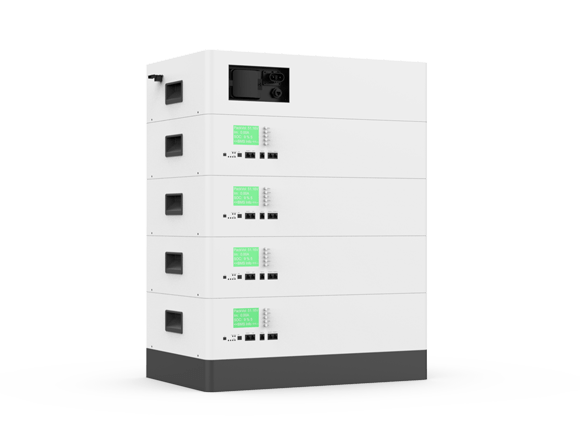

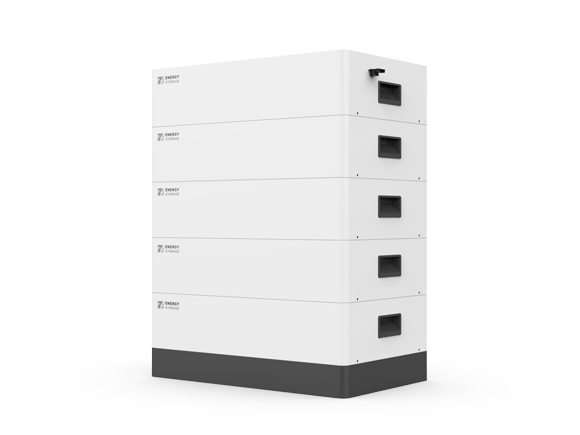

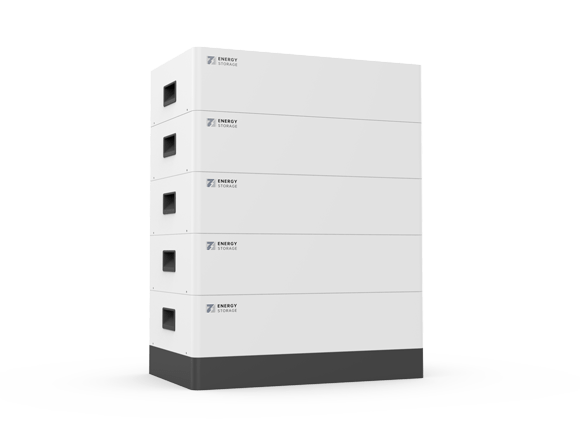

Stacked LFP Energy Storage Battery Pack

The residential LFP energy storage pack was independently designed and developed by BENY. Widely used in the energy storage field with on-grid inverters, off-grid inverters, and hybrid inverters.

Highlights :

  • Stacked
  • 50AH/ 100AH
  • LFP Battery
  • Discharging Temperature: -20℃~ 60℃
  • IP54
  • CE-Certified icon
  • CB icon
  • rohs

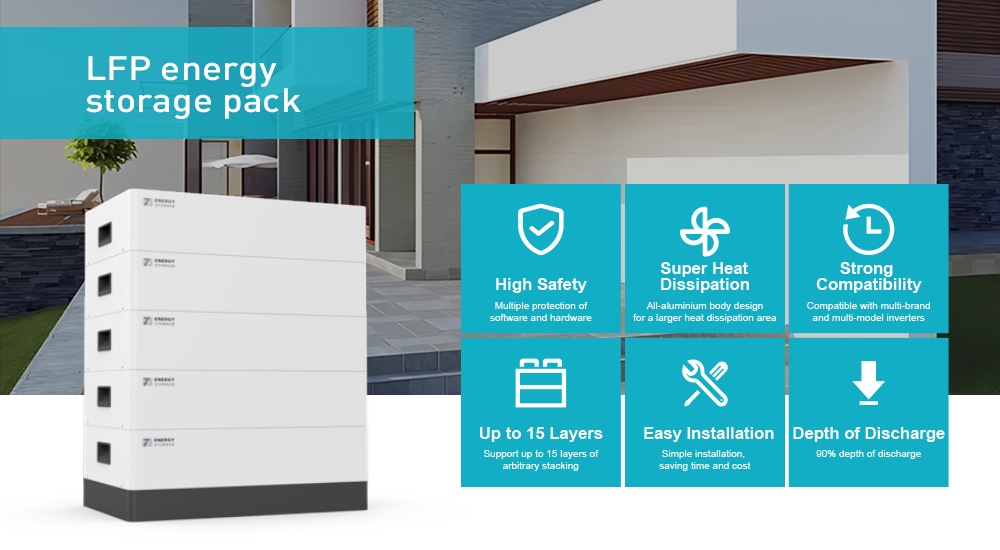

  • stacked energy storage未标题 1 0010 50AH堆叠式5

Stacked Residential LFP Energy Storage Pack

BENY residential LFP energy storage pack has the characteristics of safety and reliability, multiple protection of software and hardware, long service life, convenient capacity increase, beautiful appearance, simple installation, etc. Supporting off-grid inverters and hybrid inverters, widely used in the energy storage field.



With an intelligent Battery Management System (BMS), achieve advanced monitoring and management.

Low power consumption mode / Overcharge Protection / Over-discharge protection / Over current protection / Temp. protection / Balancing function / Floating charge function

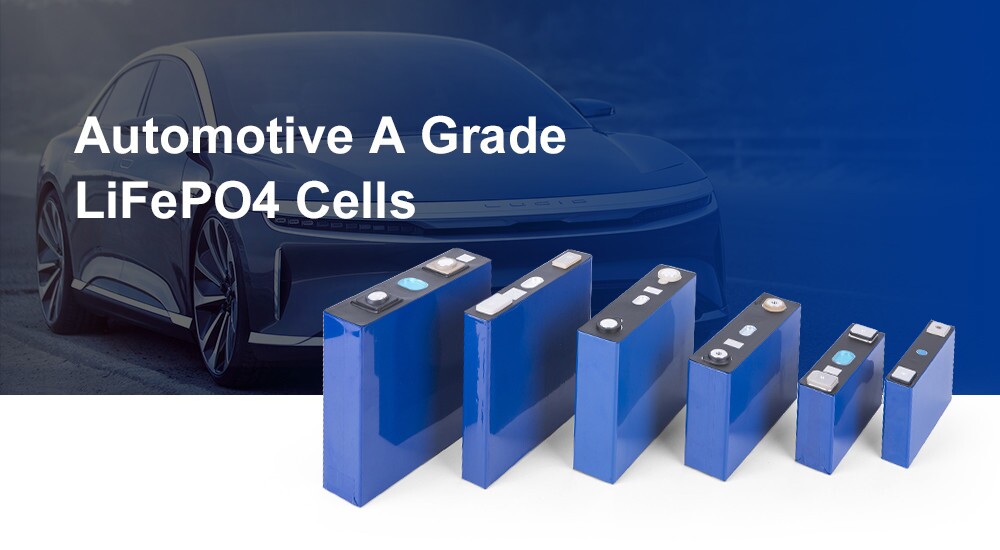

  • LFP cell 1000x550 6 2
  • stacked energy storage未标题 1 0010 50AH堆叠式4

High Safety and Super Heat Dissipation

Our energy storage battery packs use automotive A grade LiFePO4 cells for greater safety and longer battery cycle life, up to 5000 cycles at 80% DOD.  All-aluminium body design ensures a larger heat dissipation area.

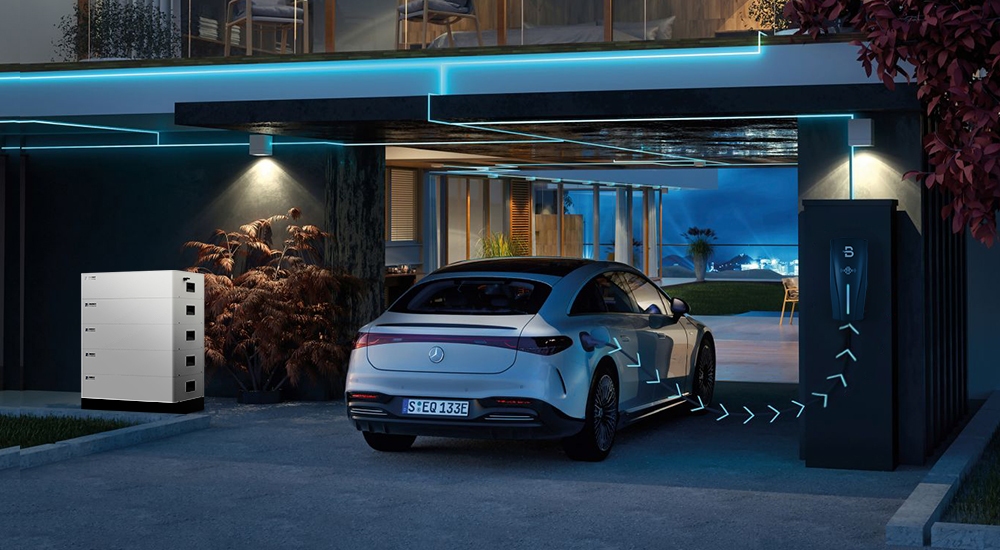

BENY Solar PV, Energy Storage, and EV Charging Solution

  • 1000X550 4 3

Perfectly compatible with BENY EV charger and photovoltaic protection products, to achieve a perfect household solar PV, energy storage, and charging integrated solution. No need to worry about fluctuations in electricity prices, bring you a cleaner and more environmentally friendly life.

  • Compatible with most brand and model inverters
  • Multiple protection of software and hardware
  • Simple installation, saving time and cost
  • Large heat dissipation area

SPECIFICATION

Items Condition Specification
Model / BYES-2500 BYES-5000
Nominal energy /kWh Nominal value 2.56 5.12
Nominal voltage /V Nominal value 48 48
Nominal capacity/Ah Nominal value 50 100
Internal impedance Fresh cell ≤80 ≤30
mmSize /mm L*W*H 525*306*178 694*358*178
Weight /kg / 28 44
Operating voltage /V / 44.8-57.6
Standard charging and discharging current / 0.25C/0.5C
Maximum charging and discharging current / 0.5C/1C
Charging temperature /℃ / 0℃~ 60
Discharging temperature /℃ / -20℃~ 60
Storage temperature /℃ / 0~35
Recommended DOD / ≤98%
Communication function / RS232/RS485/CAN
Protection class / IP54
Shipping SOC / 20%~50%
