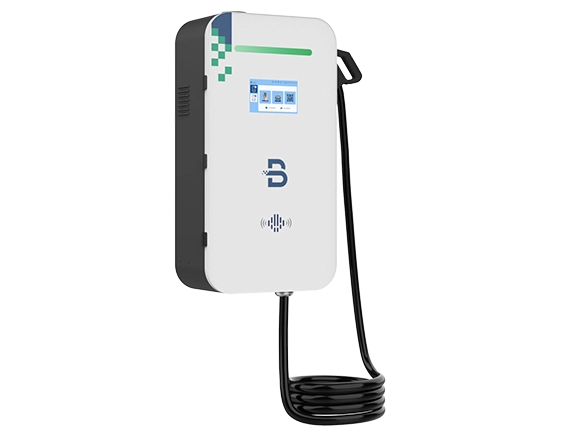

DC EV Charging Station BBDC

BENY EV Charging Station Fast Charging, Time and Power Saving, High Safety

                    Highlights :
                    20kW - 40kW
Single Charging Outlet CCS2
9.1inch LCD Screen
OCPP 1.6
IP55



Download Datasheet Request A Quote

Fast, Efficient and Safe EV Charging Station

BENY DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.

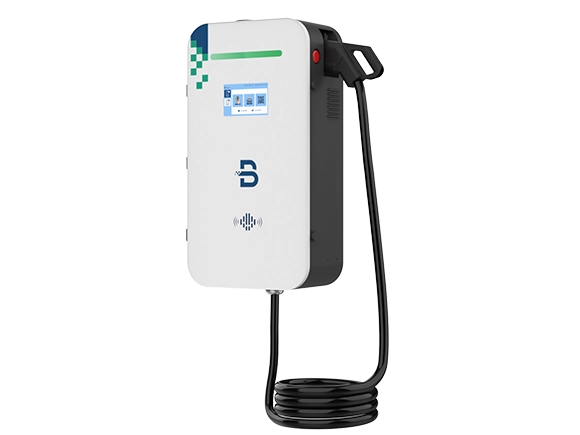

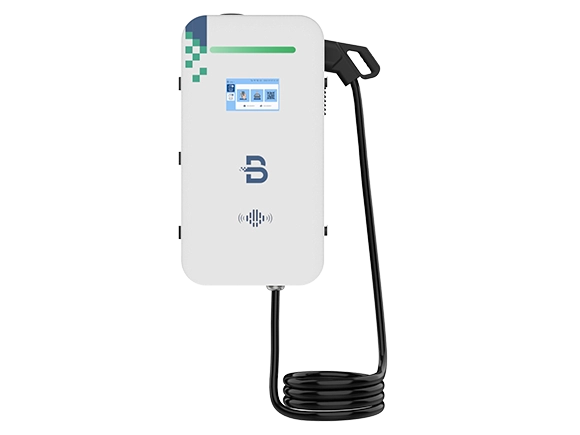

Wall-mounted DC EV Charger has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.

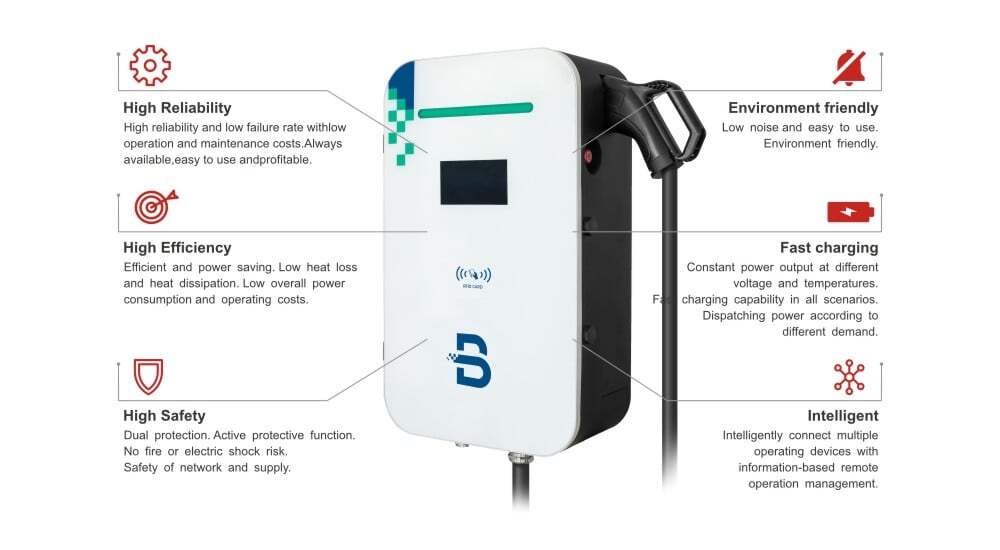

FEATURES/ADVANTAGES

Time and power saving

High safety

Time-saving - Fast charging
Power saving - High conversion efficiency and low standby power consumption
High Safety - Dual protection to both manual operation and vehicles

SPECIFICATION

Structure Descriptio
Shell material	Sheet Meal
Dimension	450250850(LWT)
Weight	≤65kG

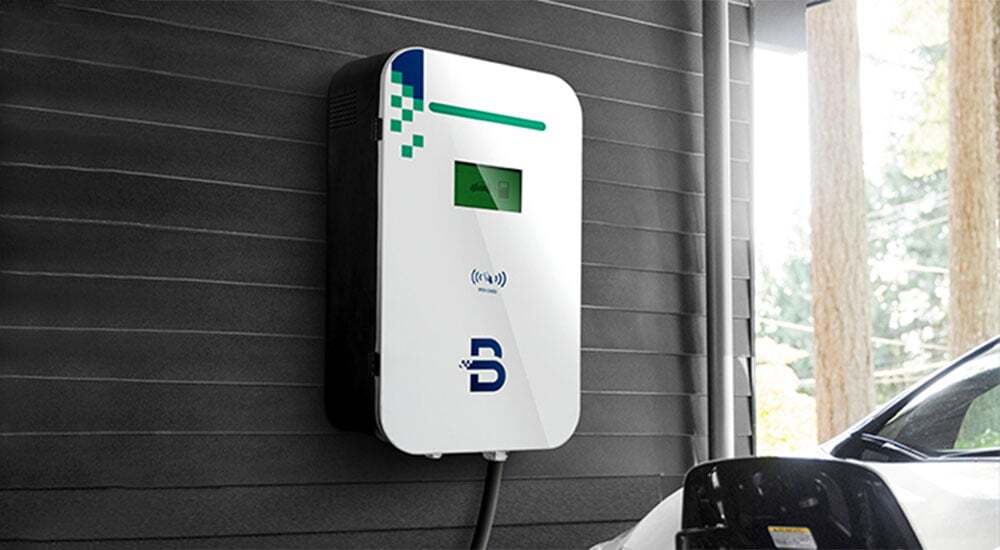

Installation Method	Wall-mounted
Cable routing	Bottom inlet wiring, up outlet wiring
Cable length	5 M
Charging outlets	Single (CCS2/CCS2/GBT)
Connectivity authorization	RFID, App
Screen	9.1inch LCD screen/LED light
Electrical Specification
AC input voltage	AC380V±15% ,3P+N+PEAC
Input frequency	50Hz/60Hz
Rated power	20KW	30KW	40KW
Output voltage range	CCS1/2: 150 Vdc –1000 Vdc
Output current	0~66.7A	0~100A	0~133A
Efficiency	≥95%
Power factor	≥0.99(load:100%)
Functionate design
User Interface	Emergency stop button,LED indicator,card swiping,touch screen
Charging stands	IEC 61851-21-2:2021;IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019;EN 61851-23:2014; EN 61851-24:2014
Communication
OCPP	OCPP 1.6
Network interface	Ethernet/4G
Environment condition
Application place	Indoor/Outdoor
Working latitude	<2000m
Working temperature	-30~ +50
Working humidity	5%~95%
Protection level	IP55
Natural cooling	Forced-air cooling
Warranty	12 months warranty
Security design	Over/under voltage protection,overlord protection,current leakage protection, grounding protection,over temp protection,lightening surge protection
